Home / Electro Voice EKX12PUS EKX-12P Powered 12" 2-Way Speaker

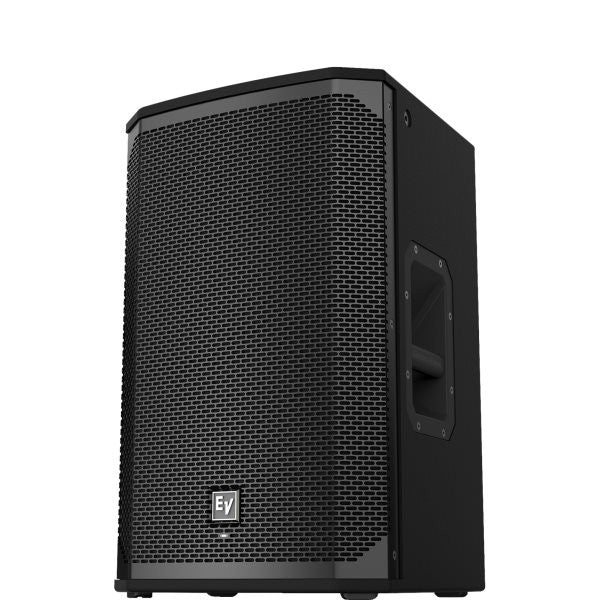

Electro Voice EKX12PUS EKX-12P Powered 12" 2-Way Speaker

Electro Voice EKX12PUS EKX-12P Powered 12" 2-Way Speaker

$1,799.00 $949.00

Features: 12-Inch Two-Way Powered Loudspeaker Features: QuickSmartDSP features best-in-class processing, EVs signature single-knob user interface, and intuitive menu navigation via LCD. High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV. Intelligent thermal management with...

Qty:
Features:

12-Inch Two-Way Powered Loudspeaker

Features:

  • QuickSmartDSP features best-in-class processing, EVs signature single-knob user interface, and intuitive menu navigation via LCD.
  • High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV.
  • Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
  • EV-patented Signal Synchronized TransducersTM (SST) waveguide design provides precise and consistent coverage.
  • Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
    • Specifications:
  • Maximum SPL: 132 dB dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output
  • Power Consumption: 1.8 A Current rating is 1/8 power
  • Power Rating: 1500 W
  • Frequency Response (-3 dB): 60 Hz - 18 kHz Hz Full space measurement using the music DSP preset
  • Frequency Response (-10 dB): 50 Hz - 20 kHz Hz Full space measurement using the music DSP preset
  • Coverage (Nominal -6 dB) H: 90 °¸
  • Coverage (Nominal -6 dB) V: 60 °¸
  • LF Transducer: EVS-12M 300 mm (12 in)
  • HF Transducer: DH-1M 1-inch titanium compression driver
  • Crossover Frequency: 1.7 k Hz
  • Connector Type: (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
  • Enclosure Material: 15 mm, plywood with EVCoat
  • Grill: 18 AWG steel with powdercoat
  • Suspension: (8) M10 threaded mounting points
  • Height: 607 mm (23.9")
  • Width: 375 mm (14.76")
  • Depth: 356 mm (14.02")
  • Weight Net: 18.8 kg (41.45 Lbs.)
  • Shipping Weight: 22.9 kg (50.49 Lbs.)


    • Model: EKX12PUS
    Manufacturer: Electro Voice
