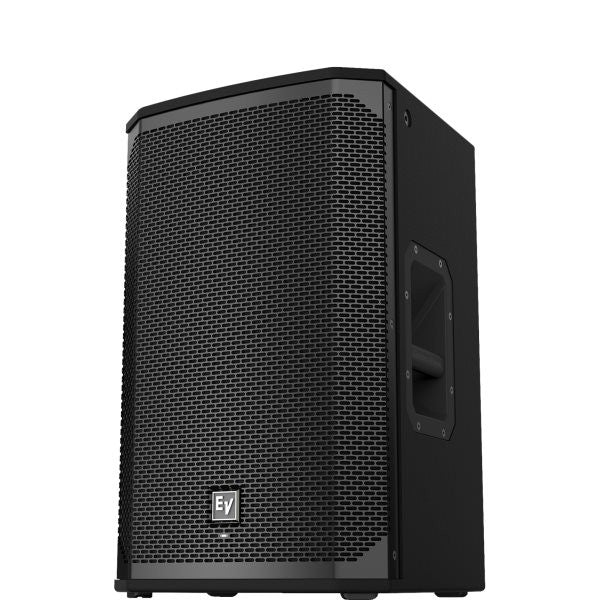

Electro Voice EKX12 EKX-12 Passive 12" 2-Way Speaker

$1,396.00 $699.00

Features: 12-Inch Two Way Passive Loudspeaker Features: EKX-12: 1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV. EV-patented Signal Synchronized TransducersTM (SST) waveguide design provides precise and consistent coverage. Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish. Eight M10 threaded...

Product Description

Features:

12-Inch Two Way Passive Loudspeaker

Features:

EKX-12: 1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.

EV-patented Signal Synchronized Transducers^TM (SST) waveguide design provides precise and consistent coverage.

Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.

Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.

90°¸ x 60°¸ pattern for best coverage on mid-size stages. 40°¸ monitor angle with rubber feet.

Specifications:

Axial Sensitivity (SPL, 1 W @ 1 m): 95 dB

Maximum SPL: 131 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating

Nominal Impedance: 8 O

Power Handling (Continuous / Peak): 350 W/1400 W

Frequency Response (-3 dB): 82 Hz - 18 k Hz Full Space Measurement

Frequency Response (-10 dB): 55 Hz - 20 k Hz Full Space Measurement

Recommended High-Pass Frequency: 55 Hz

Coverage (Nominal -6 dB) H: 90 °¸

LF Transducer: EVS-12M 300 mm (12 in)

HF Transducer: DH-1M 1-inch titanium compression driver

Crossover Frequency: 1.6 k Hz

Minimum Impedance: 7.5 O

Connector Type: Dual NL4

Enclosure Material: 15 mm, plywood with EVCoat

Grill: 18 AWG steel with powdercoat

Suspension: (8) M10 threaded mounting points

Height: 607 mm (23.9")

Width: 375 mm (14.76")

Depth: 356 mm (14.02")

Weight Net: 17.4 kg (38.36 Lbs.)

Shipping Weight: 21.4 kg (47.18 Lbs.)

Model:	EKX12
Manufacturer:	Electro Voice
