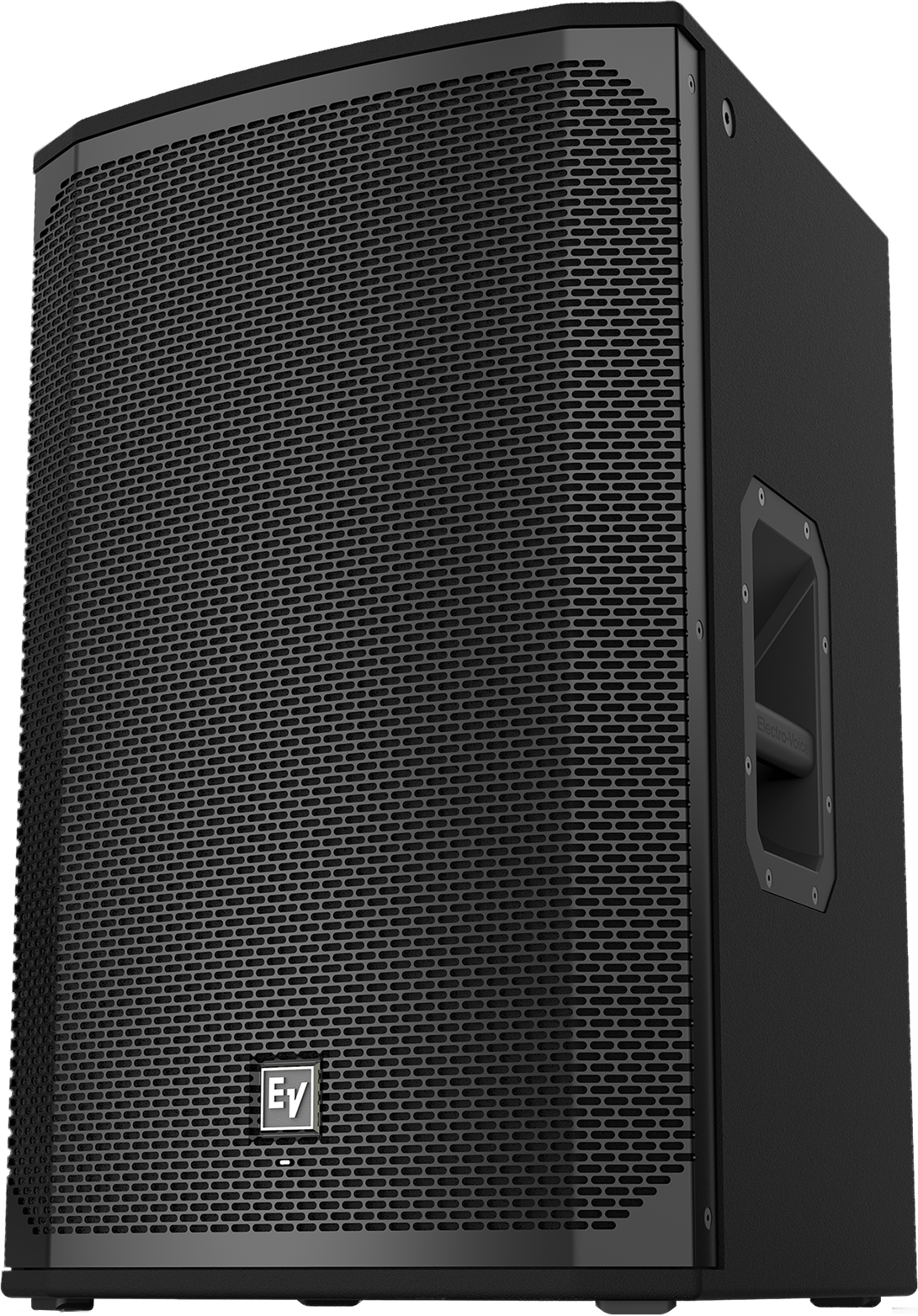

Name: Electro-Voice EKX-15P-US – 15" powered loudspeaker
Brand: Electro-Voice
SKU: EKX-15P-US
Price: 1049.00 USD
Availability: InStock

Electro-Voice EKX-15P-US – 15" powered loudspeaker

$1,049.00

$1,049.00 $1,889.00

Electro-Voice

EKX-15P-US – 15" powered loudspeaker

Overview

15" powered loudspeaker

Highlights

✓QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
✓High-efficiency 1500 W Class D power amplifier delivers up to 134 dB peak SPL on the EKX-15P via high-sensitivity transducers designed and engineered by EV.
✓Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
✓EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
✓Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.

Specifications

Frequency Response (-3 dB)	55 Hz - 18 kHz¹
Frequency Range (-10 dB)	48 Hz - 20 kHz¹
Maximum SPL	134 dB²
Specifications Coverage (H x V)	90" x 60"
Power Rating	1500 W
LF Transducer	EVS-15M 381 mm (15 in)
HF Transducer	DH-1M 1-inch titanium compression driver
Crossover Frequency	1.7 kHz
Connectors	(1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
Enclosure	15 mm plywood with EVCoat
Grille	18 AWG steel with powdercoat
Suspension	(8) M10 threaded mounting points
Dimensions (H x W x D)	685 mm x 432 mm x 429 mm (27 in x 17 in x 17 in)
Net Weight	24.4 kg (53.9 lb)
Shipping Weight	29.5 kg (65.0 lb)
Power Consumption	1.8 A³
