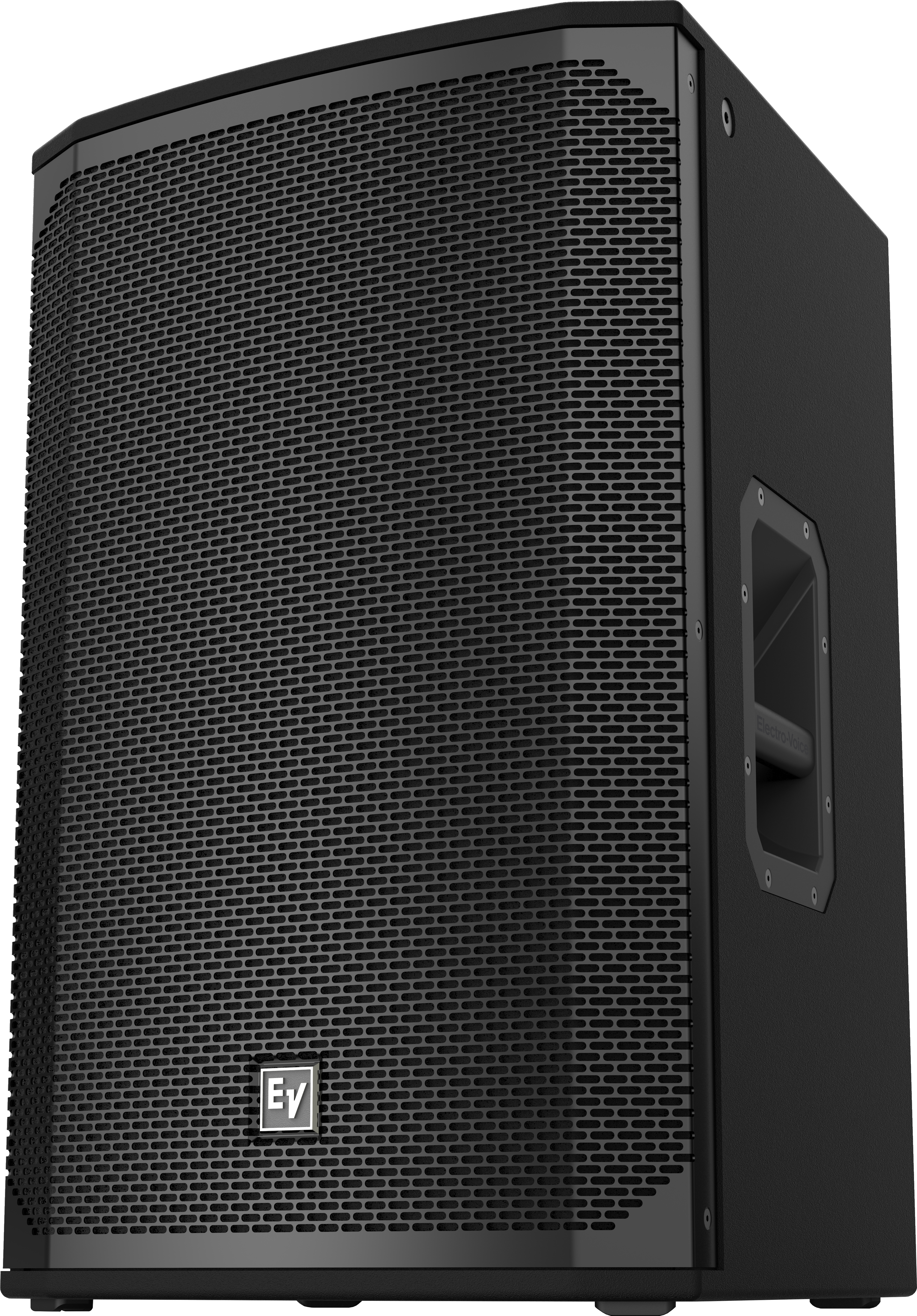

Name: Electro-Voice EKX-15 – 15" passive loudspeaker
Brand: Electro-Voice
SKU: EKX-15
Price: 849.00 USD
Availability: InStock

$849.00 $1,523.00

Electro-Voice

EKX-15 – 15" passive loudspeaker

15" passive loudspeaker

✓EKX-15: 1600 W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
✓EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
✓Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
✓Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
✓90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.

Frequency Range (-10 dB)	50 Hz - 20 k
Suspension	(8) M10 threaded mounting points
Minimum Impedance	7.2
HF Transducer	DH-1M 1-inch titanium compression driver
Speaker Type	Full-Range, two way
Woofer Size	15
Specifications Powered or Passive	Passive
Frequency Response (-3 dB)¹	75 Hz - 18 k
Max. SPL/1m (calc)²	132
Coverage (Nominal -6 dB) H	90
Coverage (Nominal -6 dB) V	60
LF Transducer	EVS-15M 381 mm (15 in)
Power Rating	1600
Crossover Frequency	1.6 k
Connector Type	Dual NL4
Enclosure Material	15 mm, plywood with EVCoat
Grille	18 AWG steel with powdercoat
Height	685
