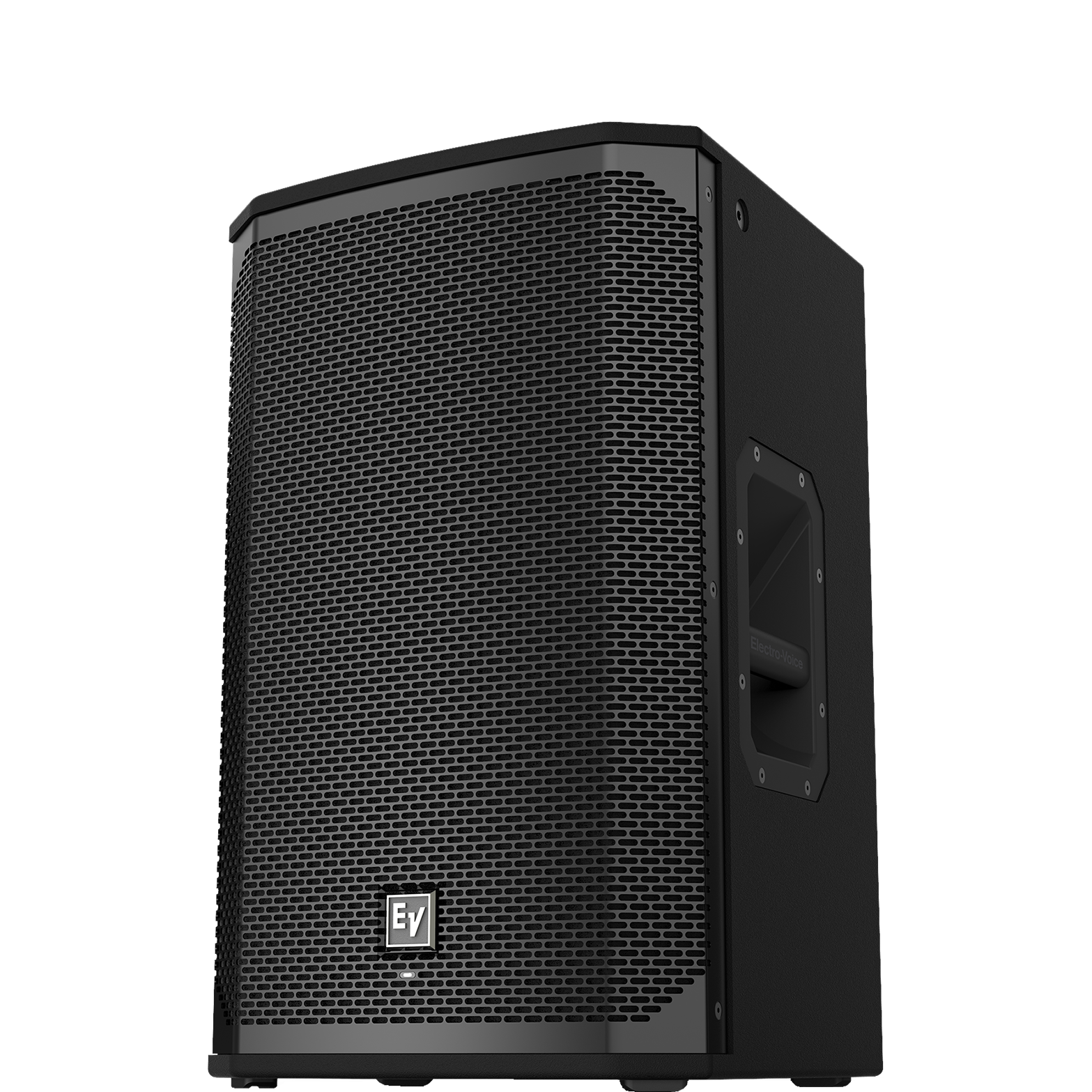

Electro-Voice EKX-12P-US

Electro-Voice EKX-12P-US – 12" powered loudspeaker

$949.00 $1,710.00
Skip to product information
Electro-Voice EKX-12P-US
  • Electro-Voice EKX-12P-US
  • Electro-Voice EKX-12P-US
Electro-Voice EKX-12P-US – 12" powered loudspeaker

Electro-Voice EKX-12P-US – 12" powered loudspeaker

$949.00 $1,710.00

Electro-Voice

EKX-12P-US – 12" powered loudspeaker

Overview

12" powered loudspeaker

Highlights

  • ✓QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
  • ✓High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV.
  • ✓Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
  • ✓EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
  • ✓Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.

Specifications

Frequency Response (-3 dB) 60 Hz - 18 kHz¹
Frequency Range (-10 dB) 50 Hz - 20 kHz¹
Maximum SPL 132 dB²
Specifications Coverage (H x V) 90" x 60"
Power Rating 1500 W
LF Transducer EVS-12M 300 mm (12 in)
HF Transducer DH-1M 1-inch titanium compression driver
Crossover Frequency 1.7 kHz
Connectors (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
Enclosure 15 mm plywood with EVCoat
Grille 18 AWG steel with powdercoat
Suspension (8) M10 threaded mounting points
Dimensions (H x W x D) 607 mm x 375 mm x 356 mm (24 in x 15 in x 14 in)
Net Weight 18.8 kg (41.4 lb)
Shipping Weight 22.9 kg (50.4 lb)
Power Consumption 1.8 A³

Product identifiers

SKU EKX-12P-US
