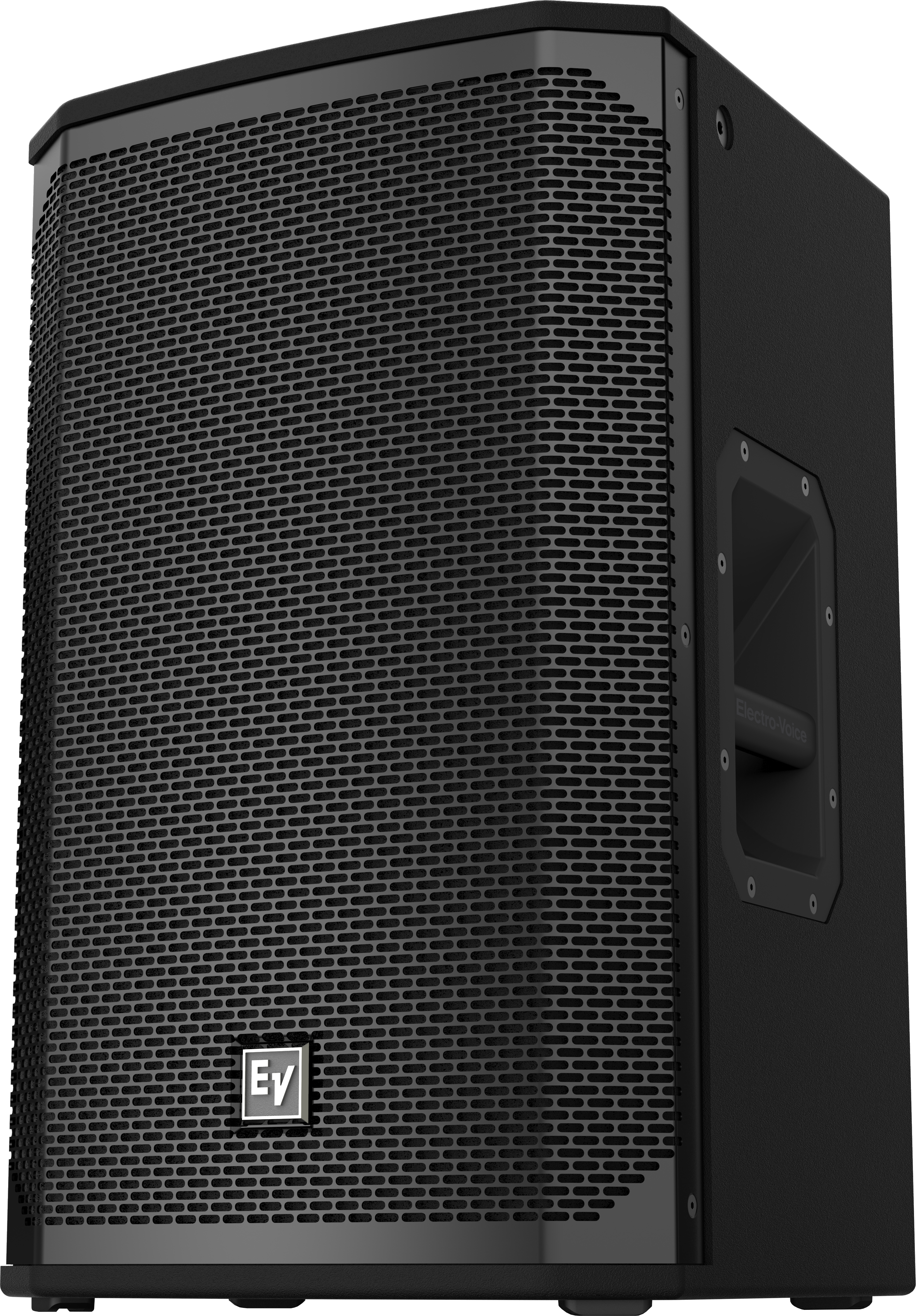

Name: Electro-Voice EKX-12 – 12" passive loudspeaker
Brand: Electro-Voice
SKU: EKX-12
Price: 599.00 USD
Availability: InStock

$599.00 $1,343.00

Electro-Voice

EKX-12 – 12" passive loudspeaker

12" passive loudspeaker

✓EKX-12: 1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
✓EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
✓Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
✓Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
✓90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.

Frequency Range (-10 dB)	55 Hz - 20 k
Suspension	(8) M10 threaded mounting points
Minimum Impedance	7.5
HF Transducer	DH-1M 1-inch titanium compression driver
Speaker Type	Full-Range, two-way
Woofer Size	12
Specifications Powered or Passive	Passive
Frequency Response (-3 dB)¹	82 Hz - 18 k
Max. SPL/1m (calc)²	131
Coverage (Nominal -6 dB) H	90
LF Transducer	EVS-12M 300 mm (12 in)
Power Rating	1400
Crossover Frequency	1.6 k
Connector Type	Dual NL4
Enclosure Material	15 mm, plywood with EVCoat
Grille	18 AWG steel with powdercoat
Height	607
Width	375
