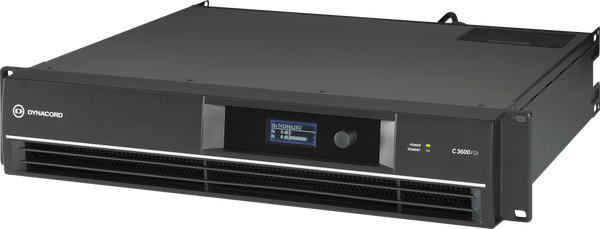

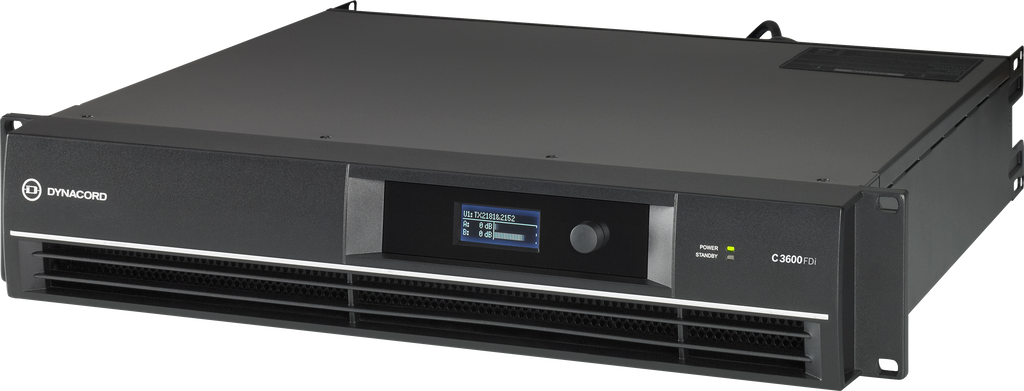

Dynacord C3600FDI (REP SAMPLE)

Dynacord C3600FDI (REP SAMPLE)

$2,059.00 $1,049.99

Used, Rep Sample Like New DSP 2 x 1800 w power amplifier for fixed install applications   Dynacord C Series amplifiers are dedicated installation DSP amplifiers optimized for 24/7 operation. Besides low impedance operation (2 Ohms, 4 Ohms or 8 Ohms) C3600FDi can drive 100 V loudspeaker lines directly (‑1.5...

Qty:

Used, Rep Sample Like New

DSP 2 x 1800 w power amplifier for fixed install applications



Dynacord C Series amplifiers are dedicated installation DSP amplifiers optimized for 24/7 operation. Besides low impedance operation (2 Ohms, 4 Ohms or 8 Ohms) C3600FDi can drive 100 V loudspeaker lines directly (‑1.5 dB) without output transformers. Integrated digital signal procesing provides access to professional speaker processing with FIR Drive technology. C Series amplifier utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of fixed install applications. For low cost of ownership a power saving standby mode is available. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.



Specifications

Load Impedance
2 Ohms
2.7 Ohms
4 Ohms
8 Ohms
Maximum Output Power
Single Channel
2 Ohms: 3200 W
2.7 Ohms: 2700 W
4 Ohms: 1800 W
8 Ohms: 950 W

Dual Channel
2 Ohms: 3000 W
2.7 Ohms: 2500 W
4 Ohms: 1700 W
8 Ohms: 900 W
High-Impedance 70 V: 2 x 1250 W
High-Impedance 100 V: 2 x 2500 W

Bridged
4 Ohms: 6000 W
8 Ohms: 3400 W
Impedance
High-Impedance Operation: 70 V, 100 V
Maximum RMS Voltage Swing
90.6 V
Voltage Gain
32.0 dB (ref 1 kHz)
IMD SMPTE
IMD-SMPTE, 60 Hz, 7 kHz: < 0.1%
DIM 30
< 0.05% (3.15 kHz, 15 kHz)
Maximum Input Level
+21 dBu
Crosstalk
< -80 dB (ref. 1 kHz, at 100 W / 4 Ohms)
Frequency Response
10 Hz to 21 kHz (±1 dB)
Input Impedance
20 kOhms
Signal-to-Noise Ratio (SNR)
> 109 dB (A-weighted)
Output Noise
< -68 dBu (A-weighted)
Total Harmonic Distortion
< 0.05% (at 1200 W / 4 Ohms MBW = 80 kHz, 1 kHz)
Topology
Class-H
Signal Processing
FIR filters
Audio limiters
Output delay per channel
31-band GEQ per channel
PEQ per channel
Load impedance
Protection
Audio limiters
High temperature
DC
HF
Back-EMF
Peak current limiter
Inrush current limiters
Turn on delay
Cooling
Front-to-rear, 3-stage fans
Safety Class
I
Color
Black
Operating Temperature
40 to 105°F / 4 to 41°C
Power
Power Requirement: 120 VAC, 60 Hz
Power Consumption: 850 W (1/8 maximum output power @ 4 Ohms)
Mains Fuse: T30AH
Dimensions
3.5 x 19.0 x 18.2" / 88.9 x 482.6 x 462.3 mm
Weight
40.1 lb / 18.2 kg
