DP-DMX20L

DP-DMX20L

$234.99

$234.99 $293.95

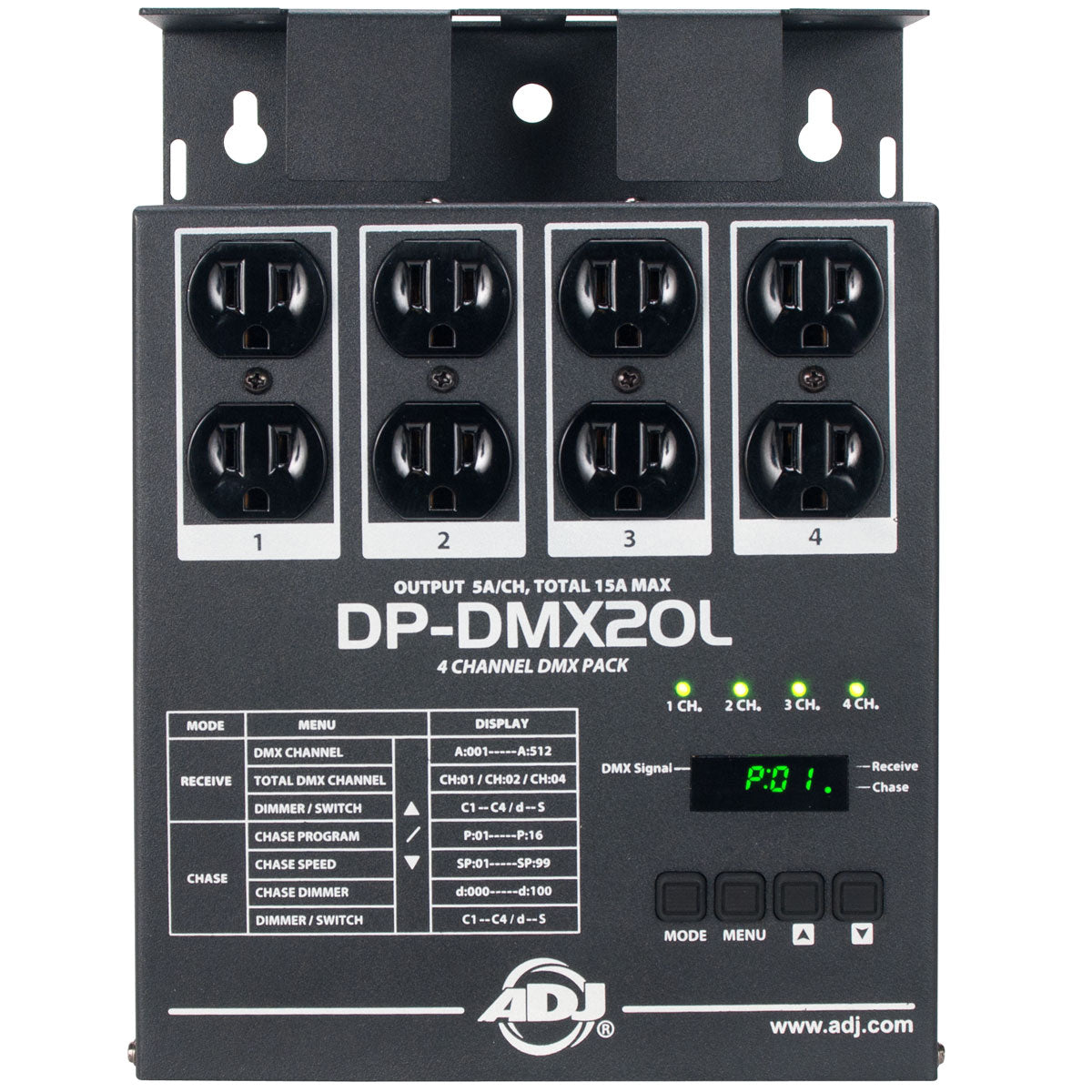

ADJ's DP-DMX20L is a 4 channel universal, portable DMX dimmer/switch pack. That has a selectable 1,2 or 4 channel operation. With dual 3-prong Edison sockets per channel, allowing you to hook up two devices per channel. Also the DP-DMX20L has 4 LED's display for channel activity.

Specifications

4 channel DMX Dimmer Pack

Digital display- used to set starting DMX address channels and set all other menu options

Selectable 1, 2, or 4 channel operation

Adjustable master dim level.

Two three prong Edison sockets per channel

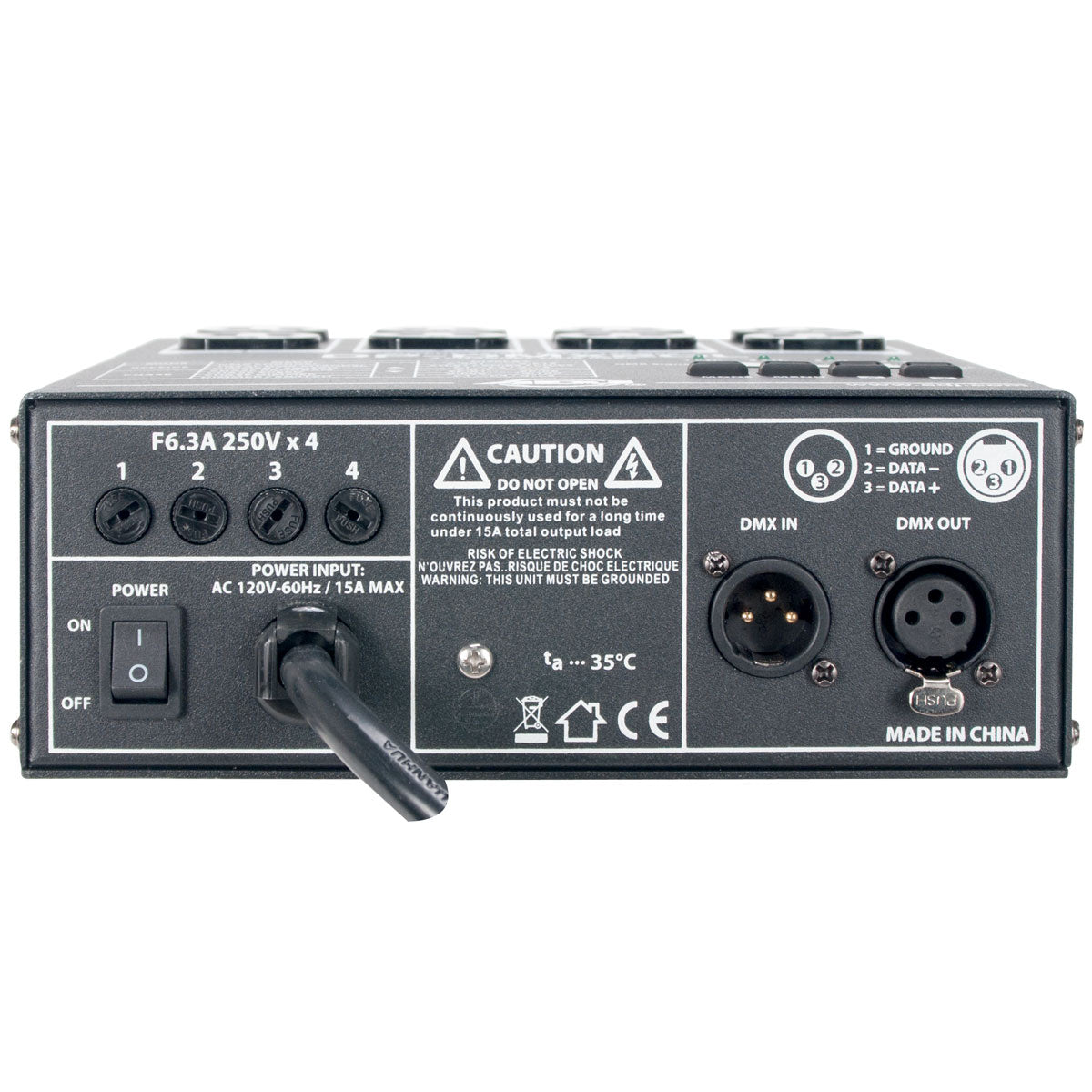

3 pin XLR DMX Input Output

Four LED’s display channel activity

External channel fuses for quick and easy replacement

Sleek reversible mounting panel on the rear

Zero crossing circuitry for protection of transformer loads when switching

16 built in Chases when in Chase mode with adjustable speed setting

Use in conjunction with; DMX Operator Pro, Stage Setter-8, Scene Setter-24 Stage Setter 24

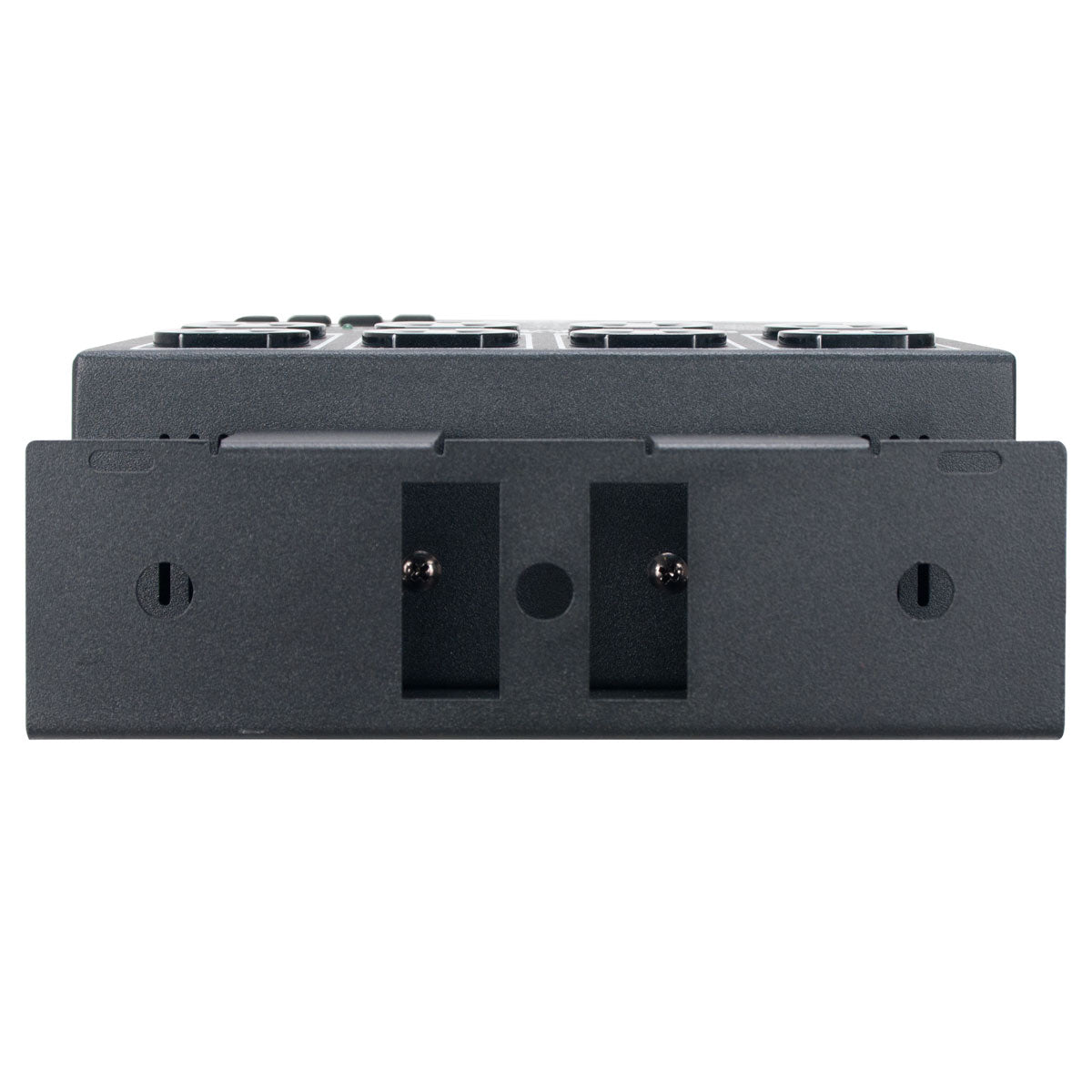

Reversible mounting brackets.

Power Input: 120V ~ 60Hz

Maximum Load: 6.3A per channel / 15A total

Dimensions: 10.25”L x 8.25”W x 3”H

Weight: 6 lbs
