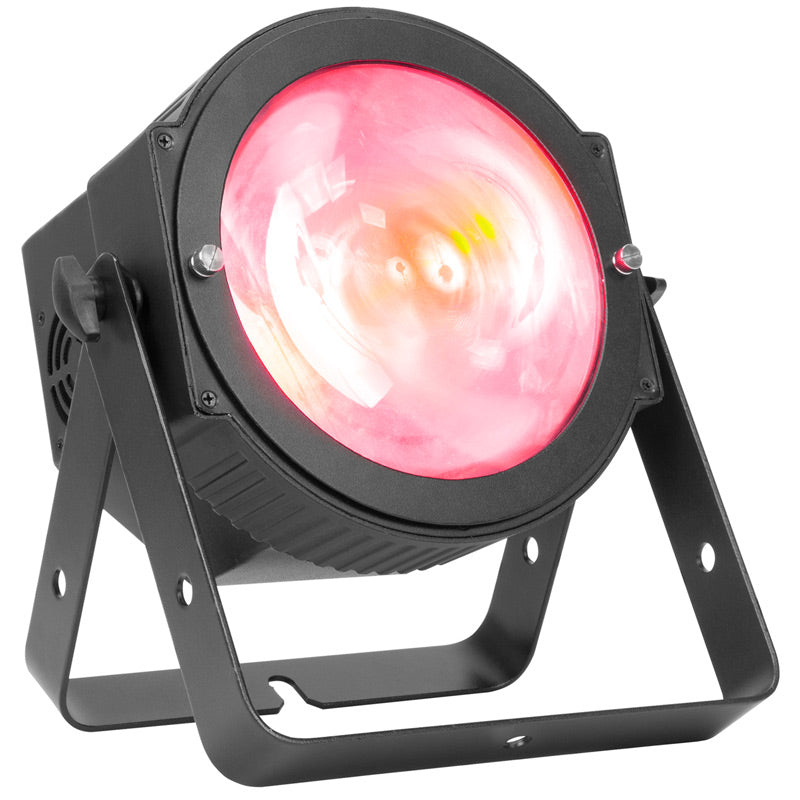

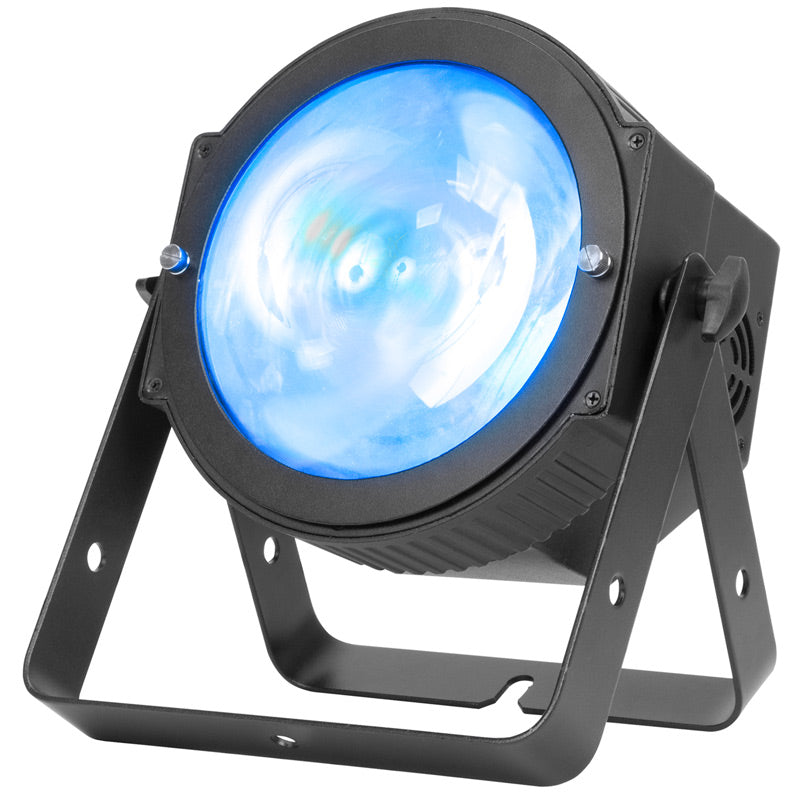

The ADJ Dotz Par 100 uses advanced COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing LED Par with no RGB shadows

Specifications

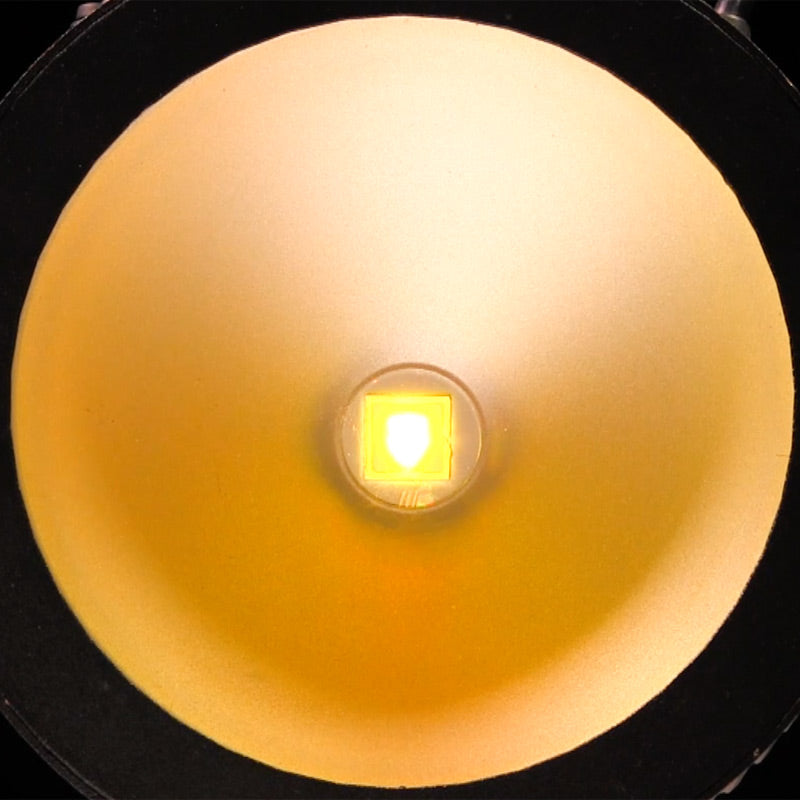

Light Source: 1x 100W COB TRI LED (RGB: 3-IN-1, rated at approximately 50,000 hrs)

COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color

5x Operational modes: Auto Run, Sound Active, Color Macro, Dimmer, and DMX

4 DMX channel modes: 3, 4, 5 or 9 channel

Built-In preset colors and programs / 32 built-in Color Macros

5 selectable Dim Curves (Standard, Stage, TV, Architectural Theatre)

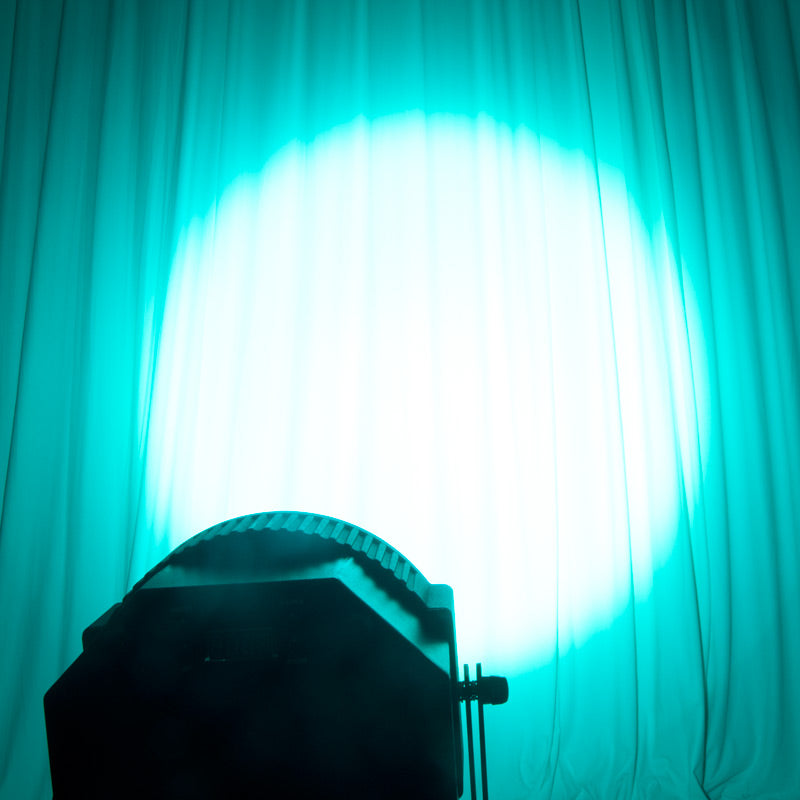

Beam angle: 80-degrees (25-degrees with supplied lens kit)

Light Output: 2521 LUX @2M; 648 LUX @4M (25-degree beam -Lens On), 240 LUX @2M; 56 LUX @4M (80-degree beam - Lens Off)

Refresh Rate: 3.6KHz

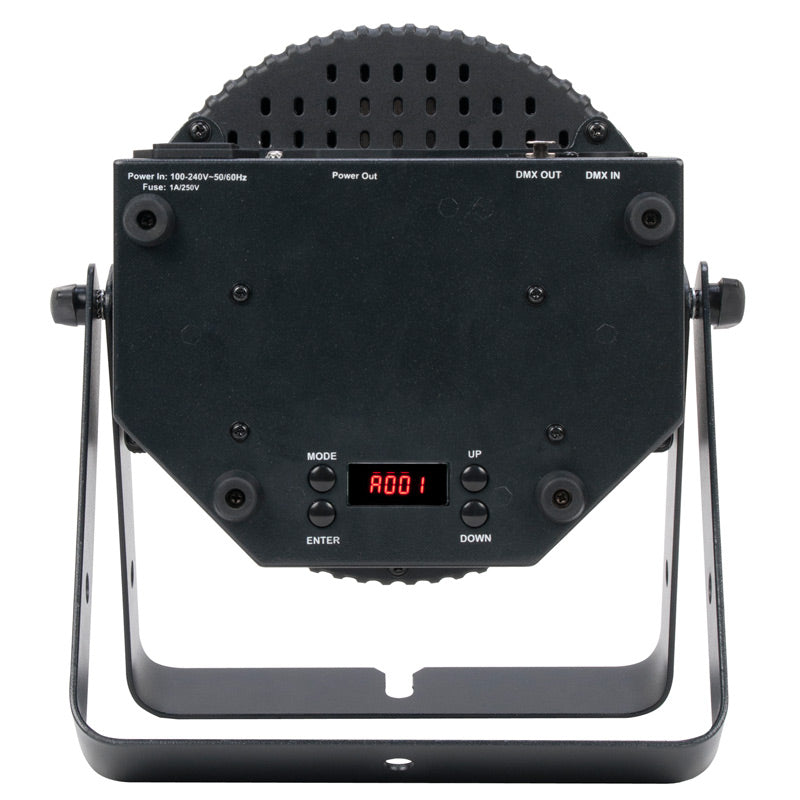

3-pin XLR chassis mount connectors for DMX linking

With Wired Digital Communication Network

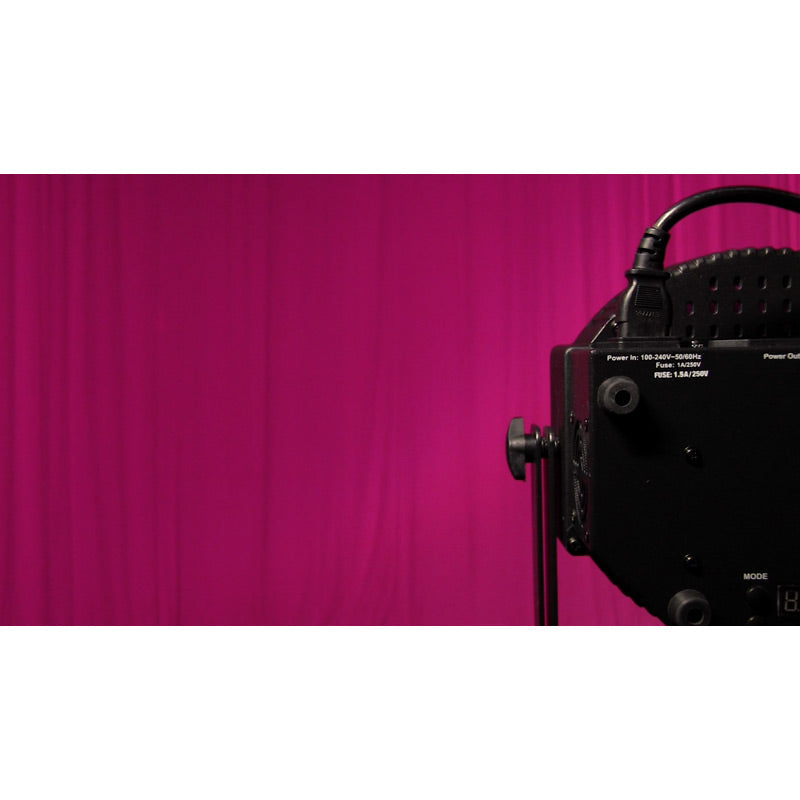

IEC AC IN/OUT to daisy chain power (up to Dotz Par’s @ 110V andDotz Par’s @ 230V)

Power Draw: 100W total (All LEDs @ Full On)

Dimensions With Bracket (LxWxH): 10” x 5.75” x 11”/ 254 x 146 x 280mm

Dimensions Without Bracket (LxWxH): 8” x 5.75” x 8”/ 203 x 146 x 203mm

Weight: 5 lbs. / 2 kgs.

cETLus Approved (Control #4010765)
