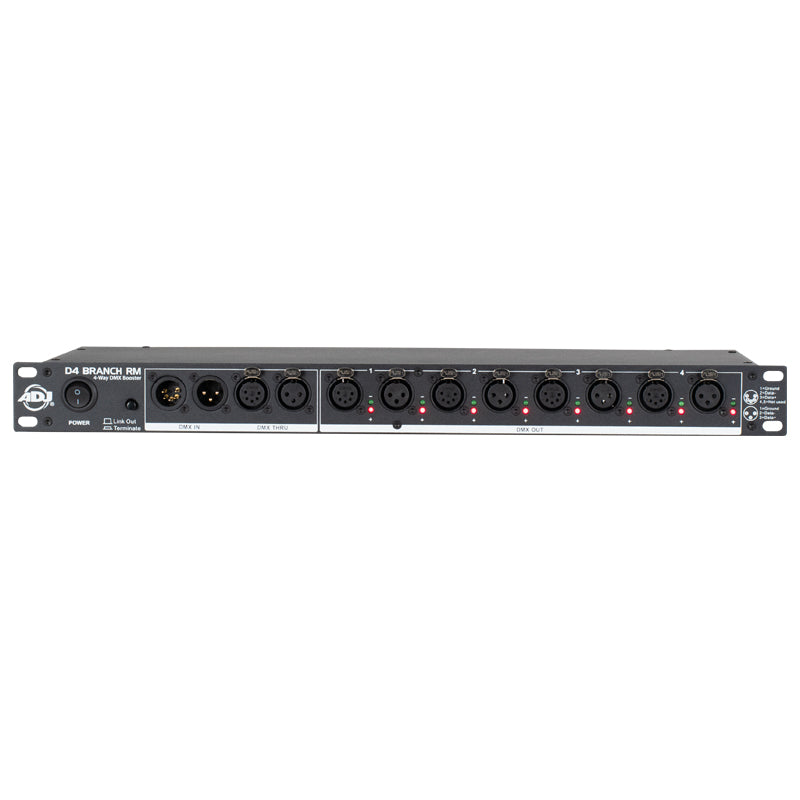

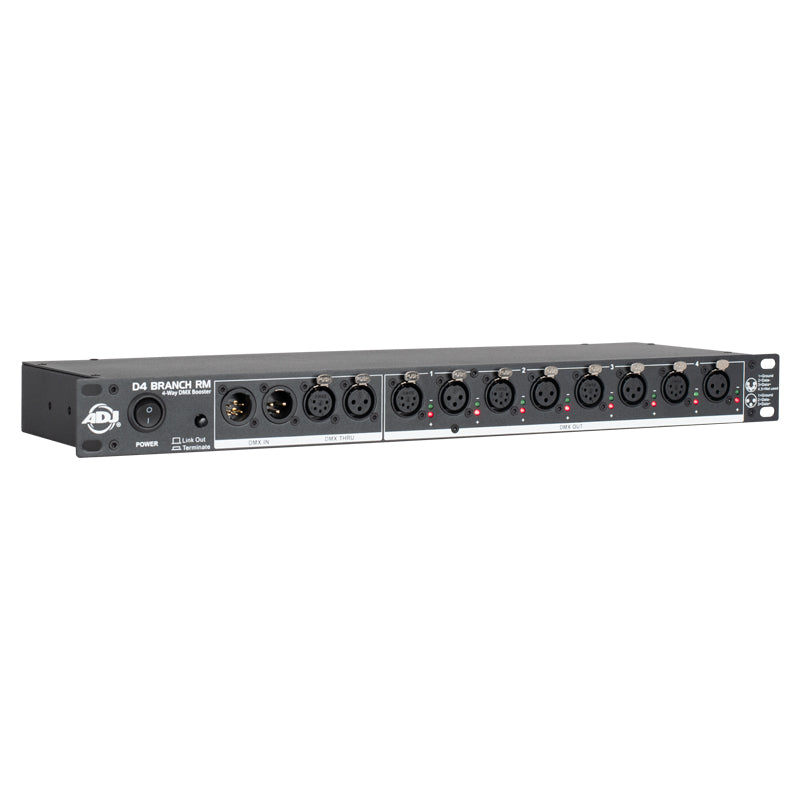

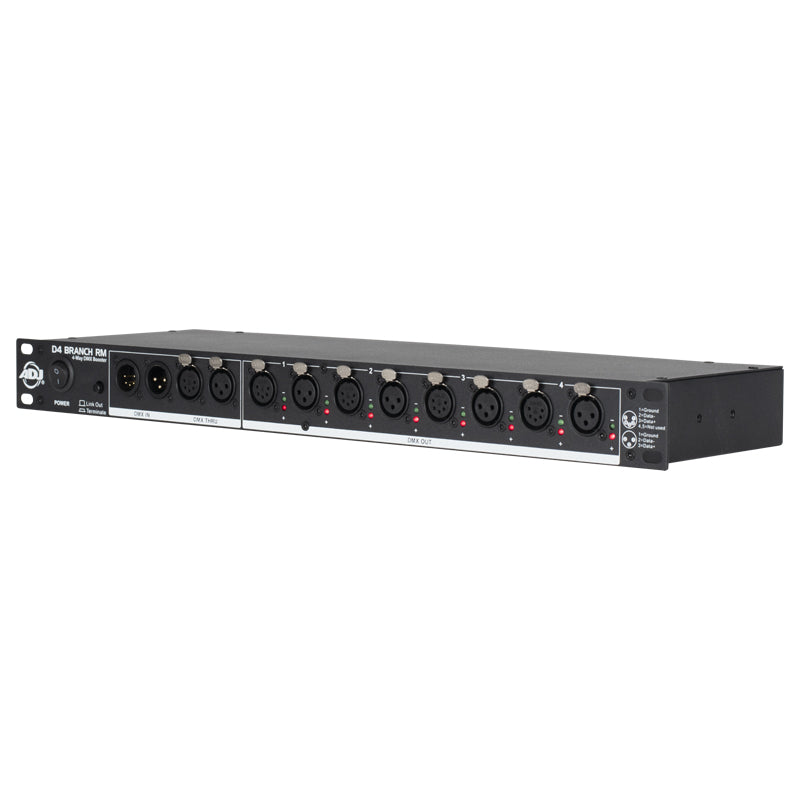

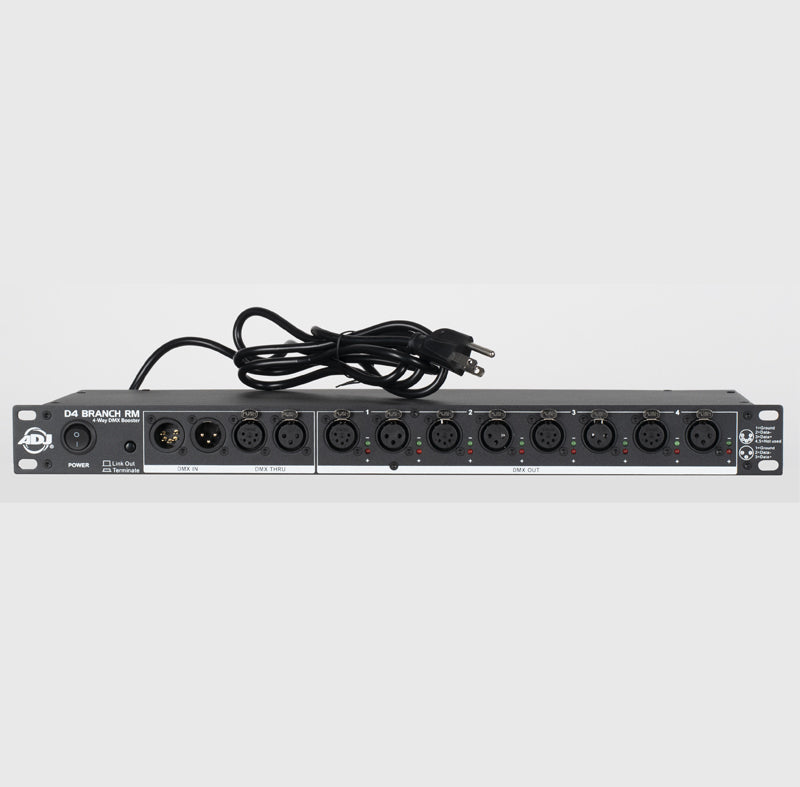

D4 Branch RM

Specifications

FEATURES:

• 4-Way DMX Data Splitter / Fully DMX512 (1990) Compliant
• Built-in signal amplifier boosts the DMX signal for each port
• Link / Terminate Button for Easy Troubleshooting
• DMX Status LED Indicator

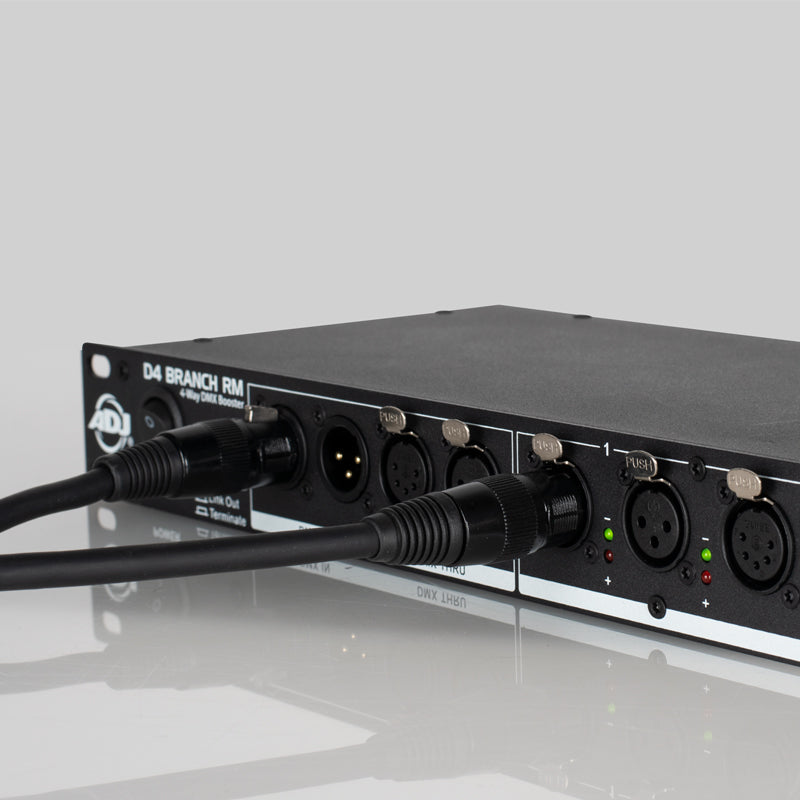

• (1) 3-pin + (1) 5-pin XLR Isolated Inputs
• (1) 3-pin + (1) 5-pin XLR Passive Loop Output
• (4) 3-pin + (4) 5-pin XLR Isolated Outputs

SIZE / WEIGHT:

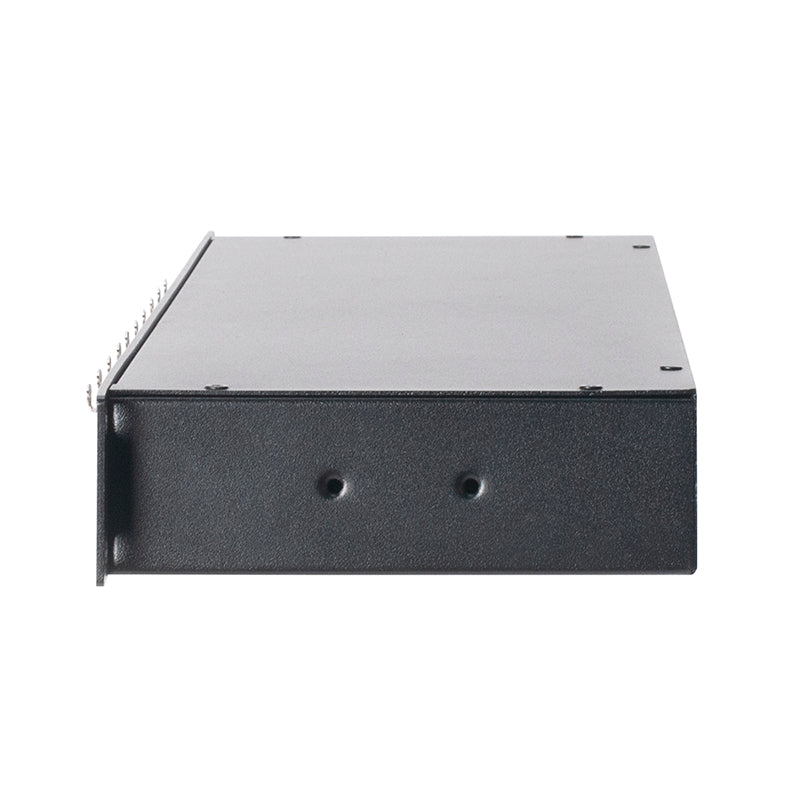

• 19” (482mm) x 5.5” (139.8mm) x 1.7” (44mm)
• 5.3 lbs. (2.4kg)

ELECTRICAL:

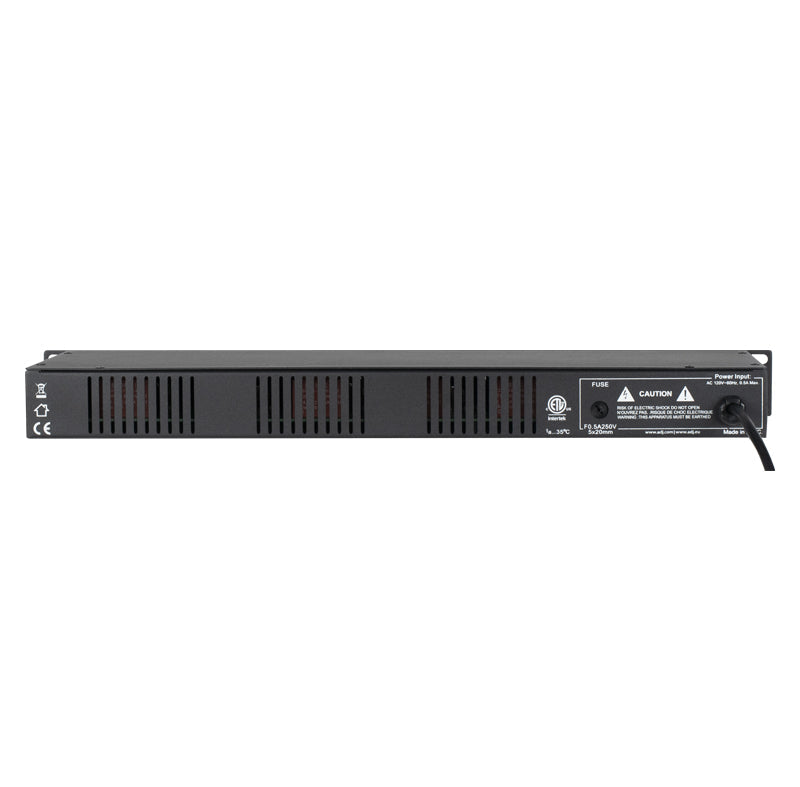

• AC 120V/60Hz (U.S. Only), AC 240V/50Hz (E.U. Only)

APPROVALS:

• cETLus pending
• CE approved
• FCC compliant

Specifications and documentation subject to change without notice.
