Specifications

FEATURES:

• 4-Channel Dimmer/Relay/MIDI Pack
• Individual DMX Address for each Channel
• Selectable Modes (Dimmer or Switch Pack)
• (16) Internal Chase Macros with Fade In/Out
• DMX Fail (loss of signal) Settings: HOLD/OFF/ON
• Power Failure Memory

DIMMER MODE:

• (4) Channel Dimmer (1, 2 or 4 Channel Option)
• Individual Channel Assignment Output Limiter

RELAY MODE:

• 4-Channel Relay (1, 2 or 4 Channel Option)
• Individual Channel Assignment

CHASER MODE:

• 4-Channel Chase Controller
• 16 Internal Chase Programs
• Adjustable Fade Times

MIDI MODE:

• Receives MIDI Notes 001-128 Program
• MIDI In MIDI Through Connections

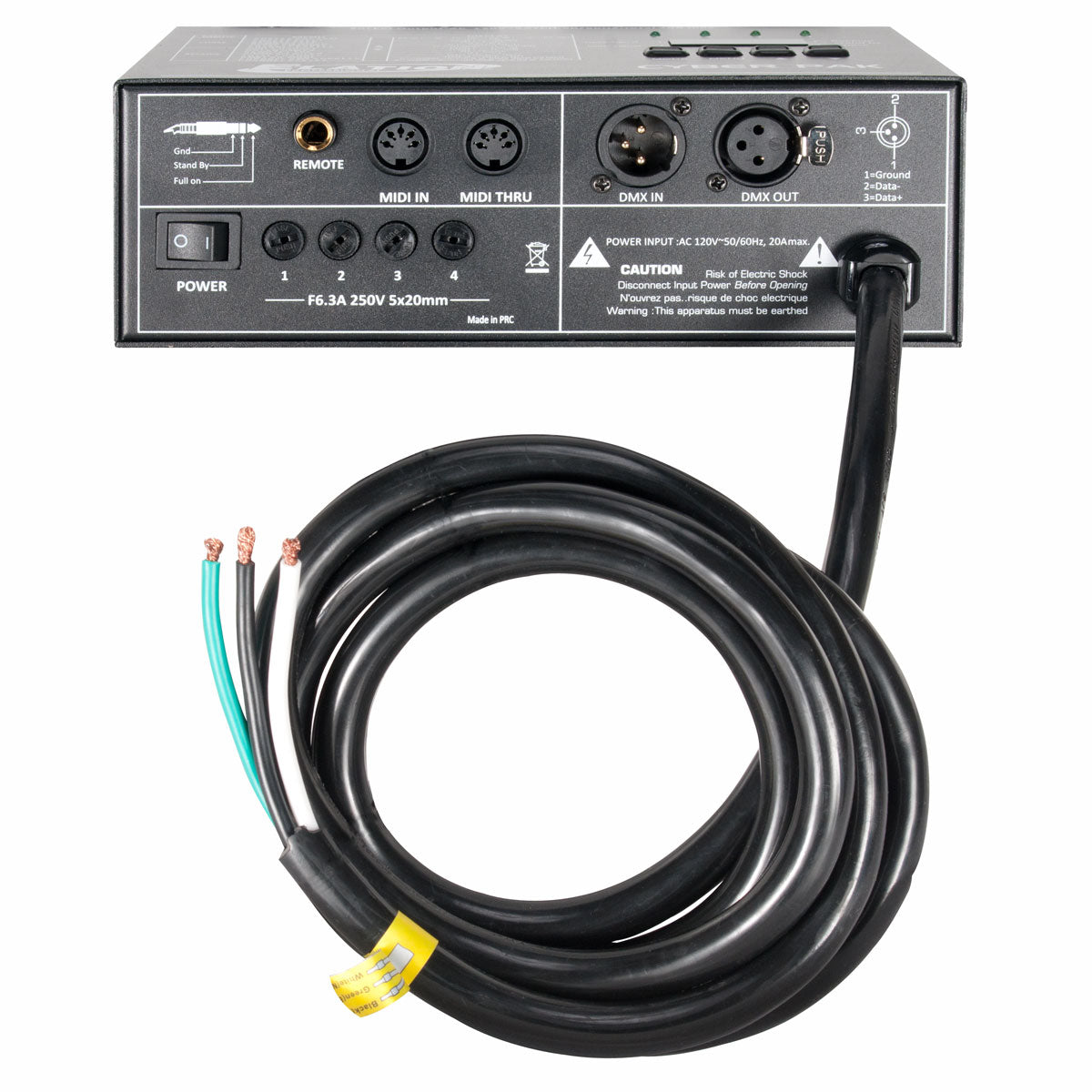

CONTROL / CONNECTIONS:

• Two 3-prong Edison Sockets per Channel (8 total)
• 5-pin MIDI IN/OUT Ports
• -3pin XLR IN/OUT Ports

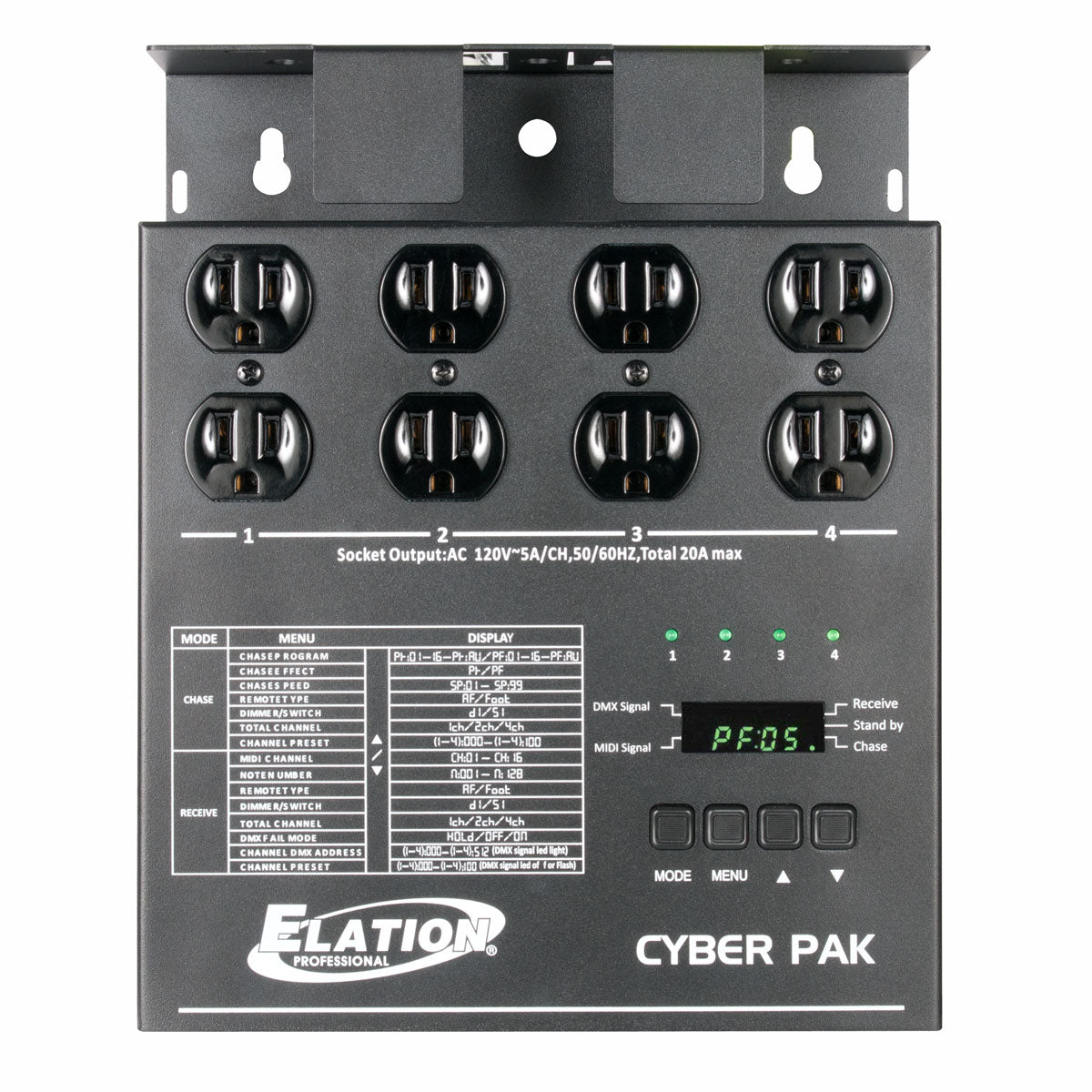

• 4-Button LED Display Control Panel
• Master Power Switch

SIZE / WEIGHT:

• Length: 8.3” (212mm)
• Width: 10.4” (265mm)
• Vertical Height: 3.0” (75mm)
• Weight: 8.0 lbs. (3.6kg)

ELECTRICAL / THERMAL:

• AC 120V 50/60Hz 20A Max
• 2,400W Max Power Consumption (600W per channel)

NOTE: Main Power Cord is Bare Wire, 3-Prong Connector Not Included.

APPROVALS / RATINGS:

• CE | cETLus
