CoDot ILS
4-pack of coin-sized LED illuminators that comes with over 15 accessories (1 carrying case, 8 lenses: 4 clear/4 diffused, 3 short USB-C cables, 3 long…
Product Features
- 4-pack of coin-sized LED illuminators that comes with over 15 accessories (1 carrying case, 8 lenses: 4 clear/4 diffused, 3 short USB-C cables, 3 long USB-C cables, 1 external power supply)

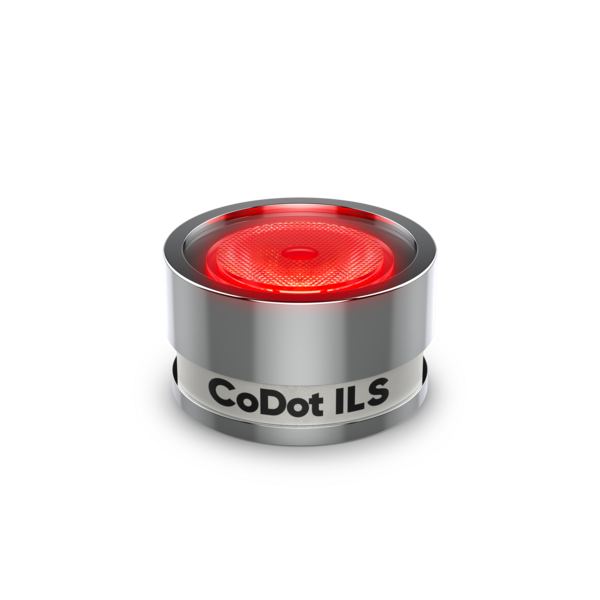

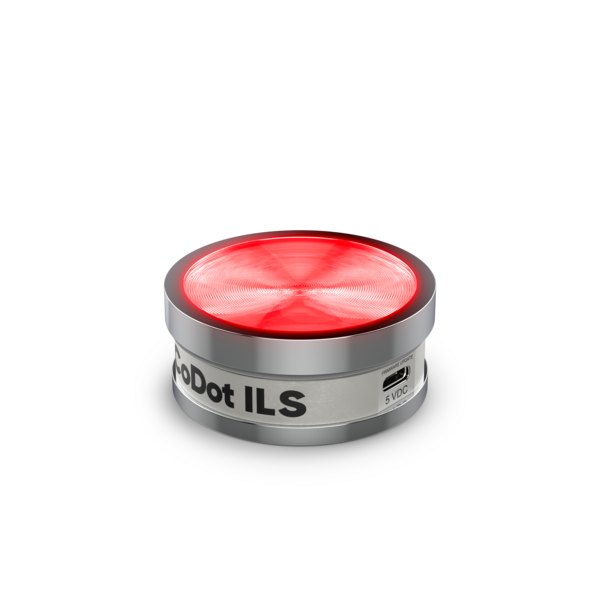

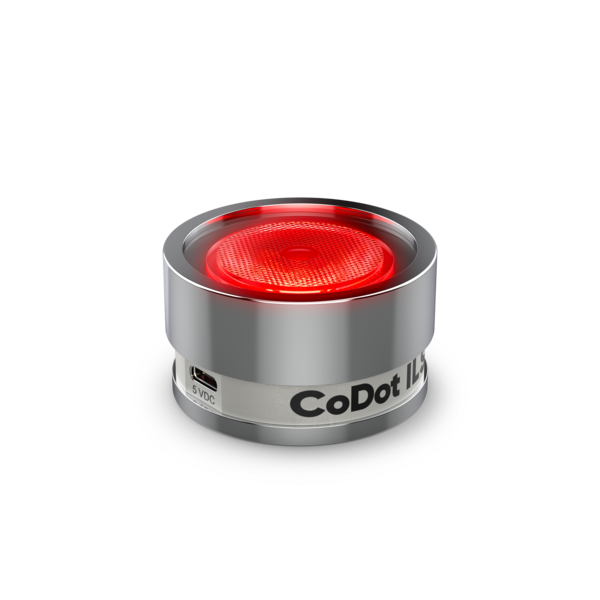

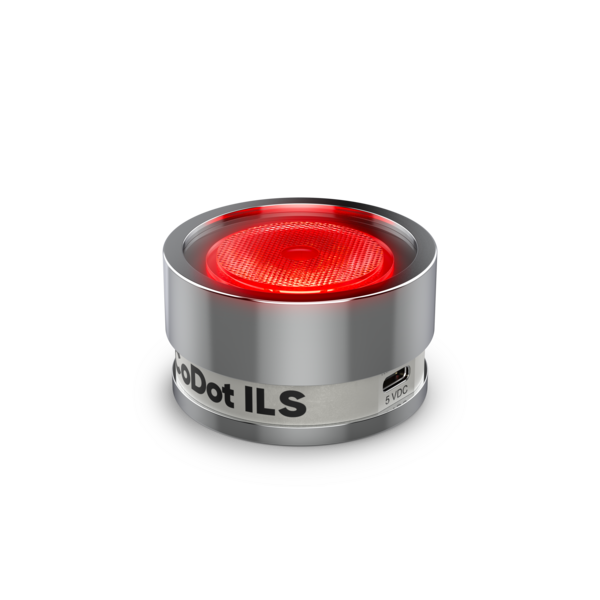

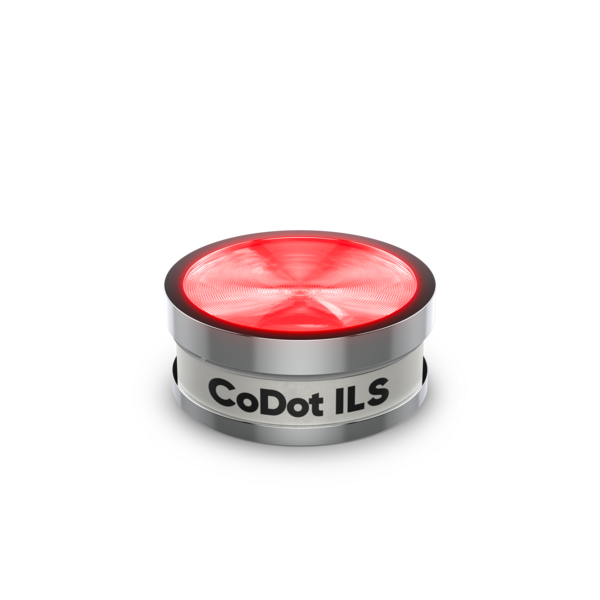

- Coin-sized LED illuminator designed for small applications where conventional fixtures won’t fit
- Includes two lens options to meet different application criteria
- Magnetic base easily mounts to metal surfaces
- Threaded insert is compatible with camera tripods and accessories
- ILS compatibility for use in the ILS ecosystem
- Built-in DFI transceiver communicates DMX or ILS signals wirelessly
- Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
- Easy navigation and access all functions directly from the LED display
- Power linking multiple units from the USB type-C in 4-pack with 2 lens types per unit and out
Specifications
DMX Channels
4 or 6
Light Source
1 LED (quad-color RGBW) 3 W, (0.8 A), 50,000 hours life expectancy
Strobe Rate
0 to 20 Hz
Beam Angle (installed lens)
19°
Beam Angle (included lens)
14°
Illuminance (installed lens)
256 lux @ 2 m
Illuminance (included Lens)
442 lux @ 2 m
Max Unobstructed Distance
600 ft (183 m)
Operating Frequency
2.4 GHz
Power Linking
4 units @ 120 V; 4 units @ 230 V
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current
7 W, 0.1 A @ 120 V, 60 Hz
Power and Current
7 W, 0.1 A @ 230 V, 50 Hz
Weight
0.2 lb (0.1 kg)
Size
2.2 x 2.1 x 0.9 in (57 x 54 x 24 mm)
Optional Controllers
ILS Command, RFC, RFC-XL
Approvals
CE, ROHS, UKCA, FCC
