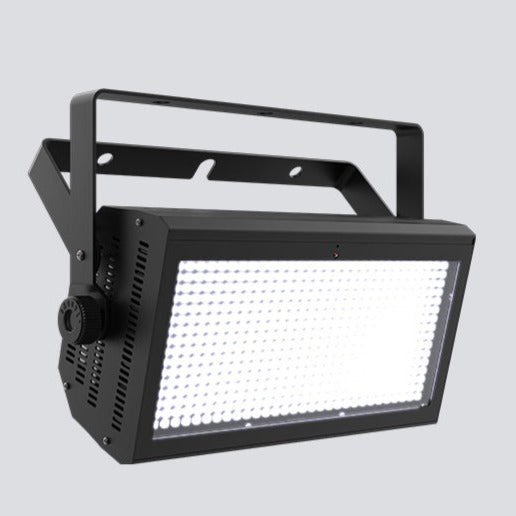

Chauvet DJ Shocker Panel 480
Bring excitement to your celebration with the Shocker Panel 480, a single-zone blinder featuring bright white SMD LEDs. This device can help you easily create visually stunning effects via its built-in display, DMX, or the optional IRC6 remote. Designed with a robust housing, the Shocker Panel 480 is perfect for...
Bring excitement to your celebration with the Shocker Panel 480, a single-zone blinder featuring bright white SMD LEDs. This device can help you easily create visually stunning effects via its built-in display, DMX, or the optional IRC6 remote. Designed with a robust housing, the Shocker Panel 480 is perfect for mobile use and features powerCON®-compatible input/output connections for dependable power linking.
Highlights
-
Punchy, single-zone blinder with cool white SMD LEDs
-
Rugged housing makes it ideal for mobile applications
-
Trigger eye-catching strobe effects via the built-in display, DMX, or with the optional IRC6 remote
-
powerCON®-compatible power input/output connections for power linking
-
Save time running cables and extension cords by power linking multiple units
-
Easily transports in the optional CHS-25 VIP gear bag
Specifications
- DMX Channels:4
- DMX Connectors:3-pin XLR
- Light Source:480 SMD LEDs (cool white) 0.7 W (236 mA), 50,000 hours life expectancy
- Strobe Rate:0 to 28 Hz
- Beam Angle:111°
- Field Angle:155°
- Illuminance:1,348 lux @ 2 m
- Lumens:14,974
- Power Linking:5 units @ 120 V; 9 units @ 230 V
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
- Weight:9.4 lb (4.3 kg)
- Size:13.1 x 4.5 x 6.7 in (332 x 115 x 170 mm)
- Power and Current: : 208 W, 2.7 A @ 120 V, 60 Hz
- Power and Current: : 200 W, 1.5 A @ 230 V, 50 Hz
- Bracket Mounting Hole: : 13 mm
- Optional Controllers: : IRC6
- Approvals: : CE, UKCA
WHAT'S INCLUDED
- Shocker Panel 480
- Power cord
- Quick Reference Guide
