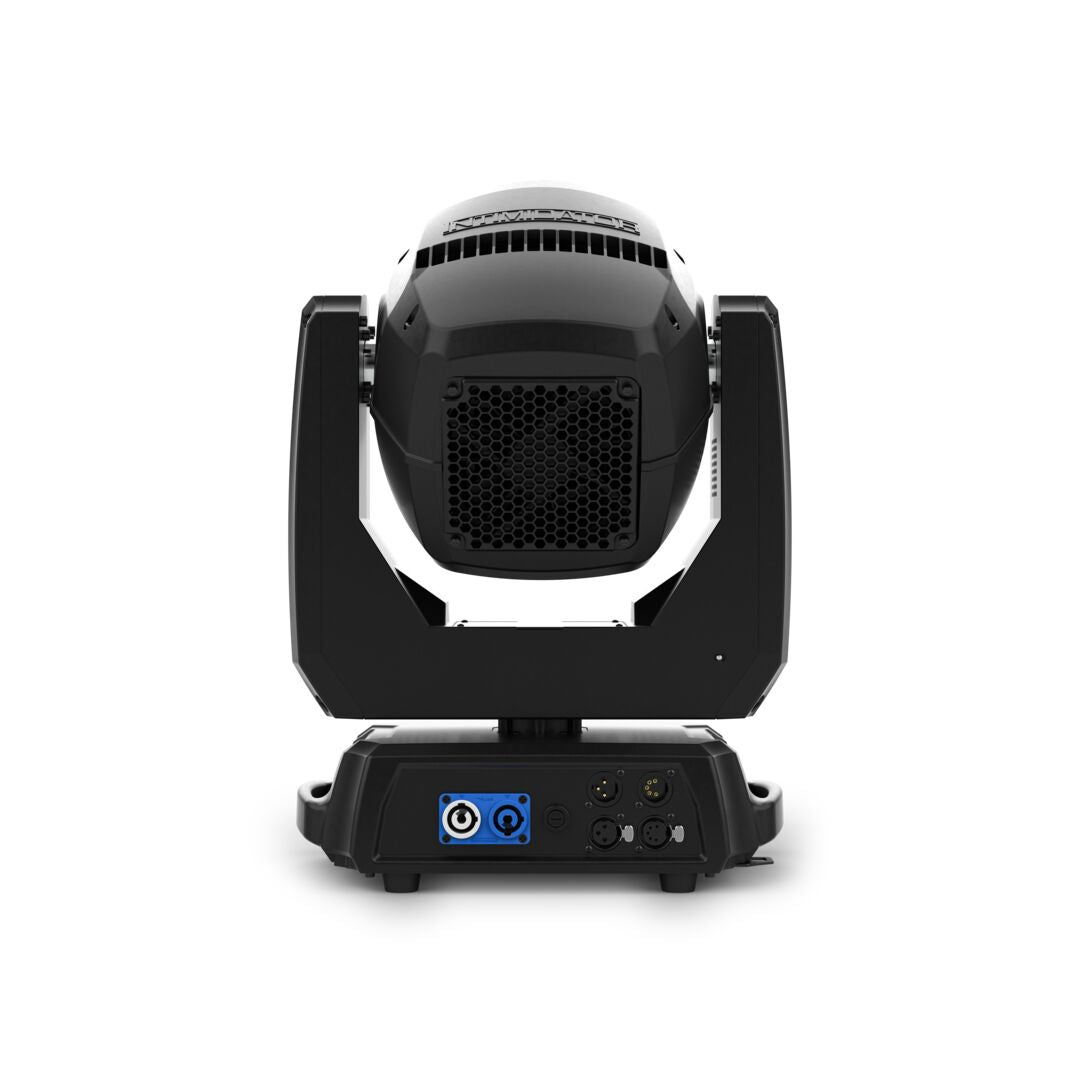

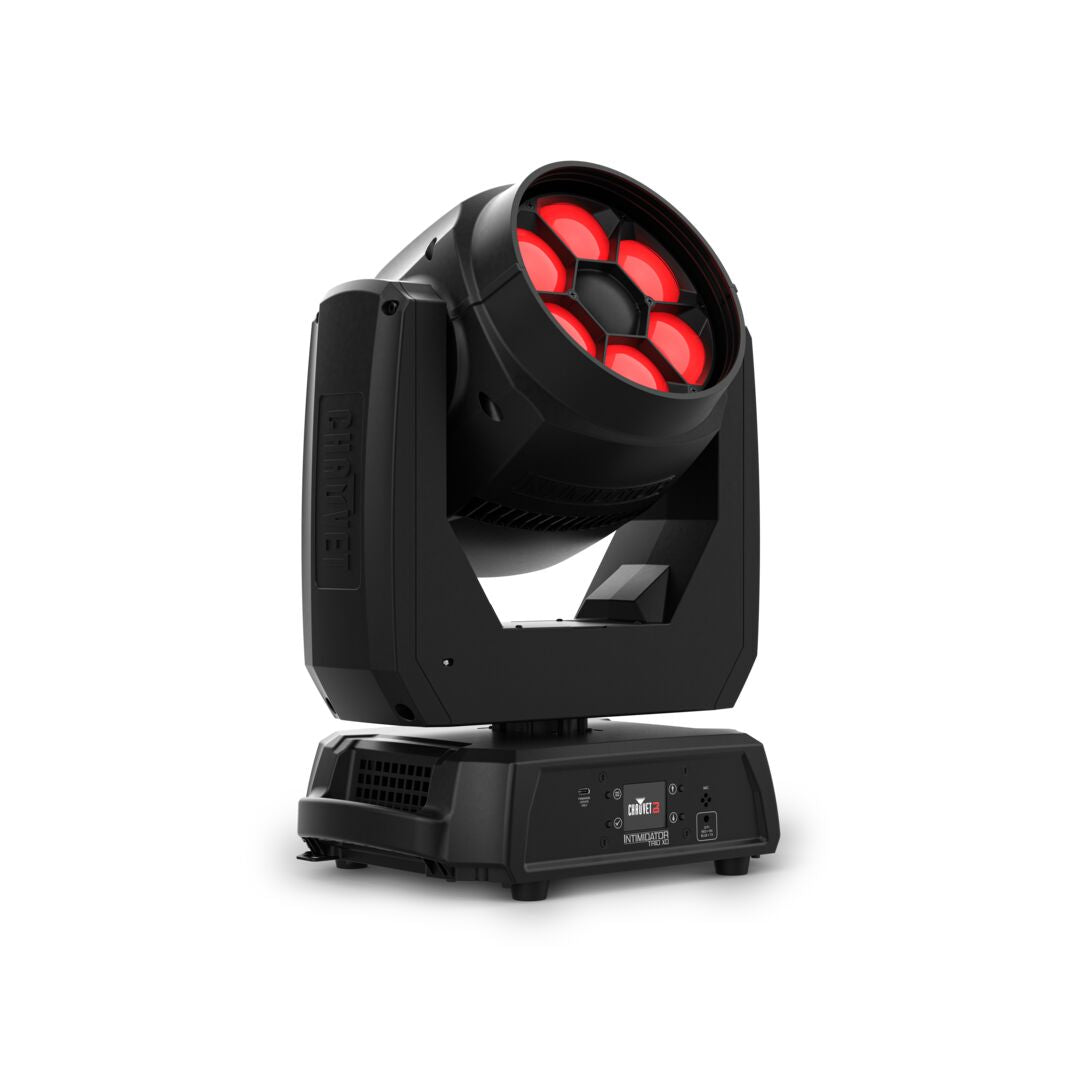

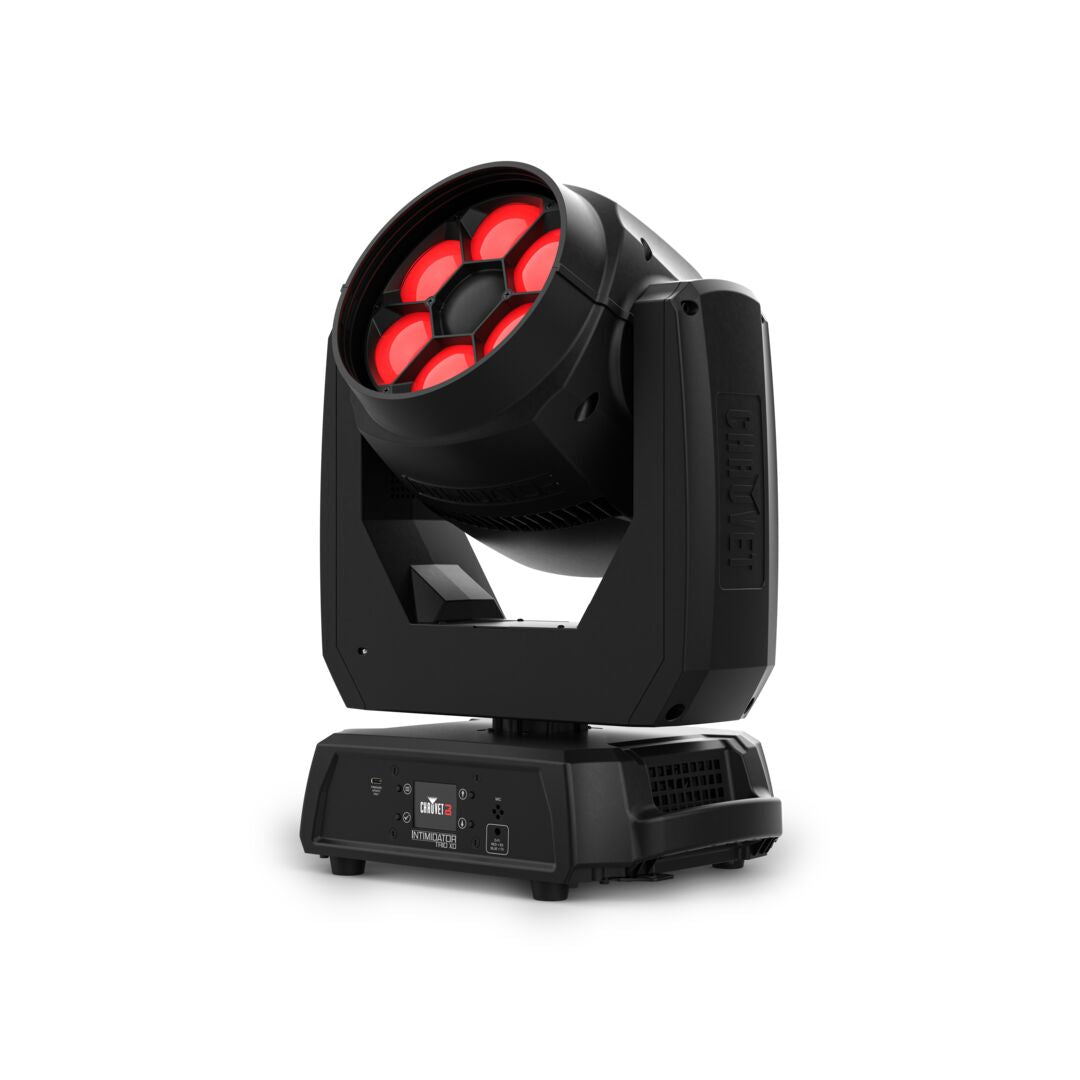

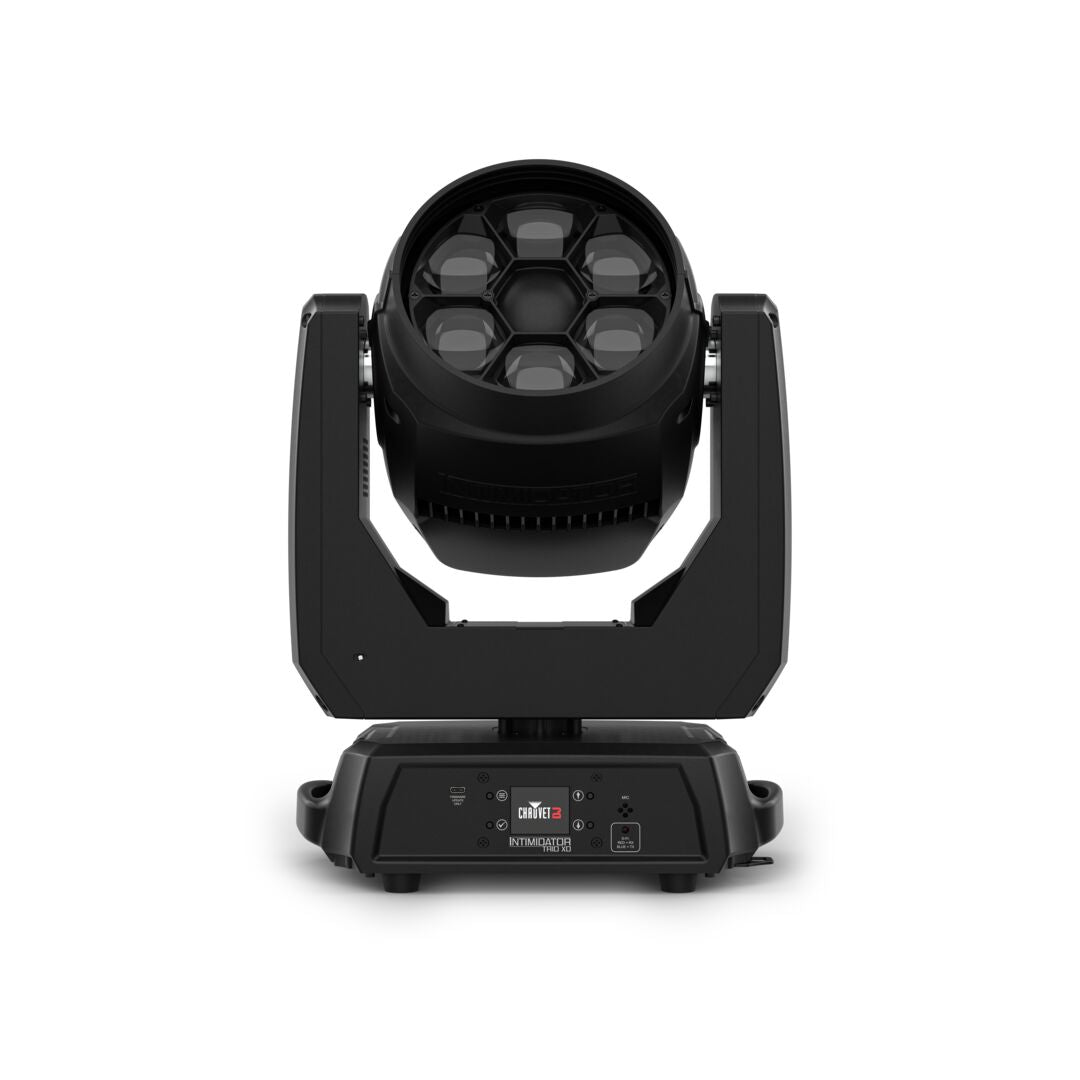

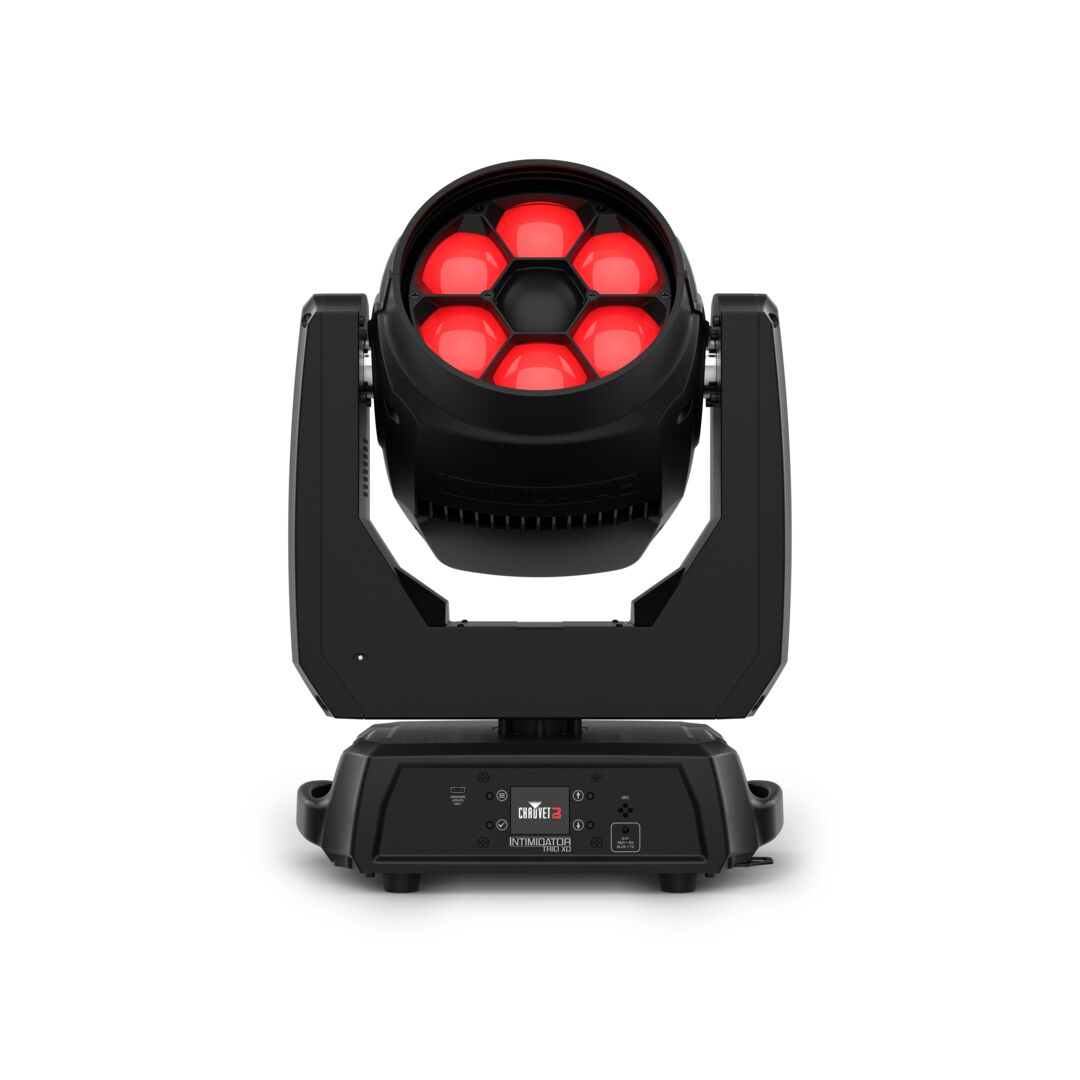

CHAUVET DJ Intimidator Trio XD

The CHAUVET DJ Intimidator Trio XD combines beam, wash and effect functions in one LED moving head. Motorized zoom moves from tight beams to wider washes, while a continuously rotating honeycomb creates animated effects.

Performance highlights

• Three lighting roles. Use the 3-22 degree zoom range to move between beam and wash looks, then add rotating honeycomb effects.
• Built-in creativity. Automatic programs with zone control create complex looks with less programming.
• Wireless operation. Built-in D-Fi supports wireless DMX or master/slave communication. An RF receiver supports optional RFC and RFC-XL remotes.
• Show-focused control. Totem mode keeps beams on the dance floor, and the full-color LCD lets you save and recall one scene.
• Durable construction. Carbon fiber composite housing offers strength and corrosion resistance, with USB-C access for software updates.

Technical specifications

Light source

6 quad-color RGBW LEDs

Zoom angle

3-22 degrees

Illuminance

124,299 lux at 2 m at 3 degrees; 7,505 lux at 2 m at 22 degrees

DMX

16, 23 or 52 channels; 3- and 5-pin XLR

Movement

540-degree pan; 270-degree tilt

Strobe

0-20 Hz

Input power

100-240 VAC, 50/60 Hz, auto-ranging

Power linking

4 units at 120 V; 8 units at 230 V

Dimensions

12.6 x 8.7 x 17 in

Weight

20.4 lb (9.3 kg)
