CHAUVET DJ Deco FX ILS

The CHAUVET DJ Deco FX ILS combines a blinder, warm wash, strobe and effect light in a rugged metal fixture. Warm-white COB LEDs and an RGB perimeter create layered looks for mobile entertainment and event lighting.

Performance highlights

• Four effects in one. Build warm washes, punchy blinder moments, strobes and colorful chases from a single fixture.
• Wireless integration. A built-in D-Fi transceiver carries DMX or ILS signals wirelessly. An RF receiver supports optional RFC and RFC-XL remotes.
• Flexible programming. Control multiple sections independently and trigger built-in macros from the display, DMX, ILS or compatible RF remotes.
• Expandable setups. Stack up to three fixtures into a vertical column and power-link multiple units to simplify cabling.

Technical specifications

COB source

2 warm-white LEDs; 120 W total

Perimeter source

144 RGB LEDs; 36 W total

DMX

4, 10, 15 or 148 channels; 3- and 5-pin XLR

Strobe

0-20 Hz

Input power

100-240 VAC, 50/60 Hz, auto-ranging

Power linking

5 units at 120 V; 9 units at 230 V

Dimensions per fixture

24 x 7.9 x 5 in

Weight per fixture

7.4 lb (3.4 kg)

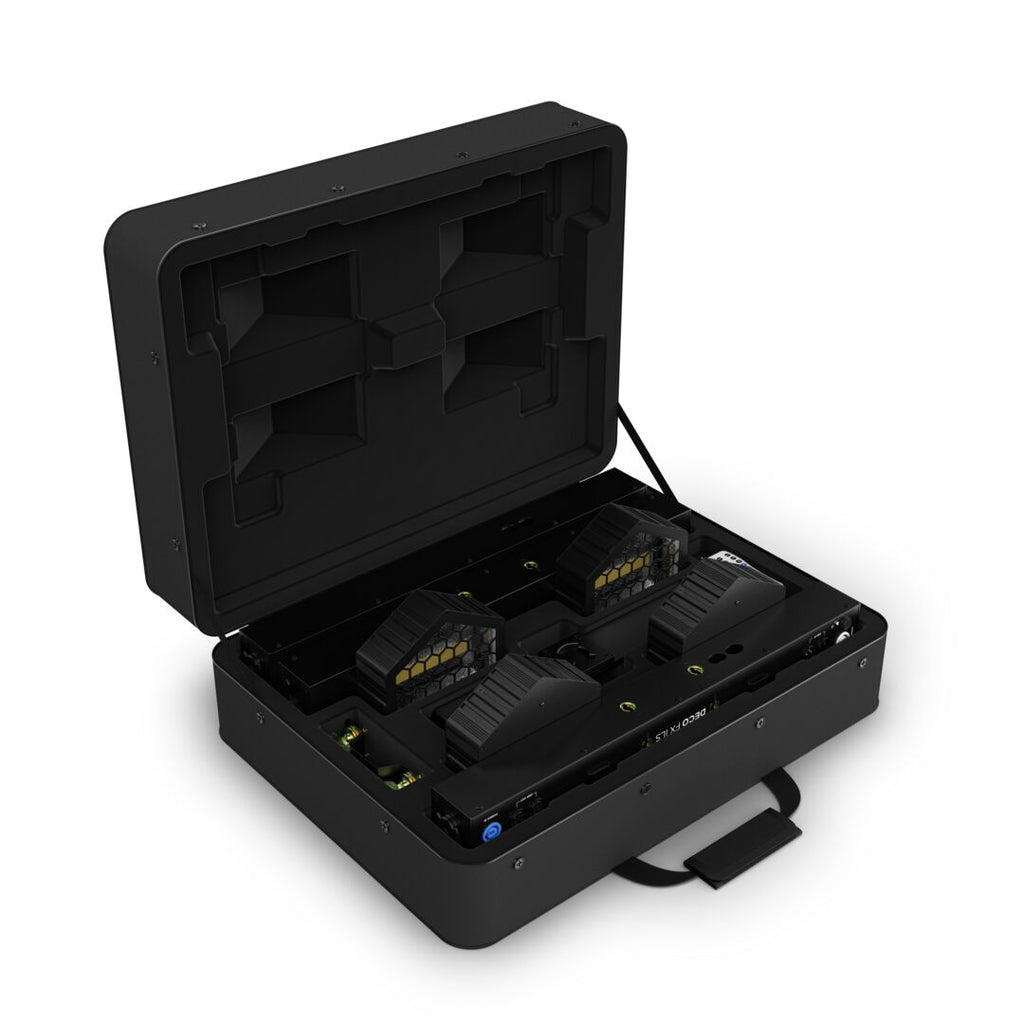

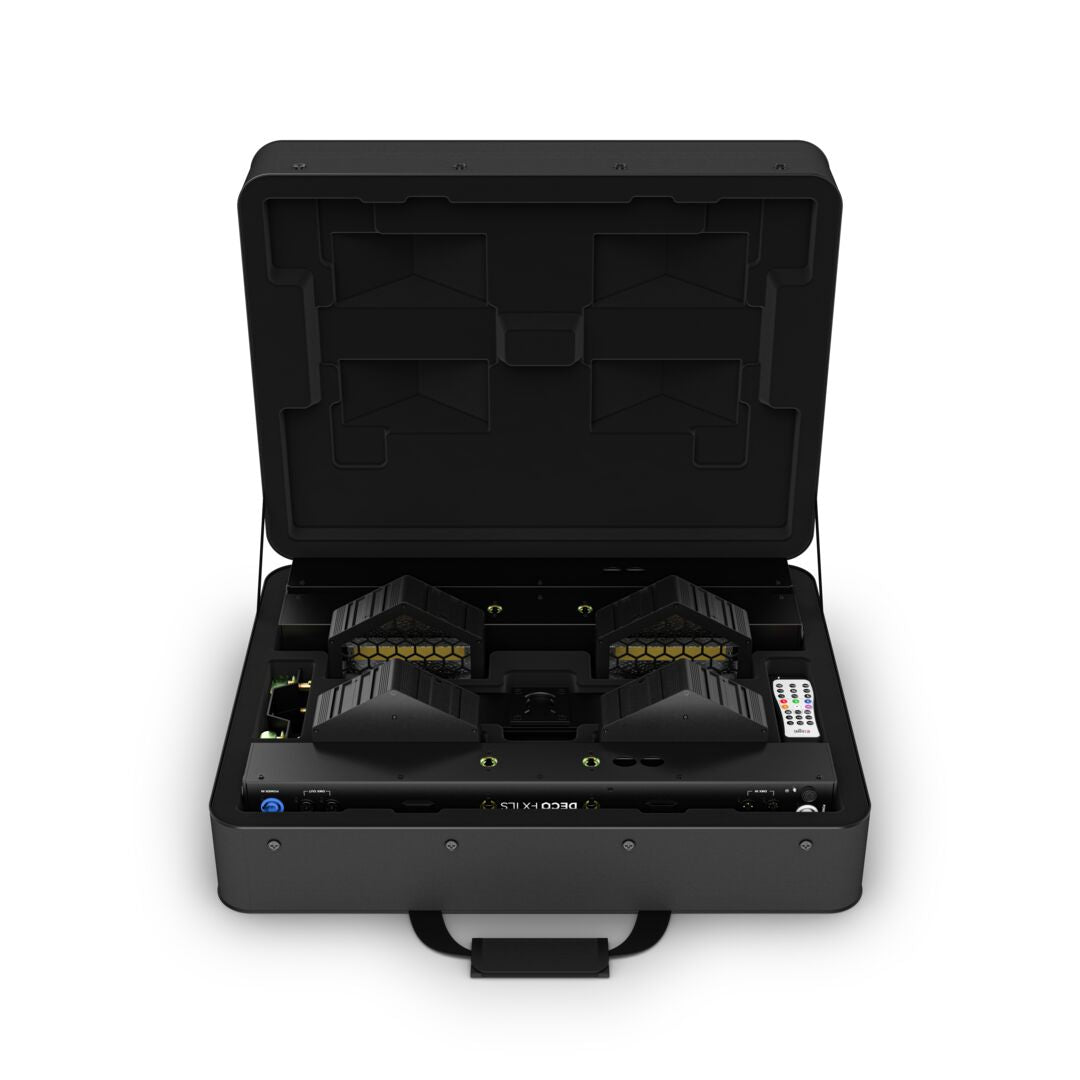

Choose Deco FX ILS or Deco FX ILS X2 from the Model options. Specifications shown are per Deco FX ILS fixture. RFC, RFC-XL and ILS Command controllers are optional.
