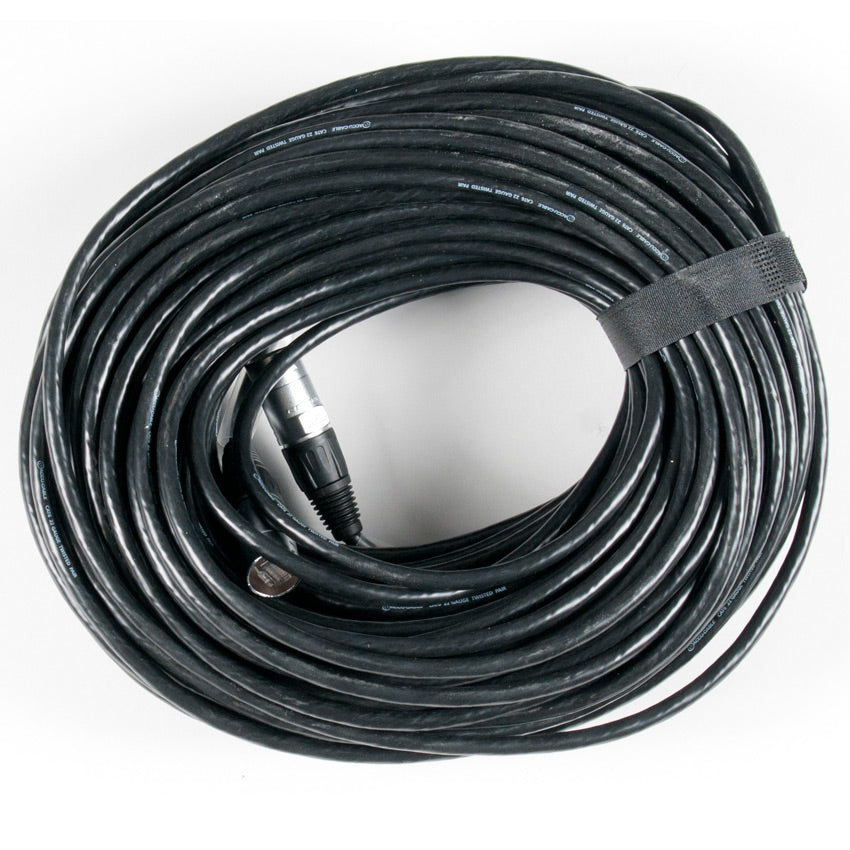

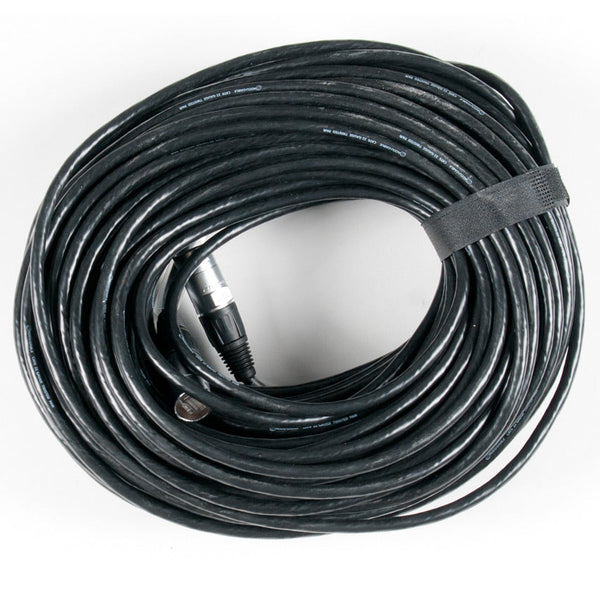

CAT6PRO100

CAT6PRO100

$113.95 $81.99

The CAT6 Pro cable range is a 8 conductor, twisted pair cable complying to the CAT6 standard. The CAT6 Pro cable has a plastic separator between the different pairs, which follows the most stringent specifications for crosstalk and noise. Because of this, CAT6 Pro cable supports frequencies up to 250...

Qty:

The CAT6 Pro cable range is a 8 conductor, twisted pair cable complying to the CAT6 standard. The CAT6 Pro cable has a plastic separator between the different pairs, which follows the most stringent specifications for crosstalk and noise. Because of this, CAT6 Pro cable supports frequencies up to 250 Mhz. The maximum cable run length according to the standards is limited to 328 feet (100 meters).

Specifications

Inner conductor: Bare COPPER 19 x 0.12

Inner conductor section: 0.22mm²

Isolation: HDPE Ø 0.95mm

T-568B, Straight Cable Wiring : Blue (Pin 4), Blue-White (Pin 5), Orange (Pin 2), Orange-White (Pin 1), Green (Pin 6), Green-White (Pin 3), Brown (Pin 8), Brown-White (Pin 7)

Number of conductors: 8

Conductor Twisting: Yes

Outer jacket: Flexible PVC

Outer jacket Black

Outer jacket dimensions: Ø 6.5mm

American Wire Gauge: 24 AWG
