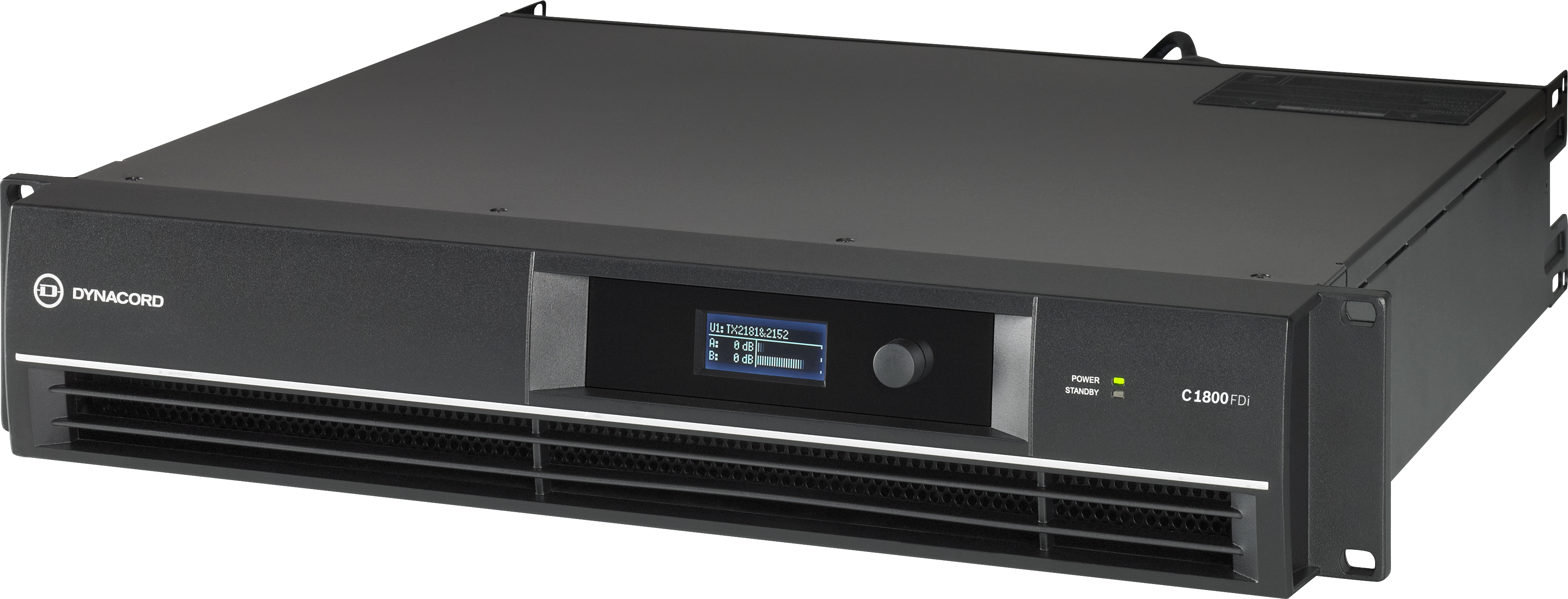

Dynacord C1800FDI-US

Dynacord C1800FDI-US – DSP 2 x 950 w power amplifier for fixed install applications

$1,459.00 $1,823.00
Skip to product information
Dynacord C1800FDI-US
  • Dynacord C1800FDI-US
  • Dynacord C1800FDI-US
Dynacord C1800FDI-US – DSP 2 x 950 w power amplifier for fixed install applications

Dynacord C1800FDI-US – DSP 2 x 950 w power amplifier for fixed install applications

$1,459.00 $1,823.00

Dynacord

C1800FDI-US – DSP 2 x 950 w power amplifier for fixed install applications

Overview

DSP 2 x 950 w power amplifier for fixed install applications

Highlights

  • ✓Professional DSP amplifier for live and mobile application
  • ✓Fully integrated professional speaker processing with FIR drive technology
  • ✓Market-leading acoustic performance and rock solid reliability
  • ✓Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0

Specifications

Load Impedance 2 Ω 2.6 Ω 4 Ω 8 Ω
Maximum Output Power, Single Channel 1600 W 1300 W 950 W 480 W
Maximum Output Power, Dual Channel 1400 W 1200 W 850 W 450 W
Maximum Output Power, Bridged - - 2800 W 1700 W
Direct Drive Load Capability Dual Channel Bridged 70 V Operation 2 x 1250 W (-1.5 dB) Not recommended 1 100 V Operation Not available 2 1 x 1250 W (-1.5 dB)
Specifications Maximum RMS Voltage Swing THD = 1%, 1 kHz 65.1 V
Voltage Gain Ref.1 kHz 32.0 dB
THD at 600 W/4 &Omega;MBW = 80 kHz, 1kHz < 0.05%
IMD-SMPTE, 60 Hz, 7 kHz < 0.1%
DIM30, 3.15 kHz, 15 kHz < 0.05%
Maximum Input Level +21 dBu
Crosstalk ref. 1 kHz, at 100W/4 &Omega; < -80 dB
Frequency Response, ref. 1 kHz Frequency Response, ref. 1 kHz
Frequency Response, ref. 1 kHz 20 k &Omega;
Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8 &Omega; >105 dB
Output Noise, A-weighted < -68 dBu
Output Stage Topology Class AB
Power Requirements 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)

Product identifiers

SKU C1800FDI-US
