The single universe, indoor Aria X2 Bridge, the future of wireless lighting management, is here to transform your experience with unparalleled control, efficiency and ease. This comprehensive system harnesses cutting-edge technology to offer you a solution that adapts to your needs and provides a harmonious lighting experience, whether on show site or in the shop. In addition to transmitting the Aria X2 serial protocol, Aria X2 Bridge is also compatible with ADJ WiFLY, Elation eFly, Magmatic MagFly and Acclaim Aria.

Specifications

Features:

Single DMX Universe

900Mhz., 2.4 GHz WiFi and Bluetooth

Configuration via Aria X2 BLE App or Front panel

Wireless to DMX or DMX to Wireless

Aria X2 to SM220 (eFly, WiFly, MagFly and Acclaim Aria)

SM220 (eFly, WiFly, MagFly and Acclaim Aria) to Aria X2

Supported Protocols:

DMX

RDM (Planned for future software release)

Proprietary 802.15.4

Aria X2 Mesh Protocol (Planned for future software release)

Bluetooth 5.2 (BLE)

Aria X2 Serial Protocol

This is our proprietary serial protocol for communicating with a variety of fixtures.

RF Characteristics:

Frequency range

2404-2480 MHz

863-870 MHz (EU)

902-928 MHz

Radio module: Aria X2

Interference mitigation

CSMA

Adaptive frequency hopping (on the roadmap)

OTA updates

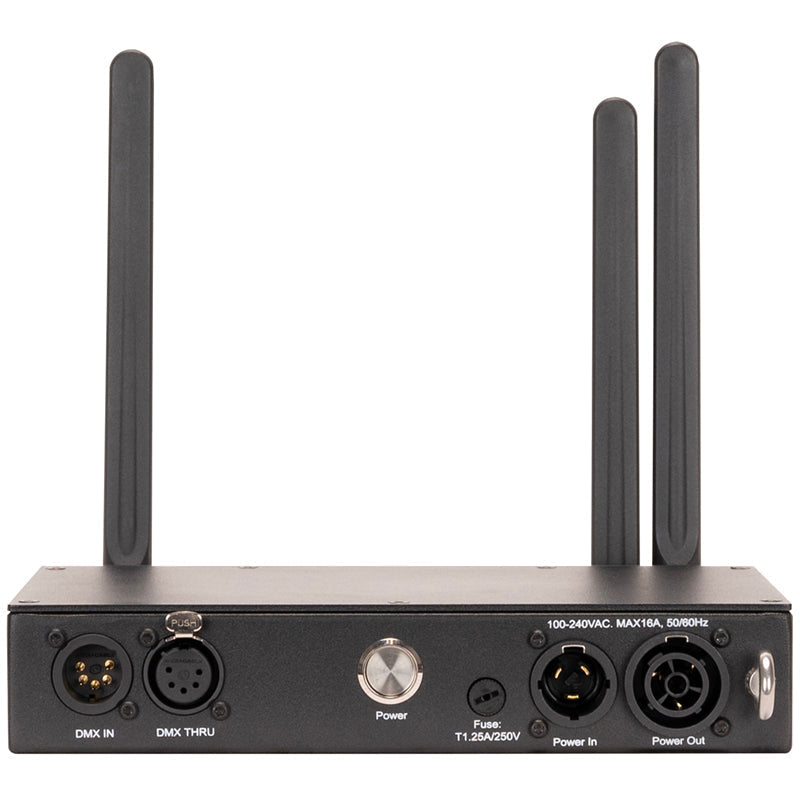

Connectors:

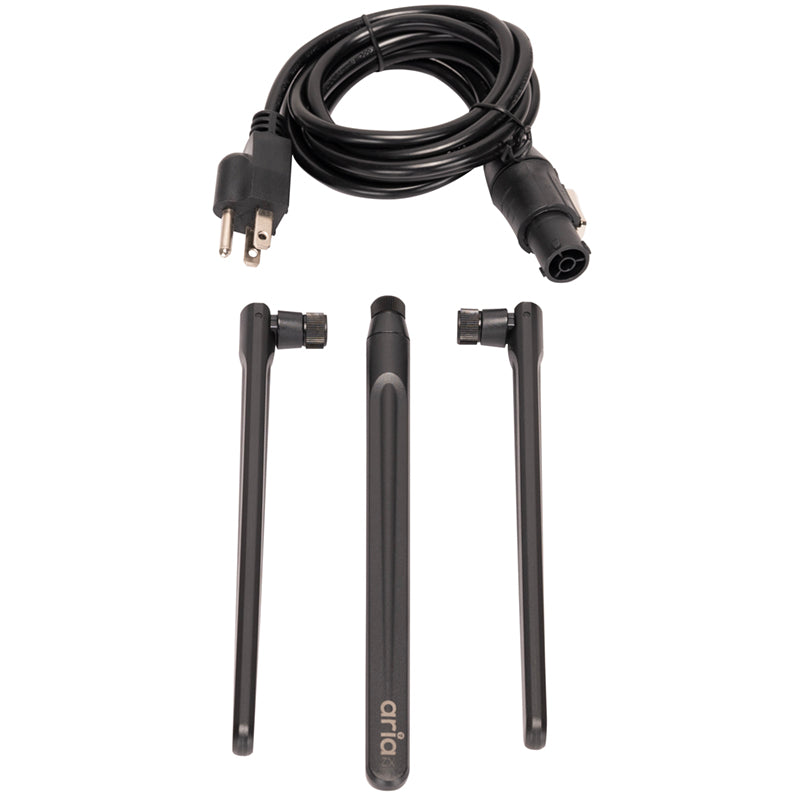

Antenna: 5G JT SMA

DMX: 5-pin XLR Input and Output

DC: 2.5mm/5.5mm Barrel connector

Outdoor Locking Power Input and Output

Power:

AC100-240V 50/60Hz

Power Consumption: 2W

Power Fuse: T1.25A/250V. (5 x 20mm)

Physical:

IP20 Aluminum / Metal enclosure

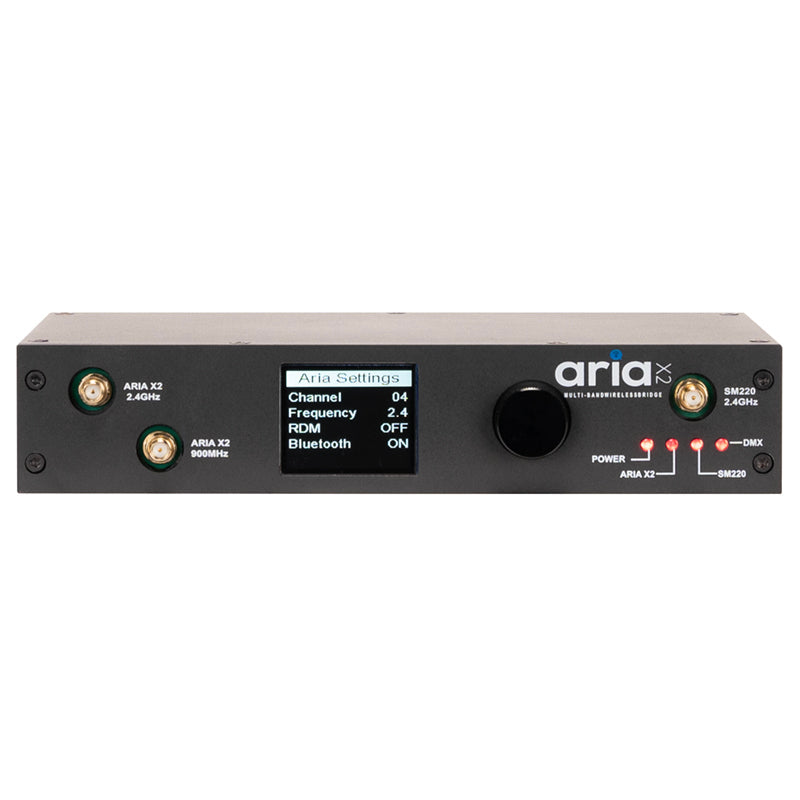

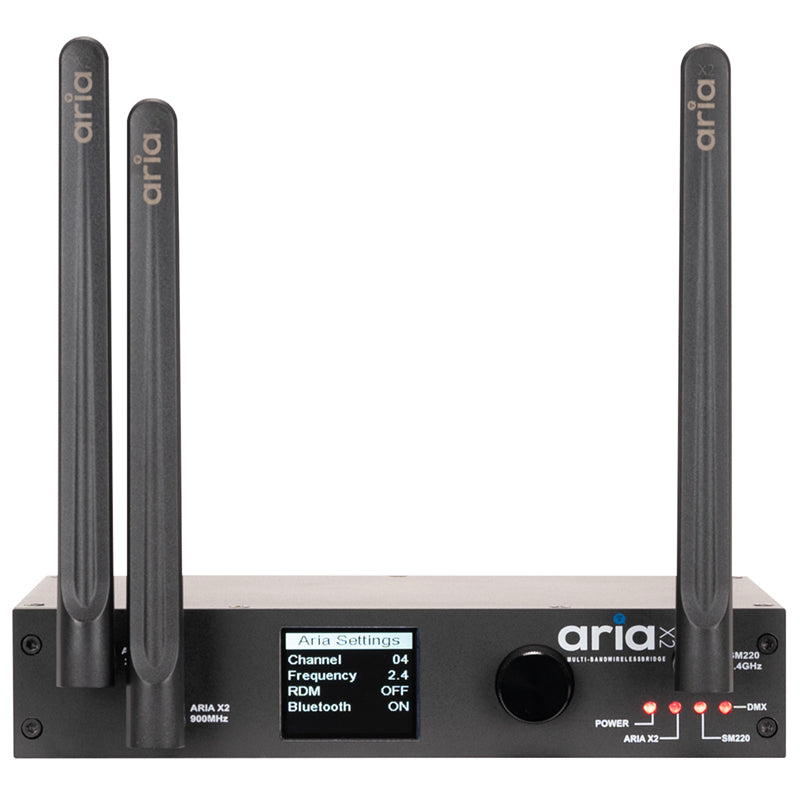

Front panel digital screen and rotary knob

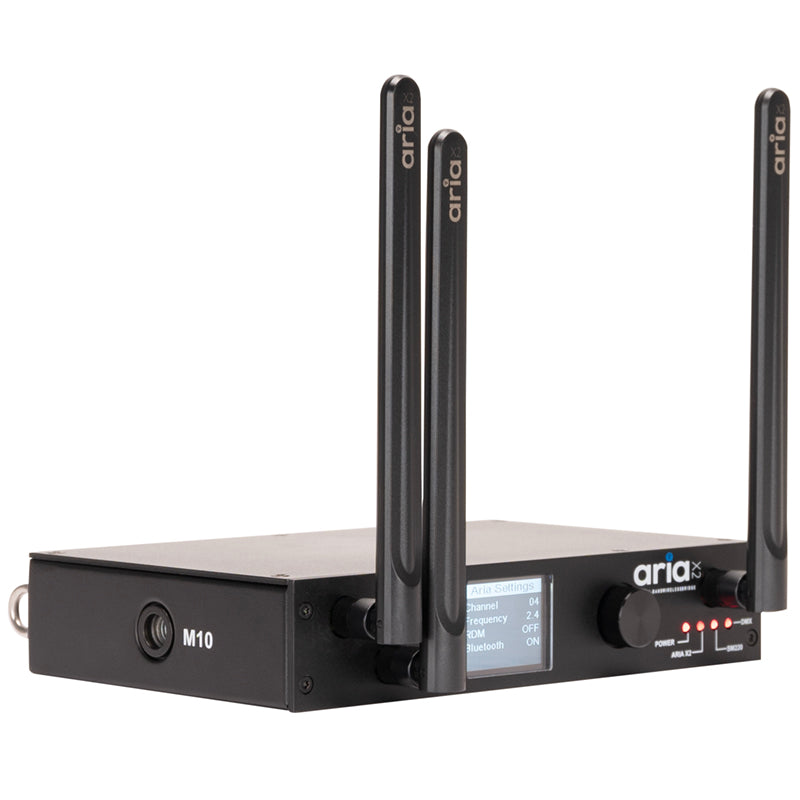

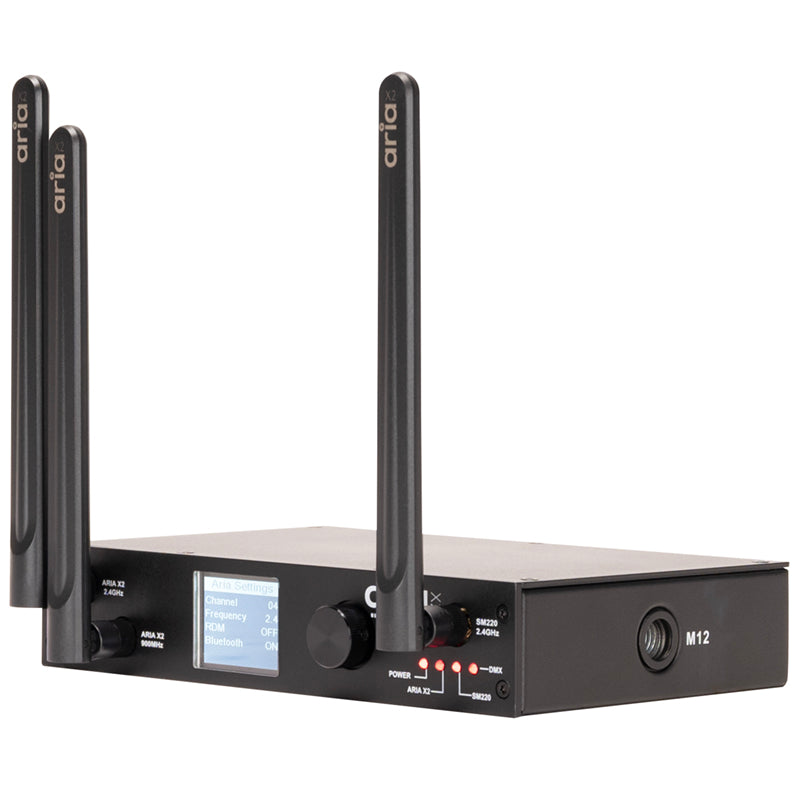

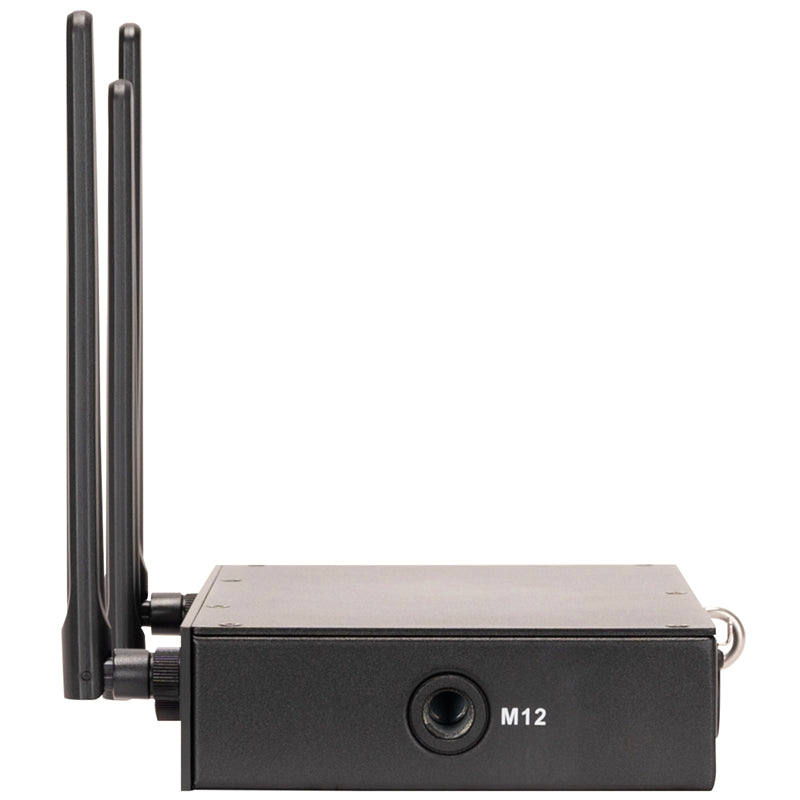

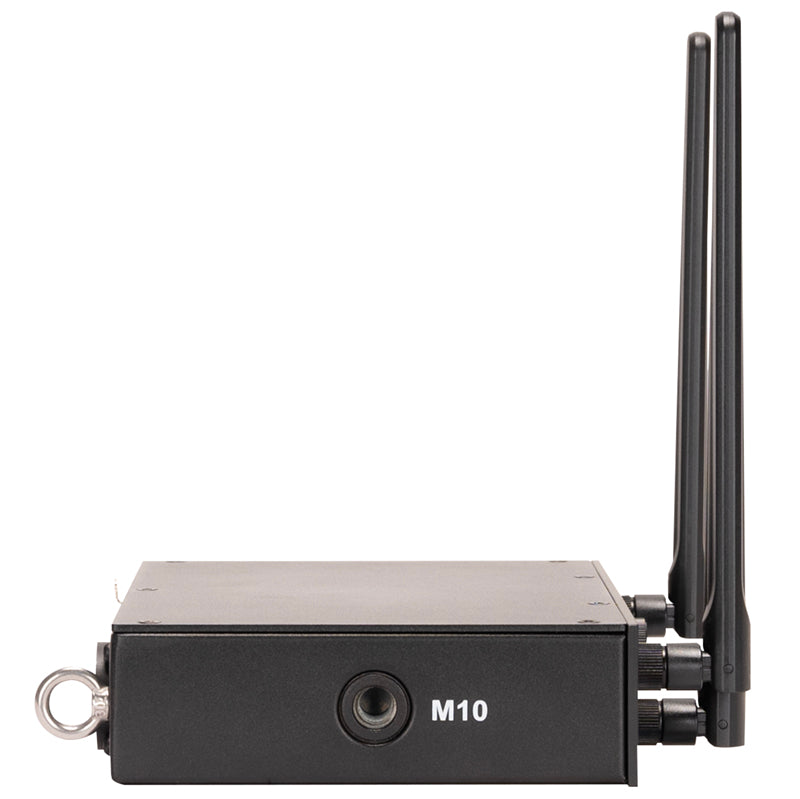

M10 and M12 Threads

Safety Eyelet

Max ambient operating temp: 113°F (45°C)

Max operating humidity: <75%

Storage temperature: 77°F (25°C)

Rack and wall mount accessories

Dimensions and Weight:

Length: 6.46" (163.95mm)

Width: 8.48" (215.30mm)

Height: 1.66" (42mm)

2.7lbs (1.23kgs.)

Specifications subject to change without notice.
