Specifications

Light Source:

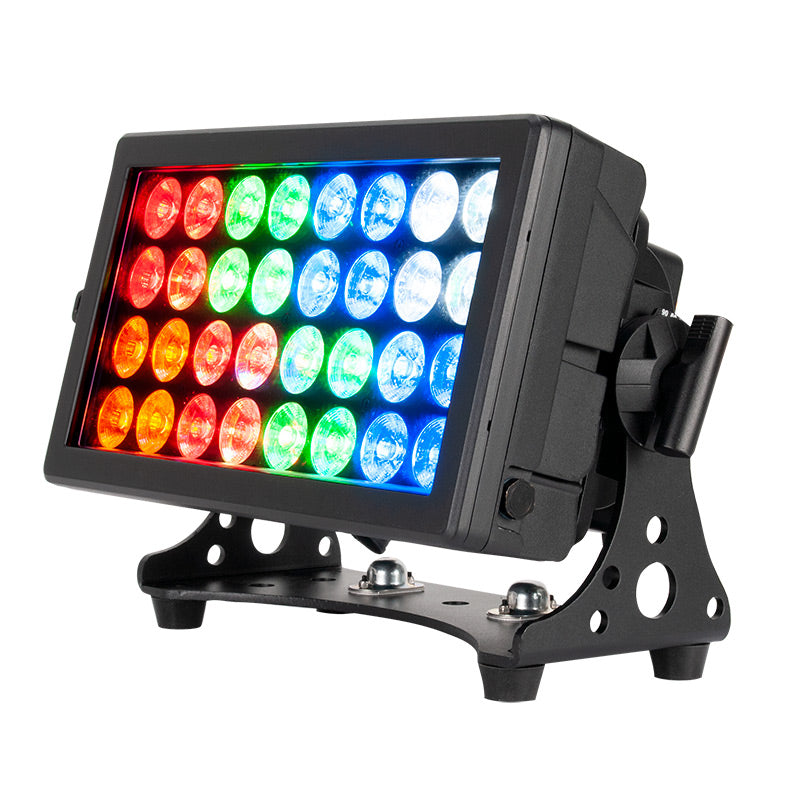

• LED: 32x 12W HEX (6-In-1) RGBWA+UV LEDs (50,000 hr.)
• Beam Angle: 24-degrees
• LUX: 33040 @ 1M, 1322 @ 5M (Full On No UV); 20659 @ 1M, 826 @ 5M (Full On)

Features:

• IP65 rated – protects from dust, sand, moister, water
• All metal construction with black housing
• Includes heavy duty bracket

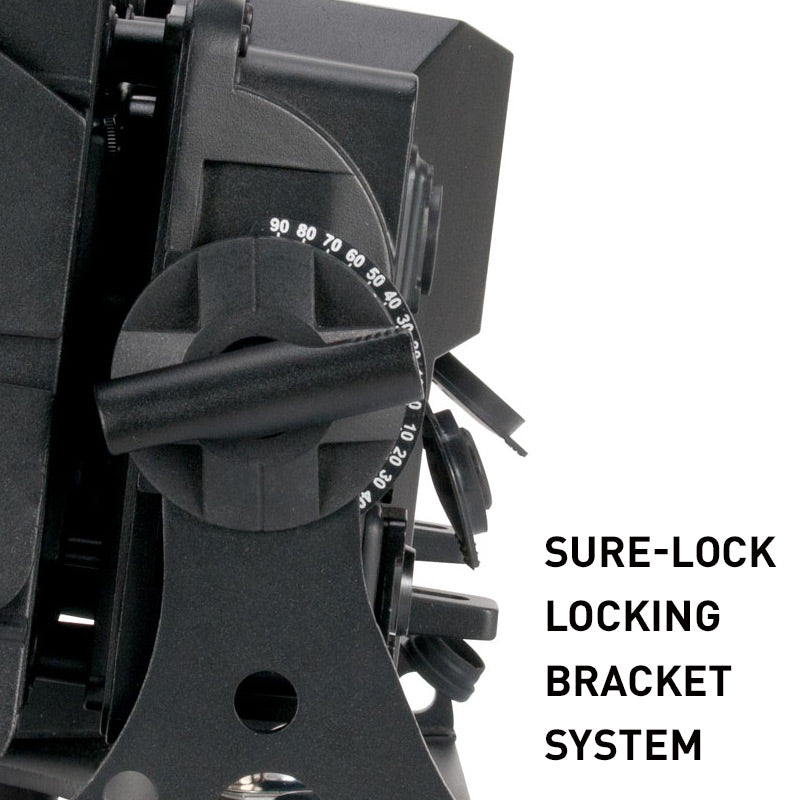

• Sure-lock locking bracket system (securely locks every 10-degrees)

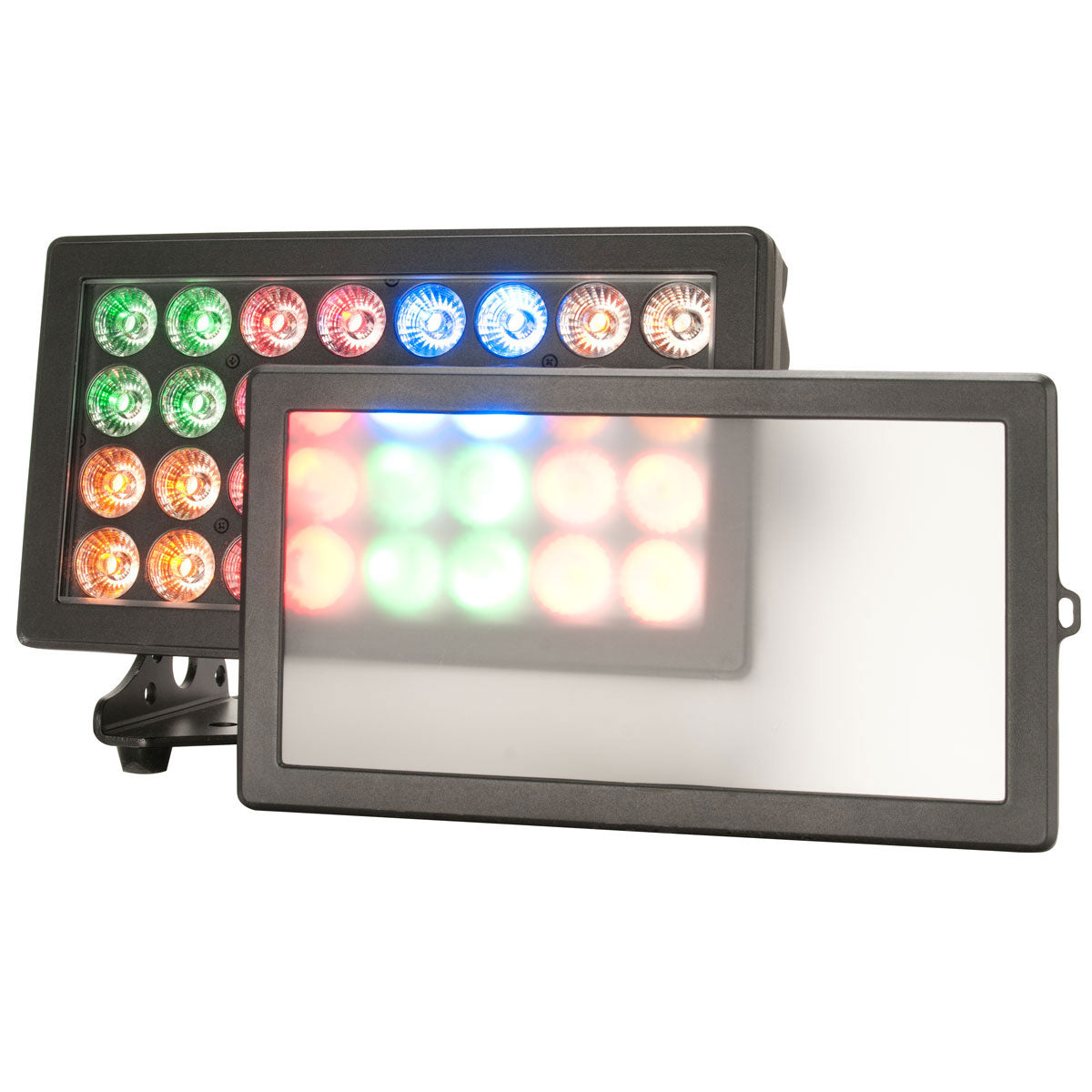

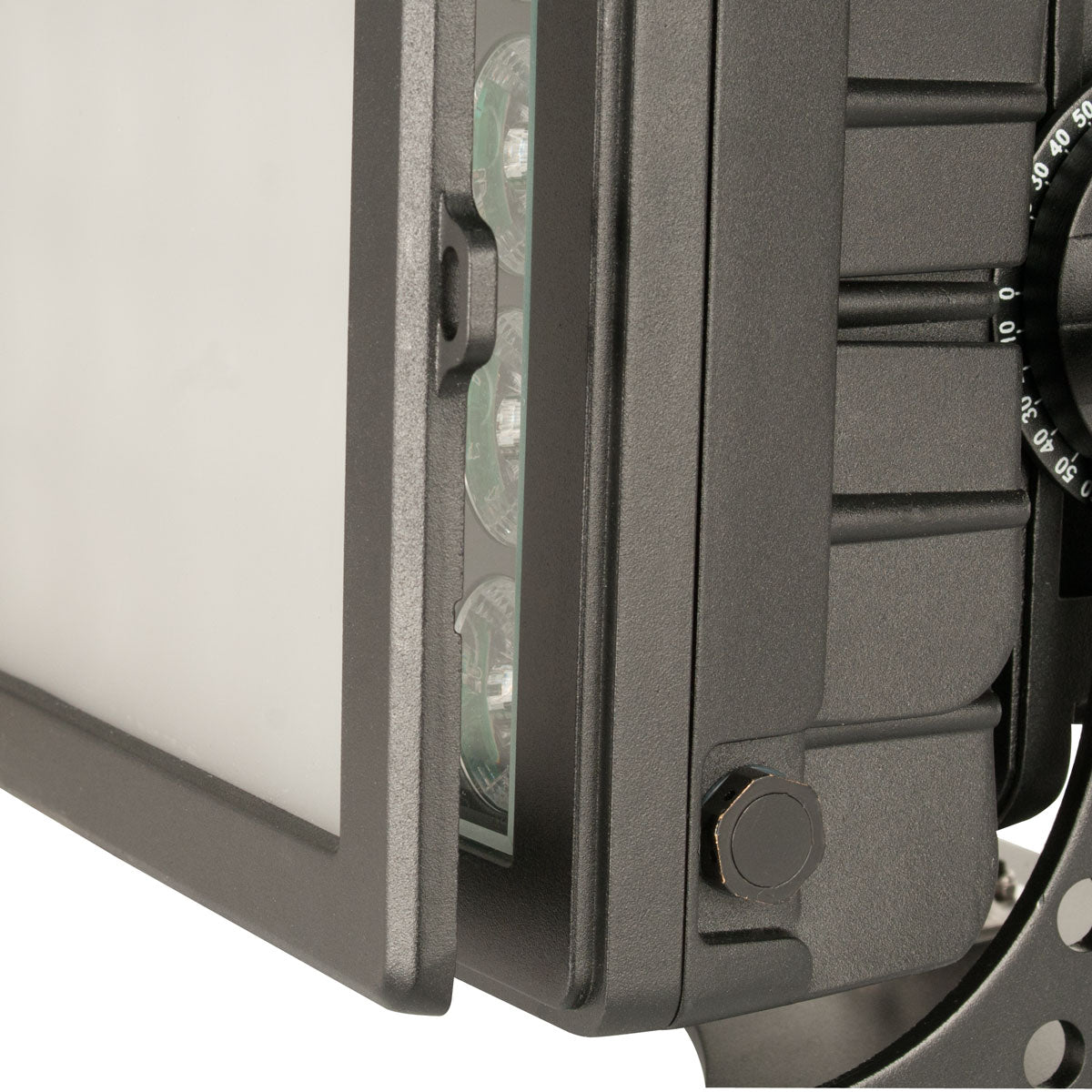

• Includes magnetic removable filter frame to add a diffusion filter
• Flicker free for film and broadcast
• Linear variable white temperature control

Construction:

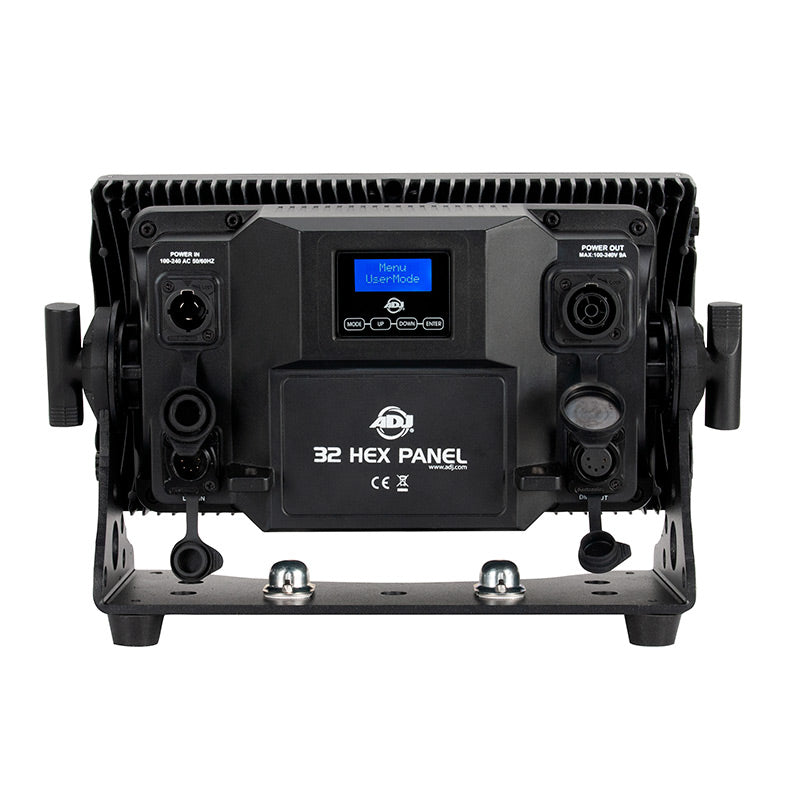

• Display: OLED display with function buttons
• Data In/Out: IP65 Locking 5-pin XLR, DMX In/Out (with rubber protective covers over connections)
• Power In/Out: IP65 Locking Power In/Out (with rubber protective covers over connections)
• All Metal Heavy-Duty Housing: Built To Last In Outdoor or Touring Applications

Control:

• Multiple DMX channel modes
• 8 individually controlled sections with Pixel Zone Control
• 0-100% Dimming + smooth 16-bit Dimming
• 5 Dimming Curve Modes
• Control Mode: DMX512, RDM (Remote Device Management)
• Gamma Brightness: Multiple settings
• LED Refresh Rate: Multiple settings
• With Wired Digital Communication Network

Electrical:

• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
• Daisy chain up to 3 fixtures max (@ 120V); 6 fixtures max (@ 230V)
• Power consumption: 220W Max
• cETLus Approved (Control #4010765)

Dimensions Weight:

• Dimension: 13.75”x 9” x 6.75” / 350x230x170mm
• Weight: 24.25 lbs. / 11kg.

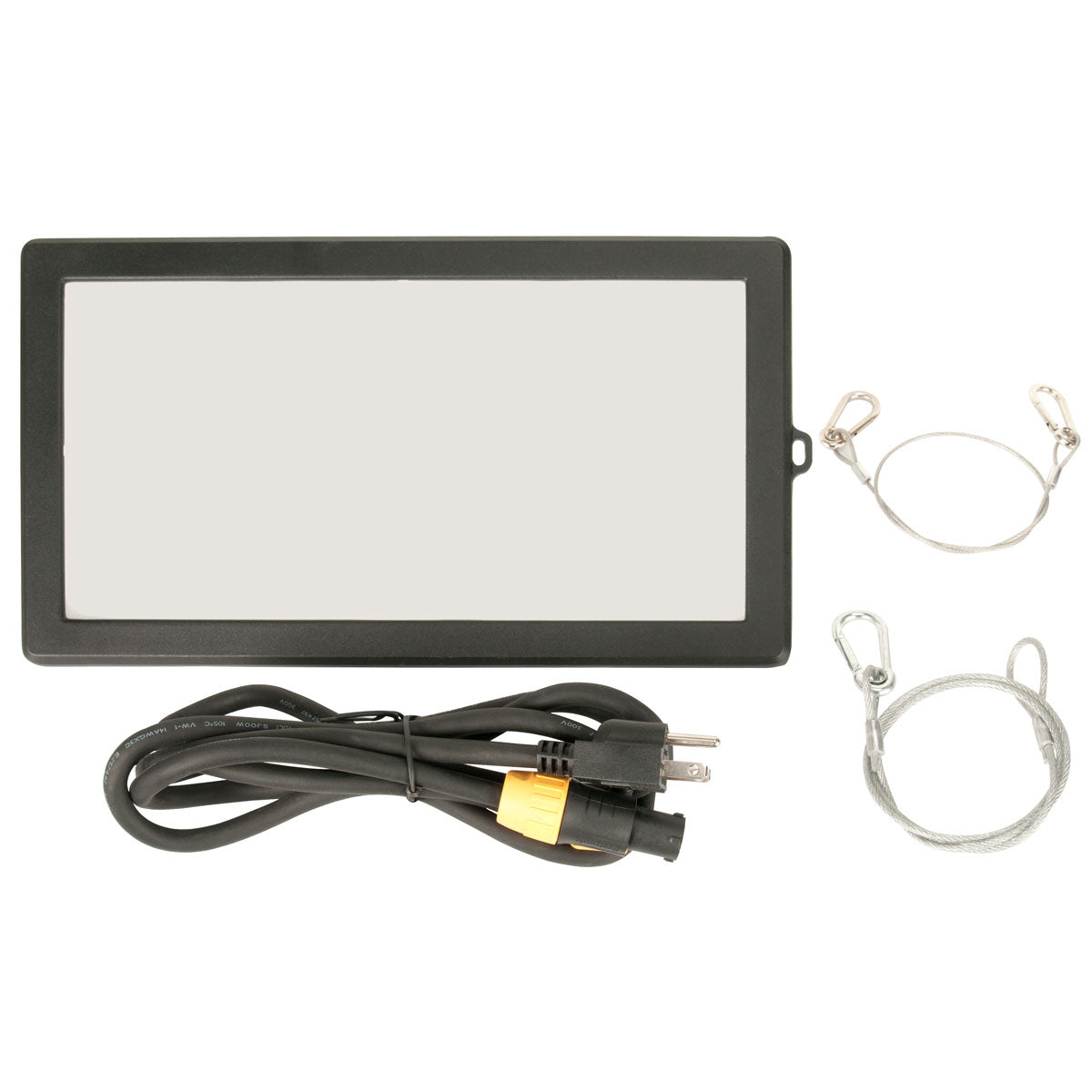

What's Included:

• Removable frost filter with metal frame
• IP65 locking power cable
• Two Safety cables

Approvals / Rating:

• cETLus
• CE Certified
• CB
• UKCA

Specifications are subject to change without notice.
