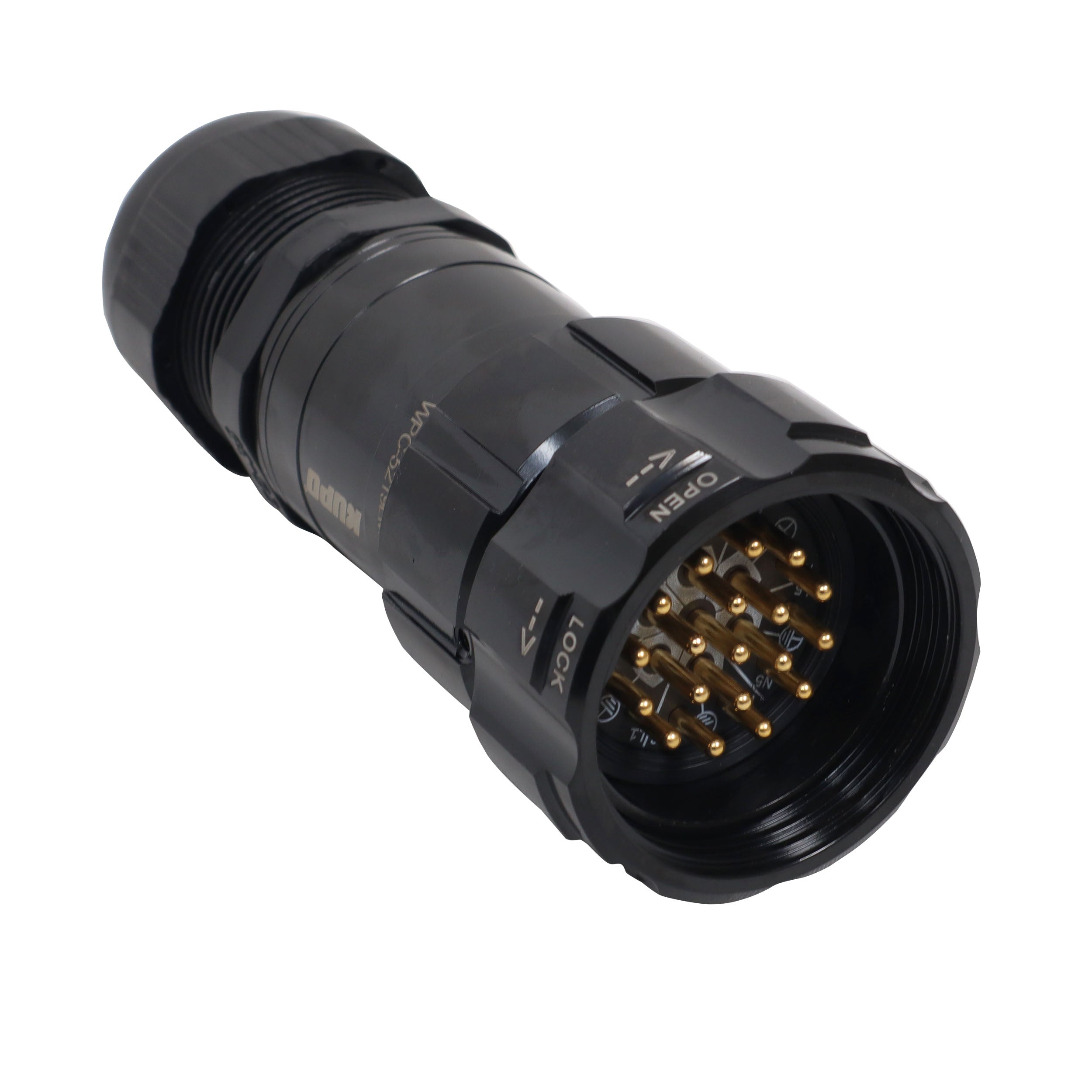

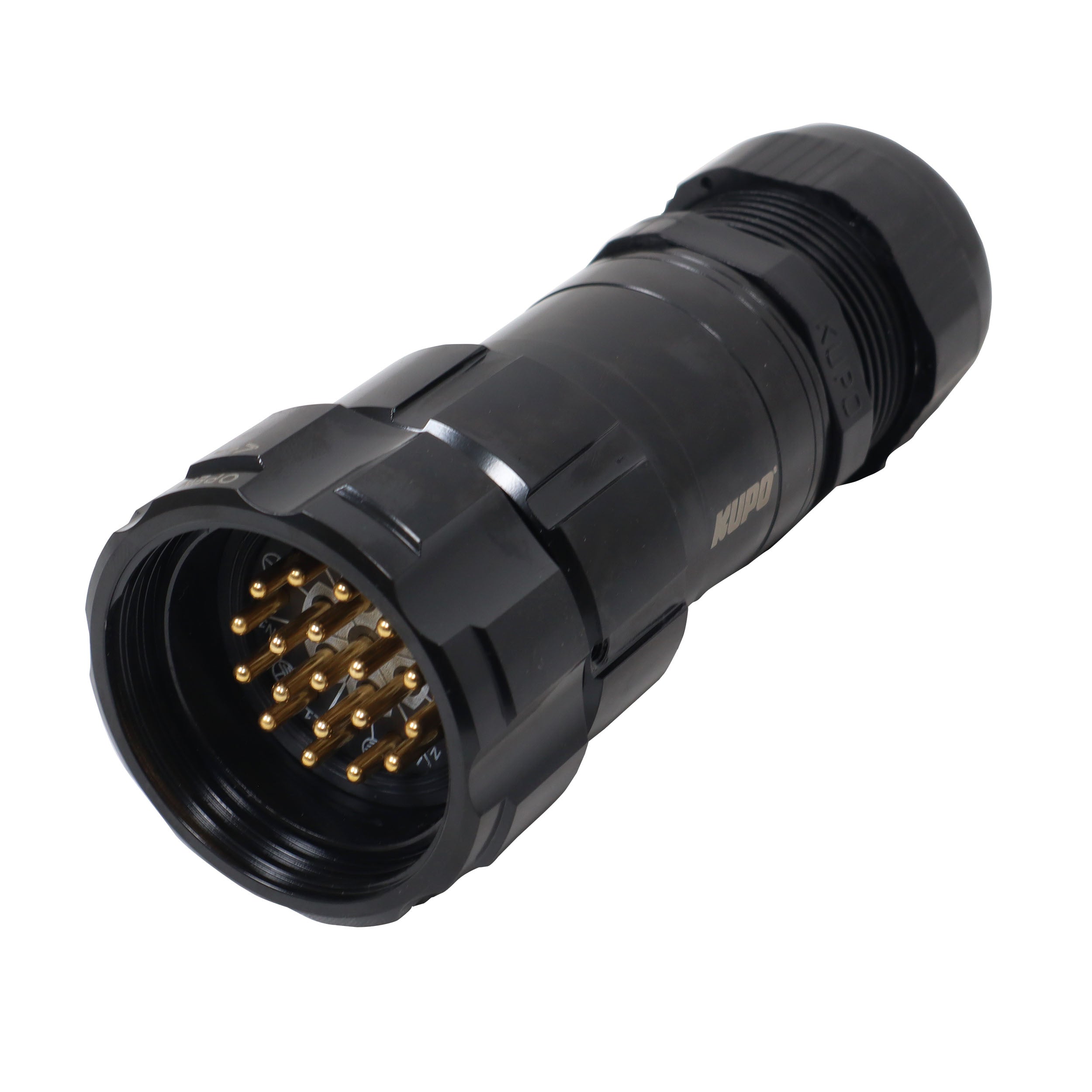

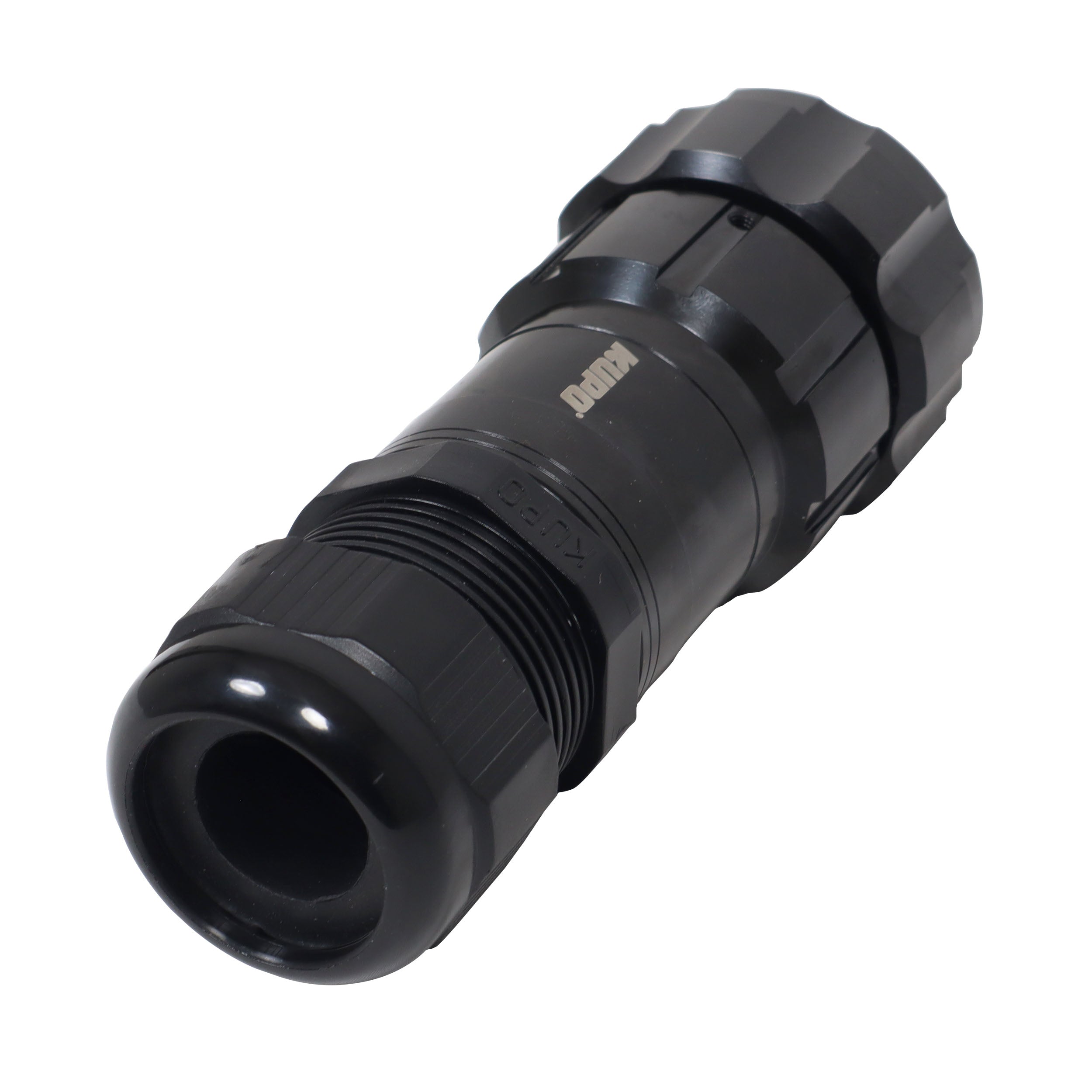

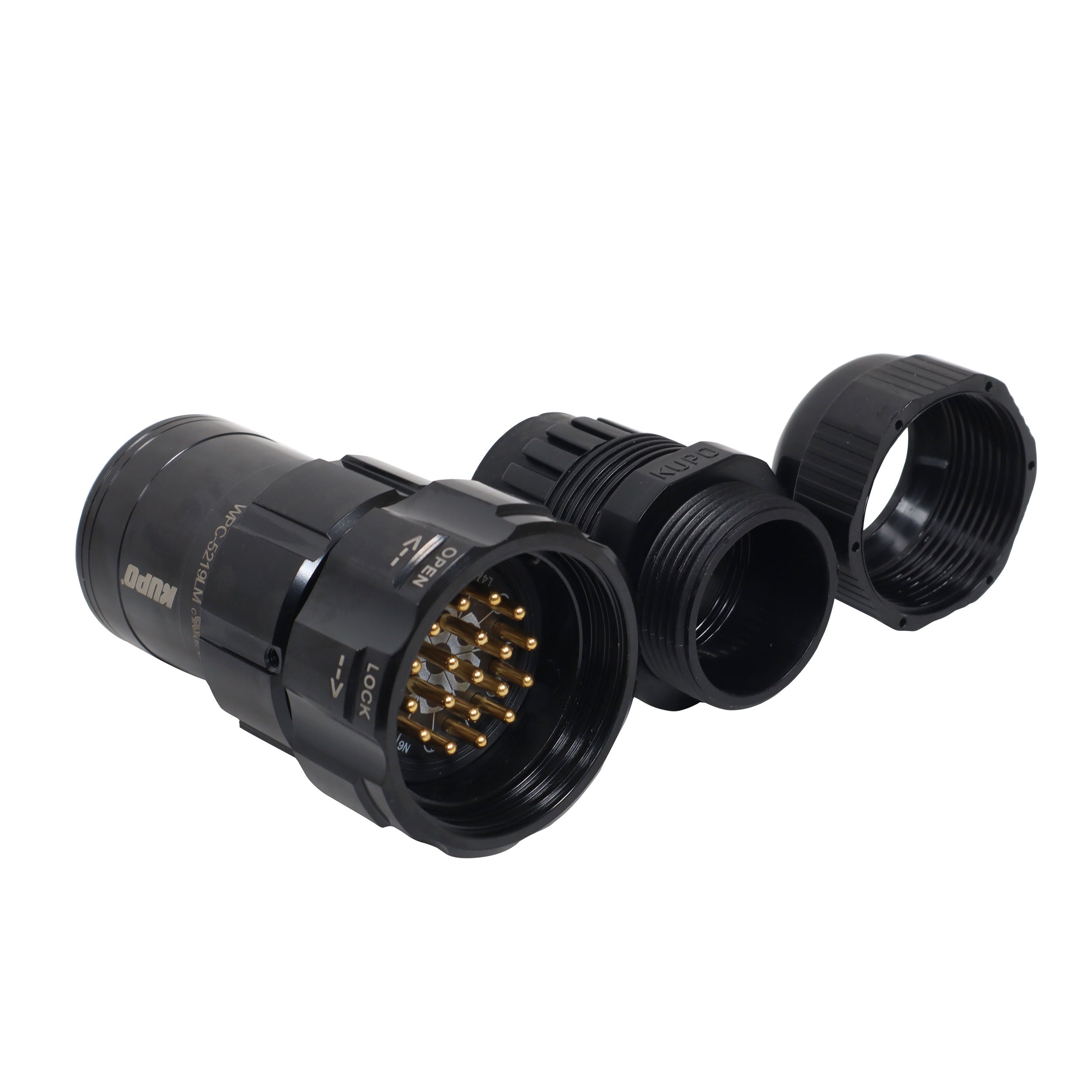

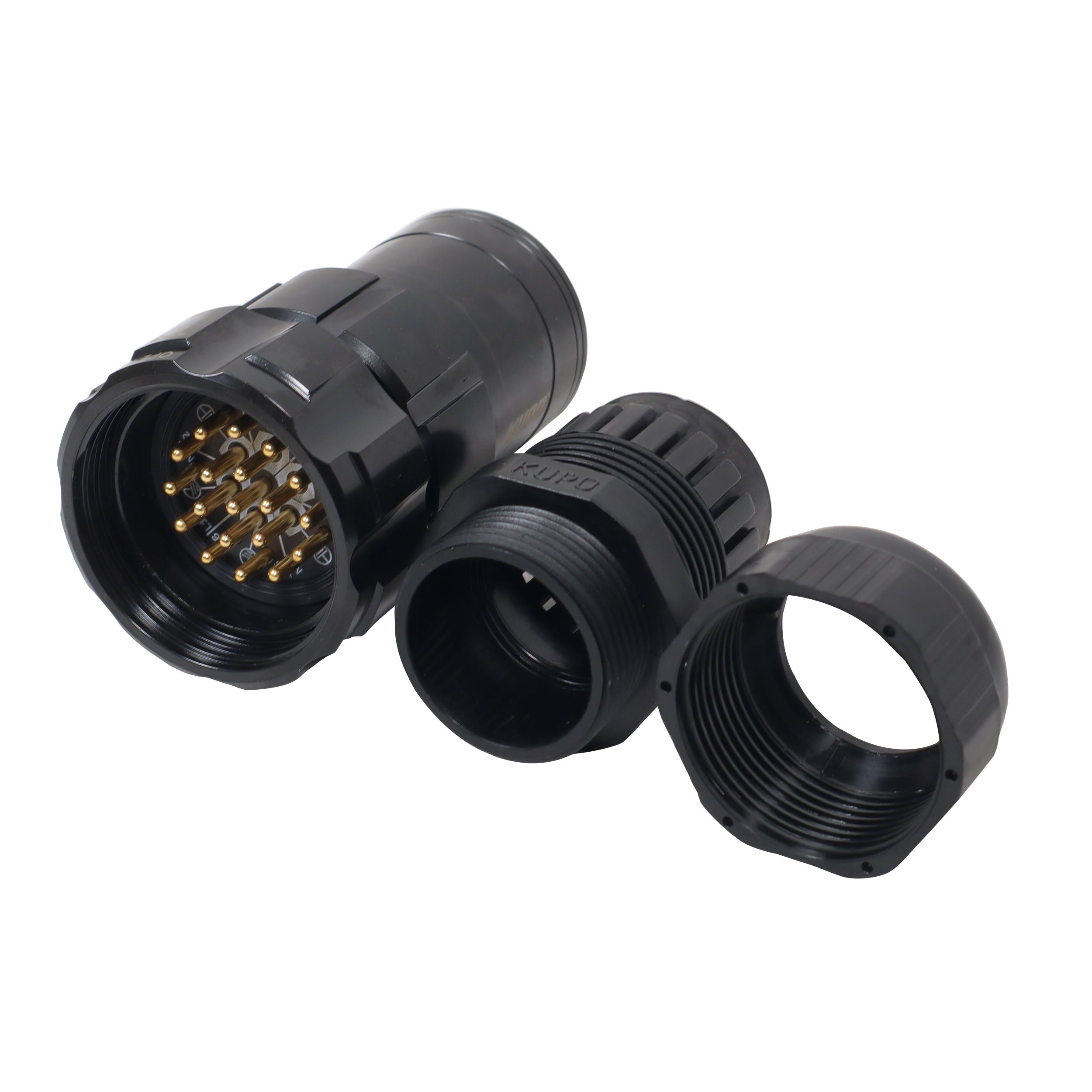

19-Pin Male Connector - Solder Type - Kupo PLS-5219LM

The ProX XC-P19PMALE 19-Pin Solder Line Male Kupo PLS-5219LM Power Connector is a professional-grade multi-pin connector engineered specifically for power distribution applications in live production, staging, and permanent installations. Designed to handle multi-circuit power runs in a single connector, this 19-pin male connector is ideal for custom power looms, stage power breakouts, and modular power systems used in touring and event environments.

Featuring a rugged metal housing and solder-type terminals, the XC-P19PMALE provides secure electrical connections, excellent current transfer, and long-term reliability. It is well suited for technicians and integrators building custom power cables where durability, safety, and consistent performance are critical.

• Rugged die-casted aluminum alloy shells, with black non-conductive finish, making cable assembly most convenient with two-shell design.
• Hard gold-plated copper alloy machined contact, for both solder and crimp type, ensures the excellent conductibility.
• Non-conductive first grade Bakelite provides greatest insulation.
• Integral-compressed strain relief handles wide range of cable sizes.
• Extended ground contact at female side ensures "mate first, break last" for safety operation.
• Compatible with Socapex "419", Veam "VSC" connectors and LK Connectors.
• UL / cUL listed.
• Rated Current: AC 20A 250V
• Operating Limit Voltage: AC 400V
• Insulation Resistance: > 2000M Ohms
• Contact Resistance: < 3M Ohms
• Rated Voltage: AC 1500V
• Terminal Wear: 5000+ connection
• Hipot Test: 1800 VAC / Min.
• Operating Temperature: -40 to 85 Deg C
