Specifications

Features:

• 18x 12-Watt Hex LEDs
• 63 built-iin Color Macros
• Locking power in and out connections
• Heavy duty metal construction with Gel Frame included
• ETL Approved
• With Wired Digital Communication Network

Optical:

• Light Source: 18 x 12-Watt Hex (RGBAW + UV) LEDs
• LED Life Expectancy: 50,000 Hrs
• Refresh Rate: 3.6KHz
• 25-degree beam angle

Technical Features:

• 63 Built In Color Macros
• 5 Operational Modes: Manual Color; Color Fade; Auto Program; Sound Active, and DMX modes.

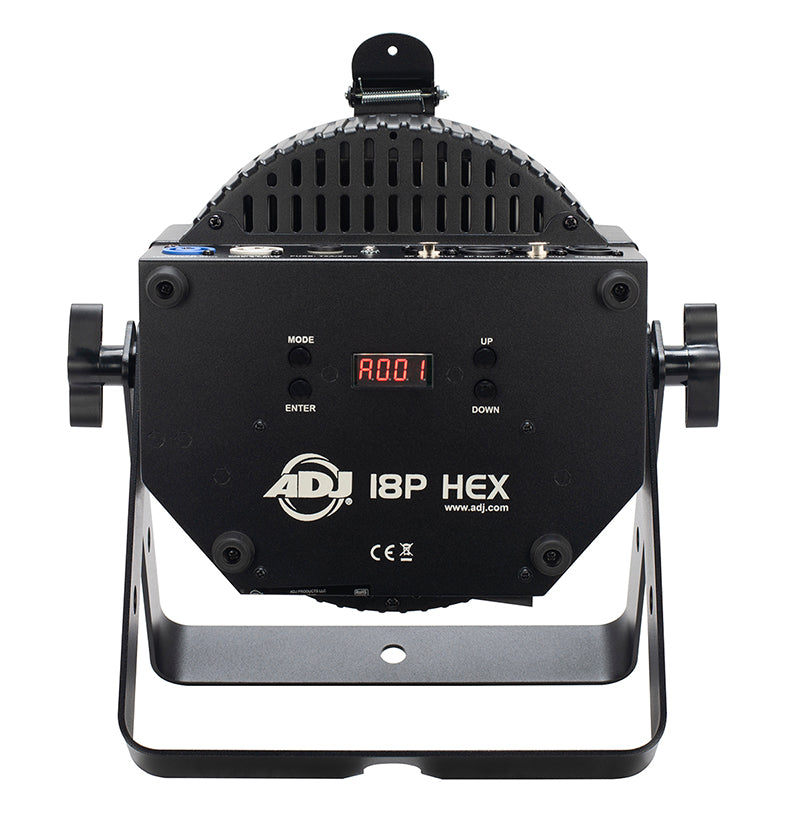

• 4-button Digital Display for easy navigation
• Electronic Dimming 0 – 100%
• Flicker Free

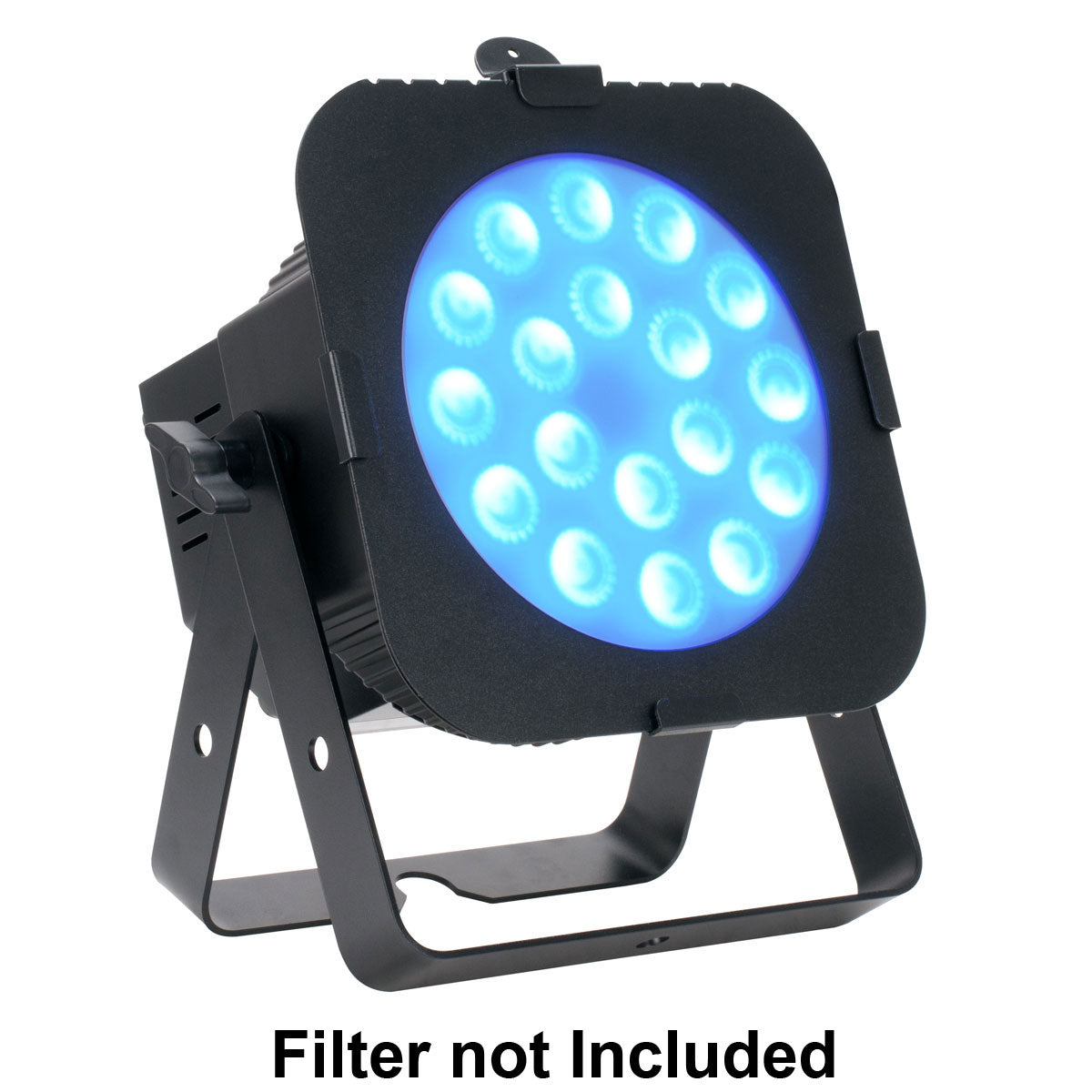

• Gel Frame Included
• Includes a scissor yoke to be hung, or set on the ground

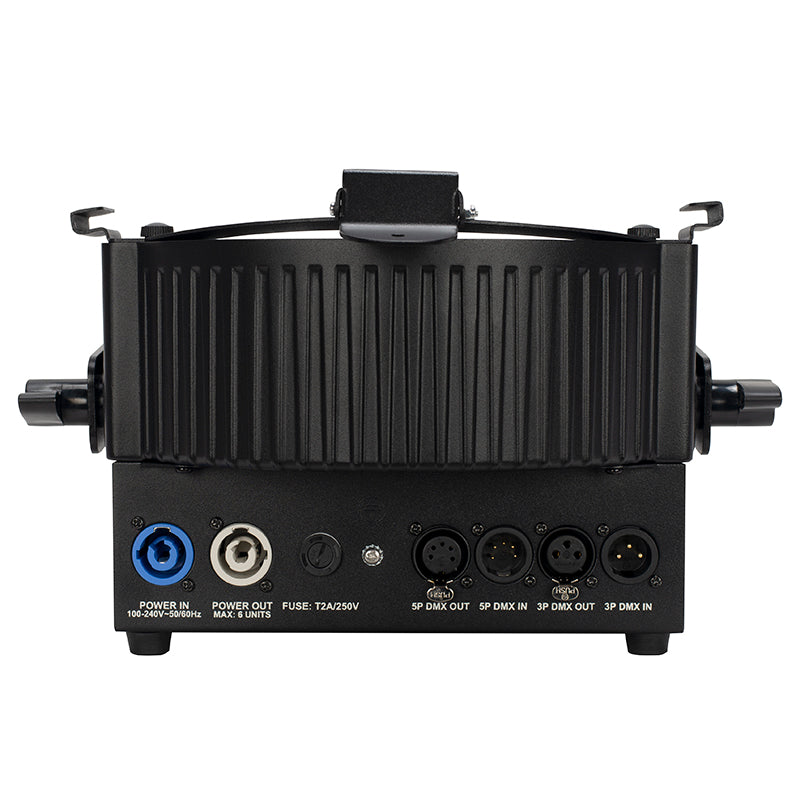

Connections:

• Power Input: Locking Power IN socket
• Power Pass through: Locking Power OUT socket (Daisy chain up to 7 units @120V, 16 units @ 230V)
• Control: 3-pin and 5pin In/Out DMX

Control:

• 4 DMX Channel Modes: 6, 7, 8 and 12
• Compatible with Dotz Par RF (Sold Separately)
• On Board control
• With Wired Digital Communication Network
• DMX, RDM (Remote Device Management)

Electrical:

• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)

Physical:

• Dimensions (LxWxH): 11.96” x 6.88” x 13” / 304 x 174.8 x 330.4mm
• Weight: 12.9 lbs / 5.9 kg.
• Metal Black Housing

Certifications:

• IP 30: Dry area, No liquids
• cETLus Approved (Control #4010765)

Whats Included:

• (1) 1 Meter, Locking Power to Edison Cable

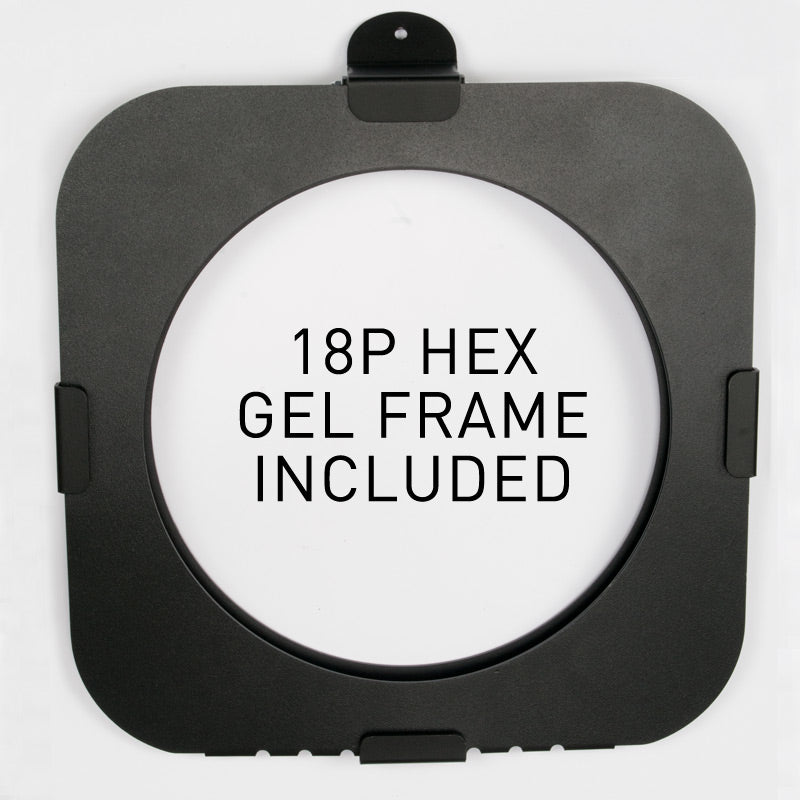

• (1) Gel Frame
• Owner’s Manual

Optional Accessories:

• Dotz Par RF (Remote Control)
