Features:
Mackie relentlessly pursues the perfection of the compact mixer. VLZ4 ups the level of sonic quality at every level, featuring Mackie's flagship Onyx mic preamps and premium components from front to back. The result is the most rock solid, the most easy to use and, yes, the best sounding compact mixer ever created.Now featuring Mackie's flagship Onyx mic preamps, the comprehensive Mackie VLZ4 line delivers the proven feature set, high-headroom/low-noise design and "Built-Like-A-Tank" construction that created an industry more than 25 years ago.From every input to every output, VLZ4 is optimized to deliver professional-quality results each and every time.
FEATURES:The very definition of an analog compact mixer, Mackie VLZ4 is the original do-it-yourself and be sure it sounds great mixing solution.
Fidelity:
- Onyx Preamps:
- Ultra-wide 60dB gain range
- 128.5 dB dynamic range
- +22 dBu line input handling
- Extended frequency response
- Distortion under 0.0007% (20Hz - 20kHz)
Clean:
-
High Headroom & Low Noise: Strict attention to component quality has led to innovations like our custom M80 op-amps and class-leading negative summing bus architecture.
Reliable:
- Built Like A Tank:
- Sealed rotary controls resist dust and grime
- "Built-Like-A-Tank" rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls
Range:
-
Comprehensive & Proven: Mackies VLZ4 line is extremely comprehensive, offering mixers of every channel count, every price point, for every application. From the ultra-compact 402VLZ4 for desktop applications to the tour-friendly 3204VLZ4, you can be sure there is a VLZ4 mixer with the right feature set for your needs.
SERIES LINE-UP:Mixers of every channel count, every price point, for every application.
16-Channel Compact Mixer
- 10 boutique-quality Onyx mic preamps
- Ultra-wide 60dB gain range
- 128.5 dB dynamic range
- +22 dBu line input handling
- Extended frequency response
- Distortion under 0.0007% (20Hz – 50kHz)
- Phantom power for studio condenser mics
- Improved RF rejection perfect for broadcast applications
- Phantom power for condenser mics
- 16 high-headroom line inputs with +4/-10 operation control
- 4 aux sends, level, pan and PFL solo on each channel
- 3-band EQ (80Hz, 2.5kHz, 12kHz)
- 18 dB/oct 75Hz low-cut filter on mic input channels
- 60mm long-wearing log-taper faders
- 4 stereo returns for connecting FX processor or other stereo source
- ALT 3/4 stereo bus for added routing flexibility
- Control room / phones source matrix
- High-resolution 12-segment stereo meters
- Sealed rotary control resist dust and grime
- “Built-Like-A-Tank” rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
- Rack-mountable design using optional rack ear kit
- Multi-voltage power supply for worldwide use

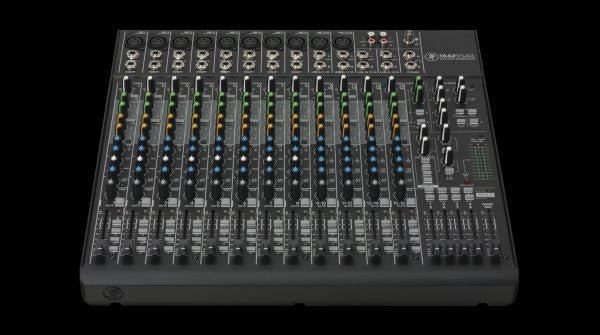

| Model: |
1642VLZ4 |
| Manufacturer: |
Mackie |
