American DJ 15 HEX BAR IP LED Linear Wash Fixture (RGBWA+UV, IP65) The ADJ 15 HEX BAR IP is an IP65 rated multi-functional wash linear fixture for indoor or outdoor use. It features 15x 12W HEX LEDs (6-IN-1 – RGBWA+UV), 5 individually controlled sections with Zone Control and a 25-degree...

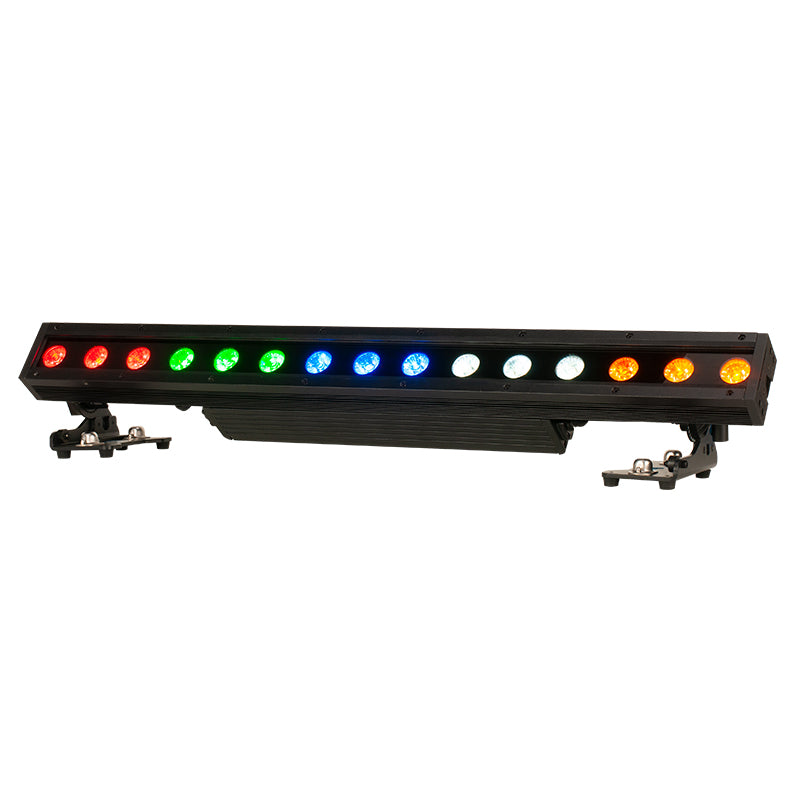

American DJ 15 HEX BAR IP LED Linear Wash Fixture (RGBWA+UV, IP65)
The ADJ 15 HEX BAR IP is an IP65 rated multi-functional wash linear fixture for indoor or outdoor use. It features 15x 12W HEX LEDs (6-IN-1 – RGBWA+UV), 5 individually controlled sections with Zone Control and a 25-degree beam angle. With an all metal, black housing and IP65 outdoor rating, its protected from elements - dust, sand, moisture and liquids. It includes a removable diffusion filter to change the beam angle.
On the rear panel it features Seetronic, IP65 rated, 5-pin XLR, DMX In/Out connections, and Seetronic IP65 rated, power locking In/Out connections to daisy chain power and data. Both the DMX and power connections are fitted with rubber protective covers. An OLED display with touch buttons helps to easily navigate the functions of the fixture.
The 15 HEX BAR IP is flicker free for film and broadcast, and has multiple DMX control modes and dimming modes.
- IP65 rated – protects from dust, sand, moisture and liquid
- All metal construction with black housing
- Includes heavy duty bracket
- Sure-lock locking bracket system (securely locks every 10-degrees)
- Flicker free for film and broadcast
- 63 Built-in Color Macros
- Linear variable white temperature control
- LED: 15x 12W HEX (6-In-1) RGBWA+UV LEDs (50,000 hr.)
- Beam Angle: 25-degrees
- LUX: 14541 @ 1M, 582 @ 5M (Full On No UV); 14517 @ 1M, 581 @ 5M (Full On)
- Display: OLED display with function buttons
- Data In/Out: Seetronic IP65 rated, 5-pin DMX In/Out (with rubber protective covers over connections)
- Power In/Out: Seetronic IP65 rated Power locking In/Out (with rubber protective covers over connections)
- Daisy chain up to 6 fixtures @ 120V; 15 fixtures @ 240V
- All Metal Heavy-Duty Housing: Built To Last In Outdoor or Touring Applications
- Multiple DMX channel modes
- Built-in internal programs
- 5 individually controlled sections with Zone Control
- 0-100% Dimming + smooth 16-bit Dimming
- 6 Dimming Curve ModesControl Mode: DMX512, RDM
- With Wired Digital Communication Network
- Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
- Power consumption: 130W max
Dimensions & Weight:
- Dimension (LxWxH): 36” x 8” x 7.75” / 915x203x200mm
- Weight: 20 lbs. / 8.9 kg.
What's In The Box:
- 1x Seetronic IP65 locking power cord
- 1x Frost/Diffusion Filter
- 1x Glare Shield
- 2x Omega Brackets
