Specifications

Light Source:

• Lamp: Osram Sirius HRI 100W Long Life (6,000 hrs.) Discharge
• Color Temperature : 9000K
• CRI: 60

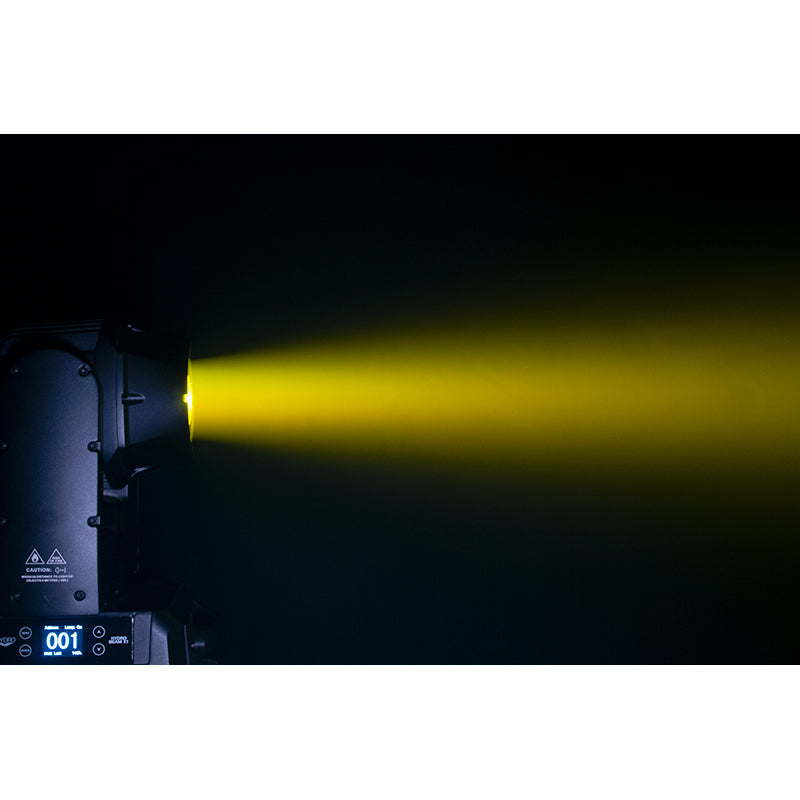

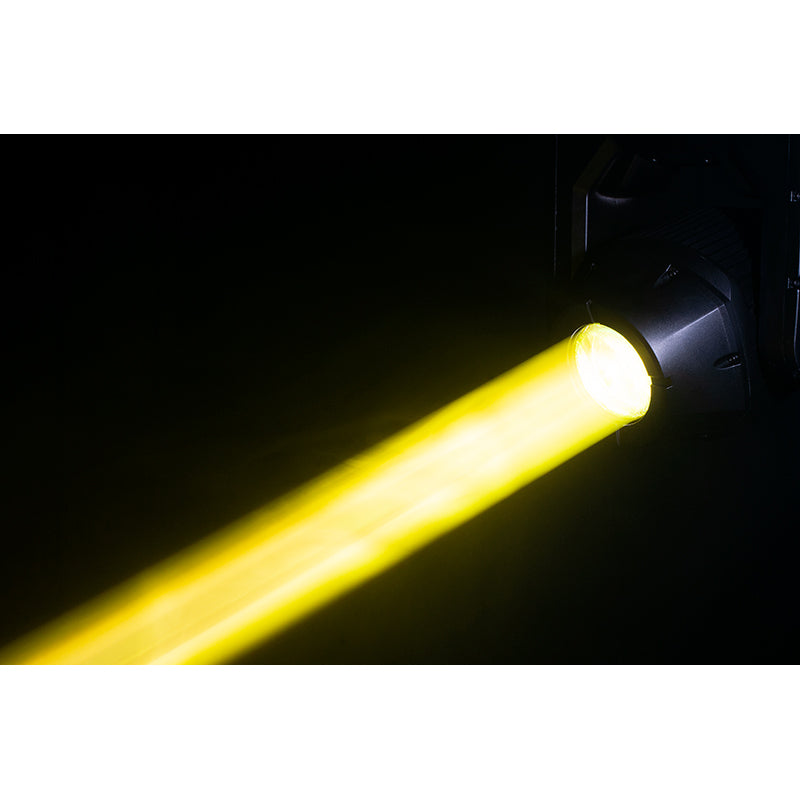

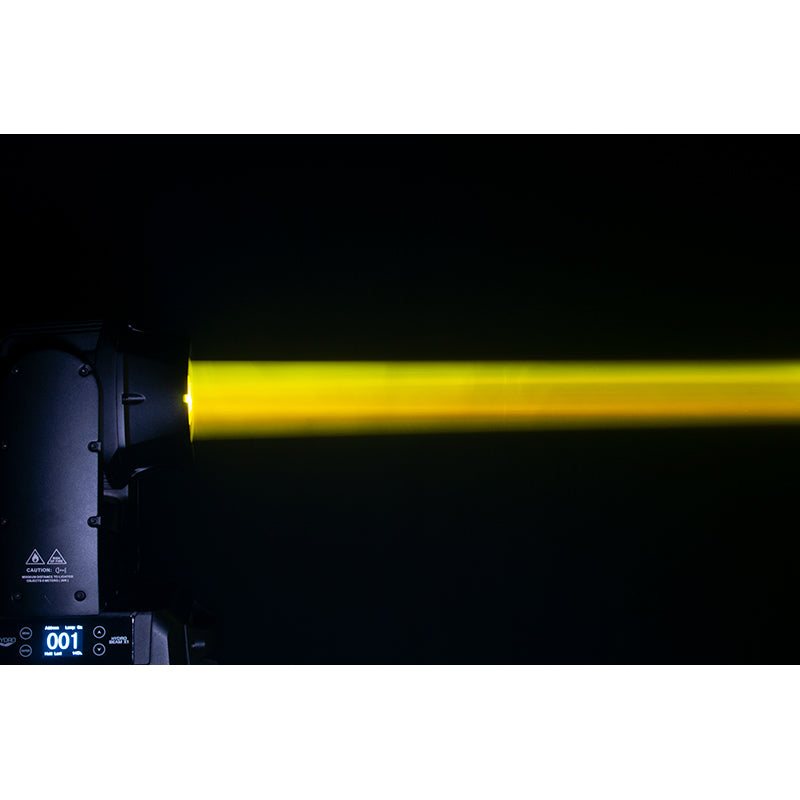

• Beam Angle: 3-degrees

Features:

• IP65 rated – protects from dust, sand, moisture, liquid
• Independent frost filter (wash effect)
• 0-100% smooth dimming
• Various strobe speeds
• Includes omega brackets
• Wifly EXR wireless DMX
• Antenna Range: 98.42ft (30m)

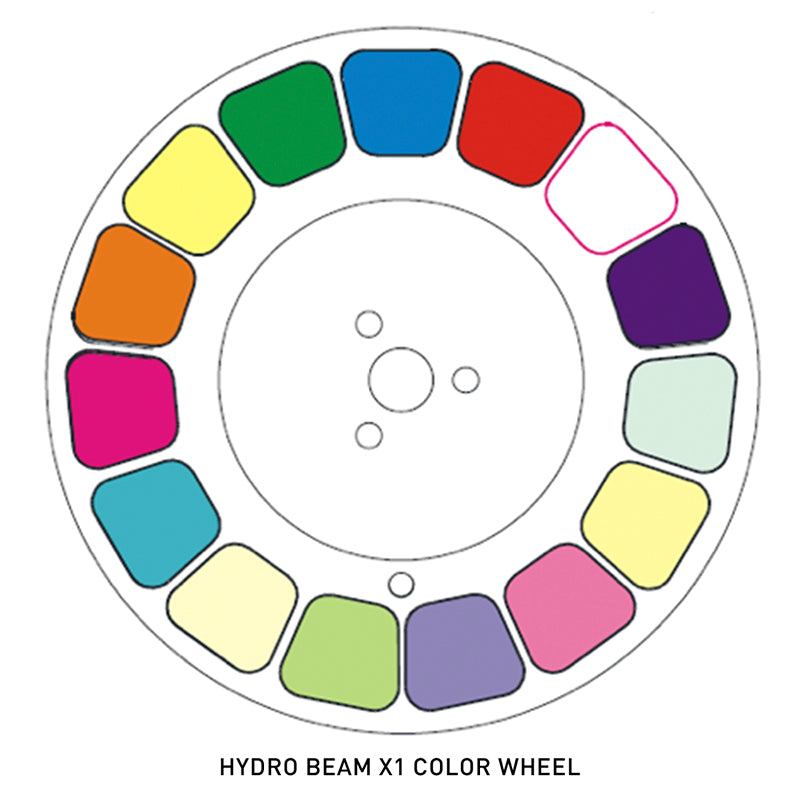

Color Wheel:

• 12 colors + CTB UV + open

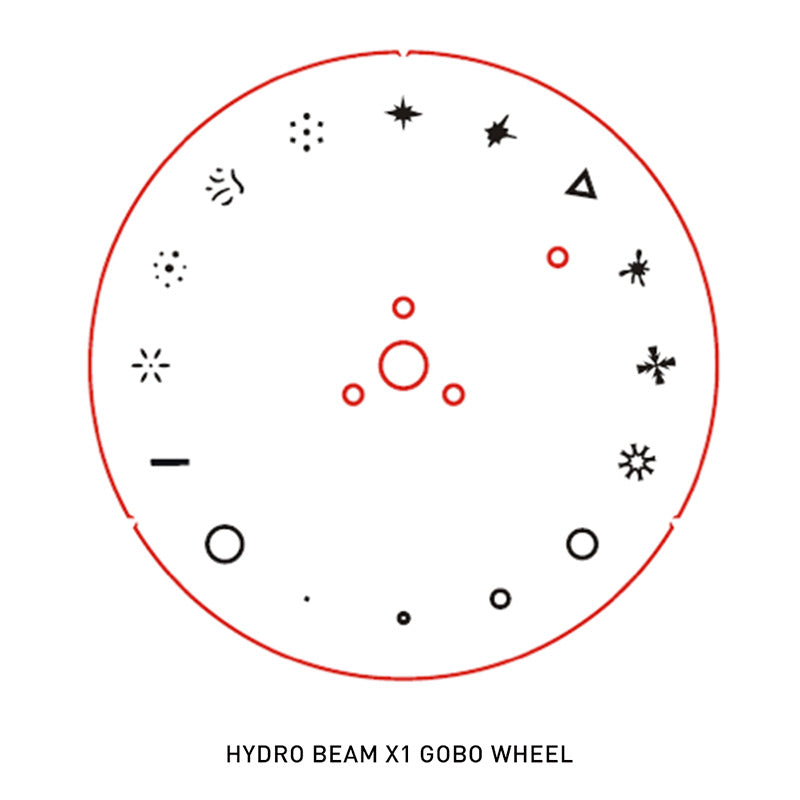

GOBO Wheel:

• 1 metal GOBO Wheel with 11 GOBOs, 4 GOBO reducers + open

Prism Wheel:

• 16-facet circular prism (rotates in either direction)

Construction:

• Display: OLED display

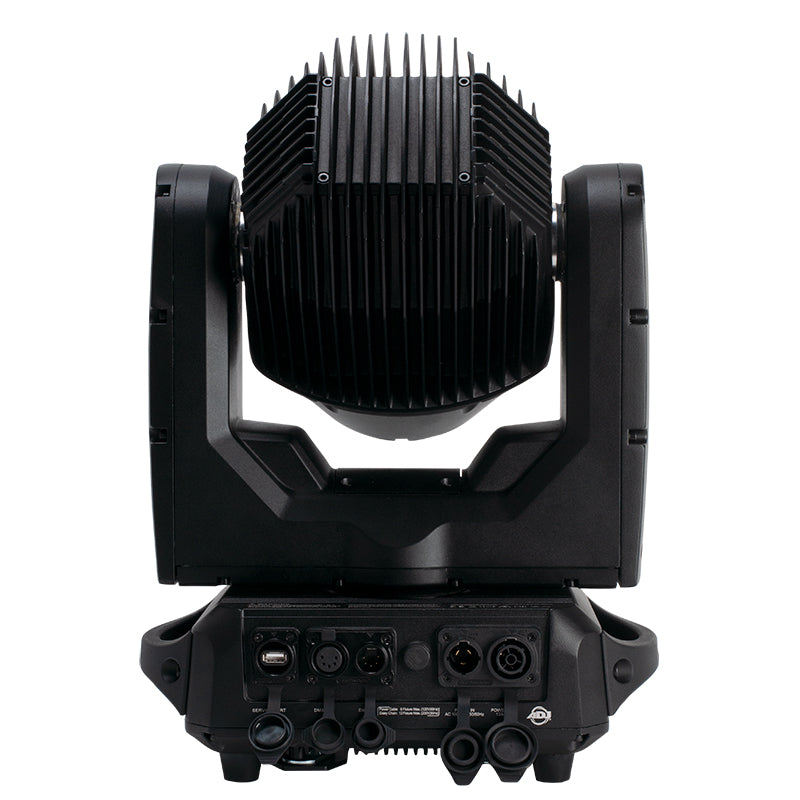

• Data In/Out: 5-pin DMX IP65 (with rubber protective covers over connections)
• Power In/Out: locking IP65 (with rubber protective covers over connections)
• Protection Rating: IP65
• All metal case design

Control:

• 2 DMX Channel Modes: 11/14 Channels
• Control Mode: DMX512, RDM (Remote Device Management)
• Firmware Upgrade: Update via

IP65 USB port (with rubber protective covers over connections)

• With Wired Digital Communication Network

Pan/Tilt:

• Pan/Tilt: 540/270

Electrical:

• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
• Power Linking: 6 units @ 120V; 12 units @ 240V
• Power consumption: 235W max
• Min/Max Ambient Temperature: -10ºC ~ 40ºC

Dimensions Weight:

• Dimension (LxWxH): 13.2”x 8.3” x 16.9” / 336 x 210 x 430mm
• Weight: 36 lbs. / 16.3kg.

Operating Temperature:

Minimum operating temperature: 14°F (-10C)

Maximum operating temperature: 113°F (45C)

Approvals

cETLus Approved (Control #4000358)
