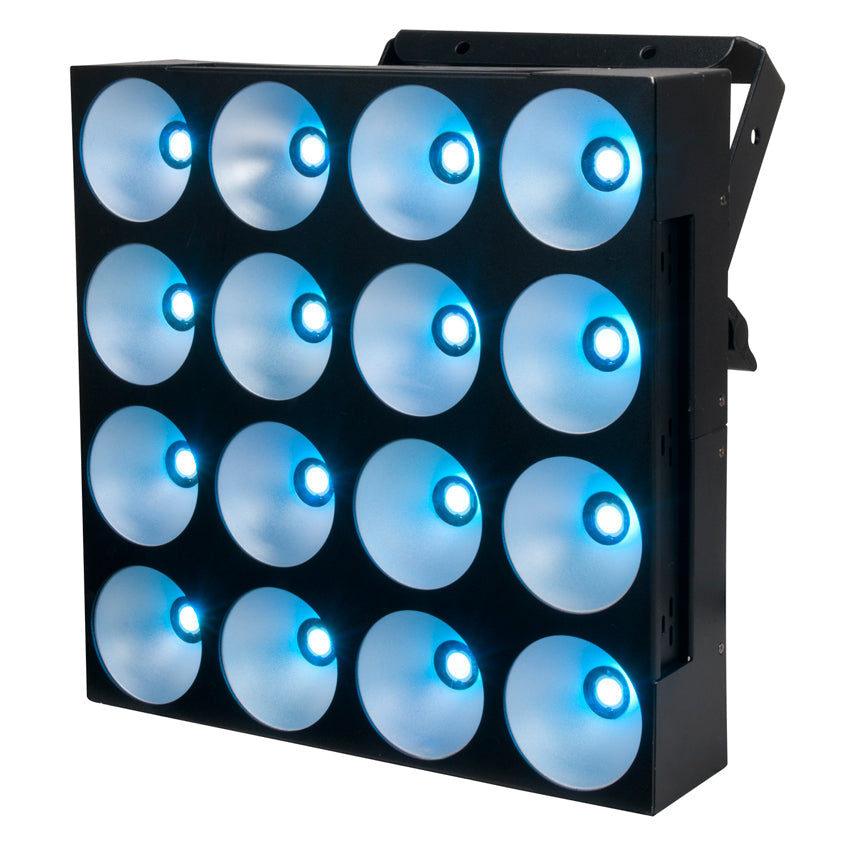

Utilizing Chip On Board technology the Dotz Matrix light fixture creates smooth and rich RGB color mixing and can be used as a Wash/Bar or Pixel Mapped for stunning visual effects. Also features 0-100% dimming, color macros and built-in shows. Great for stage lighting, bands, or night clubs.

Specifications

4 x 4 COB LED high output Wash/Blinder Matrix panel

COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color

Use as Wash/Blinder or Pixel Mapped matrix for a stunning visual effect

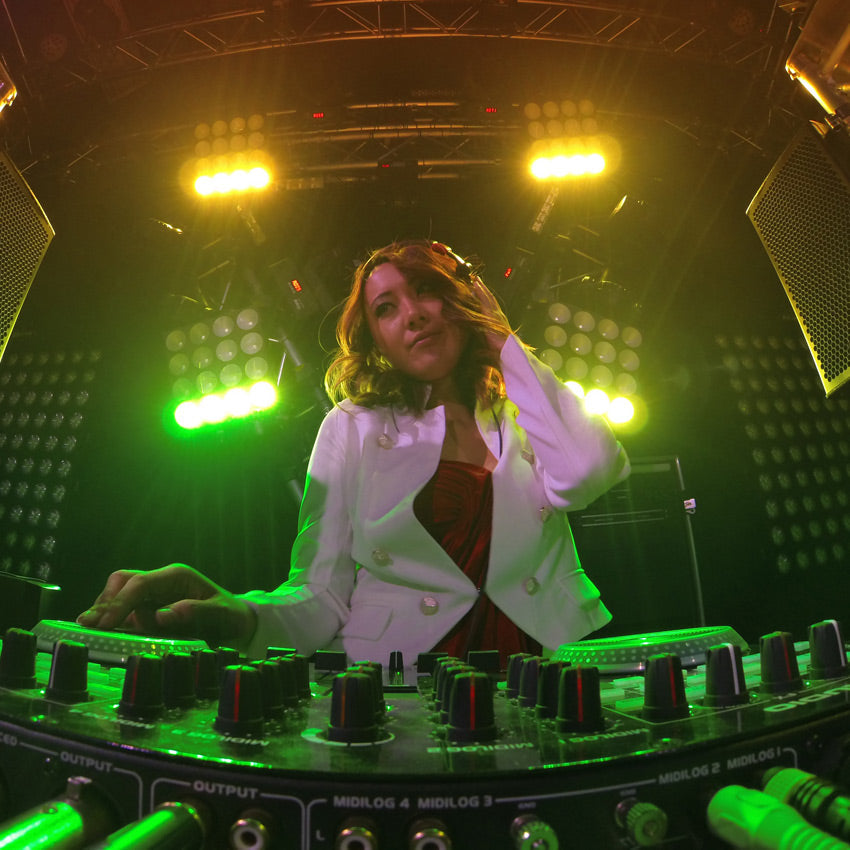

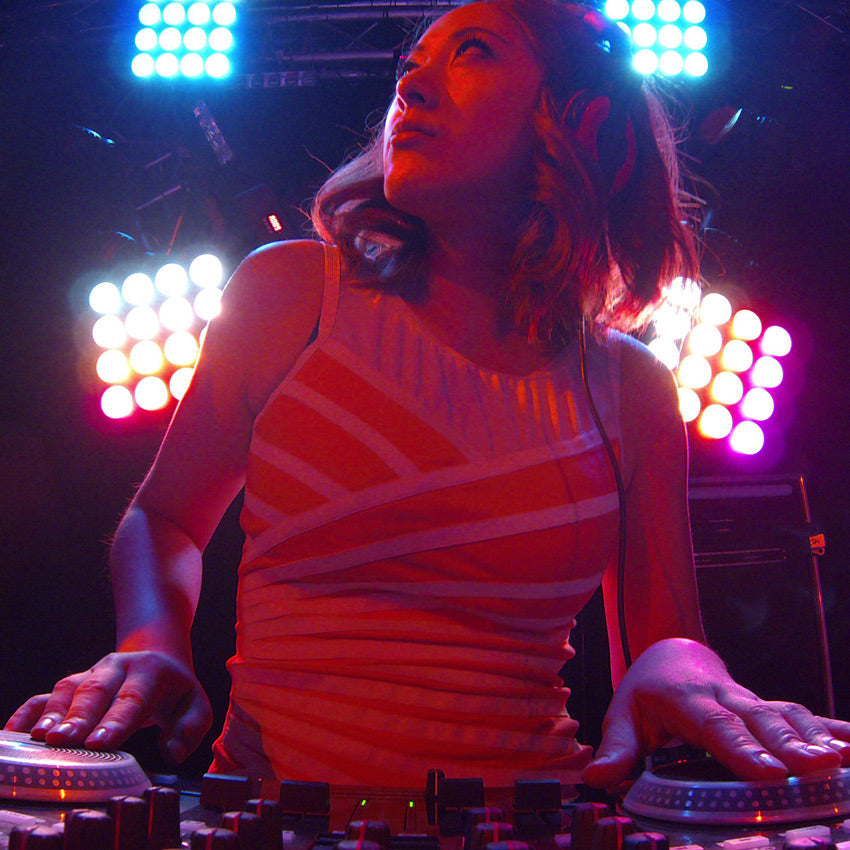

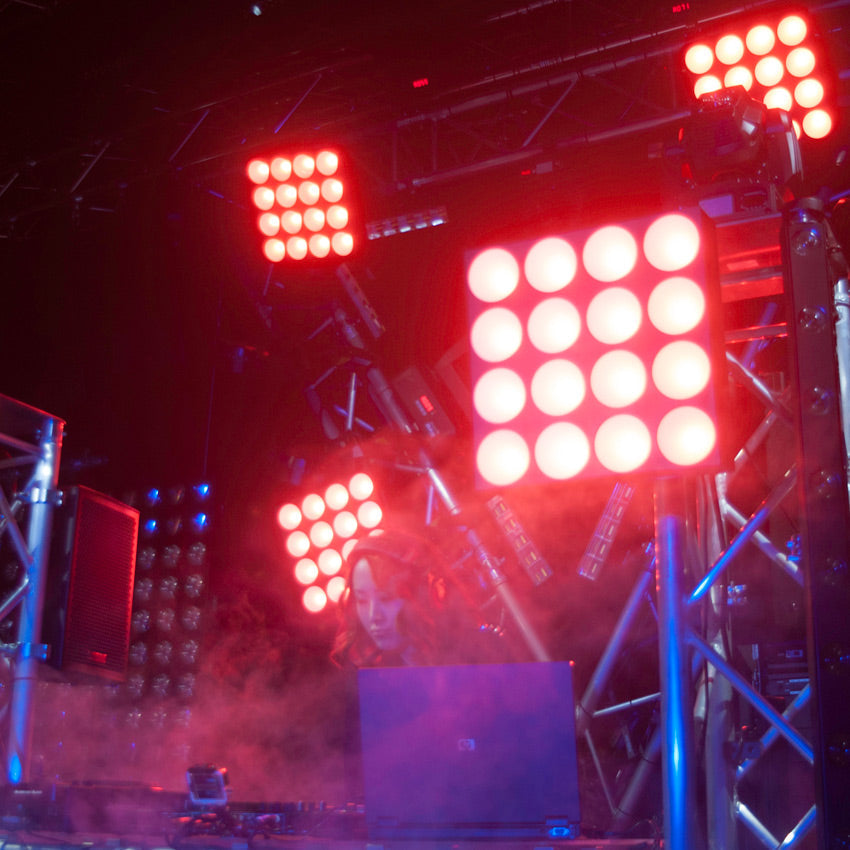

Great for Stage Lighting, Bands or Night Clubs

5 DMX channel modes: 3, 6, 7, 48 53 channel

Individual Pixel controllable in 48 53 channel DMX modes

4x Pixel Flip options changes pixel orientation

4x Operational modes: Auto, Sound Active, Manual RGB Dimmer, Static Color, and DMX-512

RDM Compliant (Remote Device Management)

Built-In preset colors and programs

Flicker Free operation (No flickering on camera)

LED pulse and strobe effect

Electronic Dimming: 0 - 100%

5 selectable Dim Curves (Standard, Stage, TV, Architectural Theatre)

60-degree beam angle

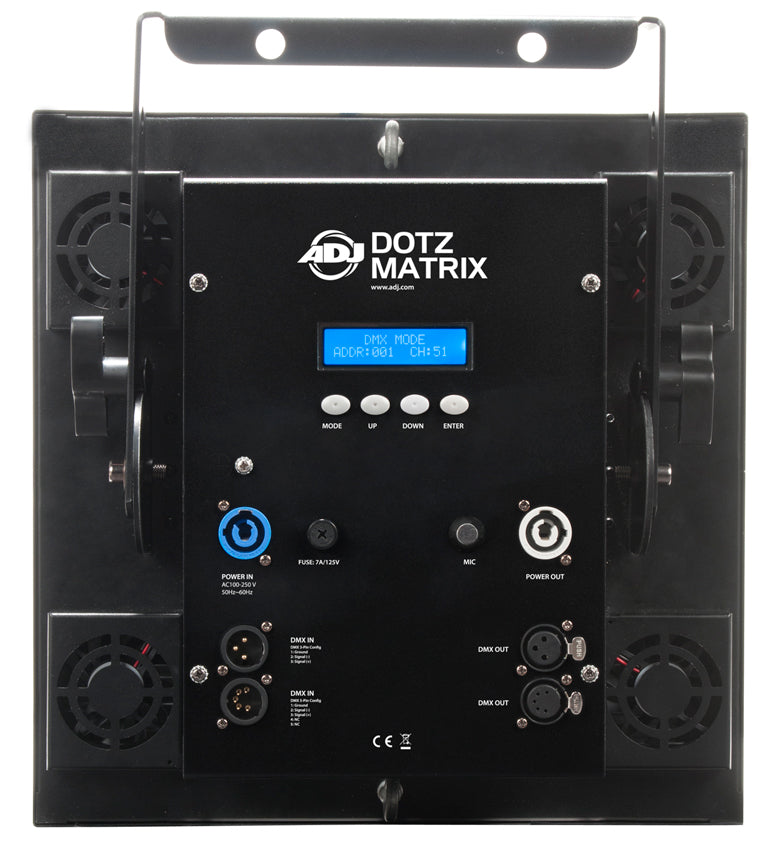

3 5-pin XLR chassis mount connectors for DMX linking

With Wired Digital Communication Network

Power AC IN/OUT to daisy chain power (up to 5 Dotz Matrix's @ 120V and 9 Dotz Matrix's @ 230V on one 20 amp circuit )

Power Draw: 430W total (All LED's @ Full)

4-button DMX LCD display

Single yoke allows fixture to be mounted

Fan Cooled

Light Source: 16x 30-Watt COB TRI LEDs (RGB: 3 in 1)

2630 LUX @2M; 730 LUX @4M (60-degree beam)

Refresh Rate: 3.6KHz

Auto sensing power supply: AC 100V/60Hz - 240V/50Hz

Dimensions (LxWxH): 13.75” x 6.75” x 14.75”/ 345 x 170 x 370mm

Weight: 18 lbs. / 7.8 kgs.

ETL Approved
