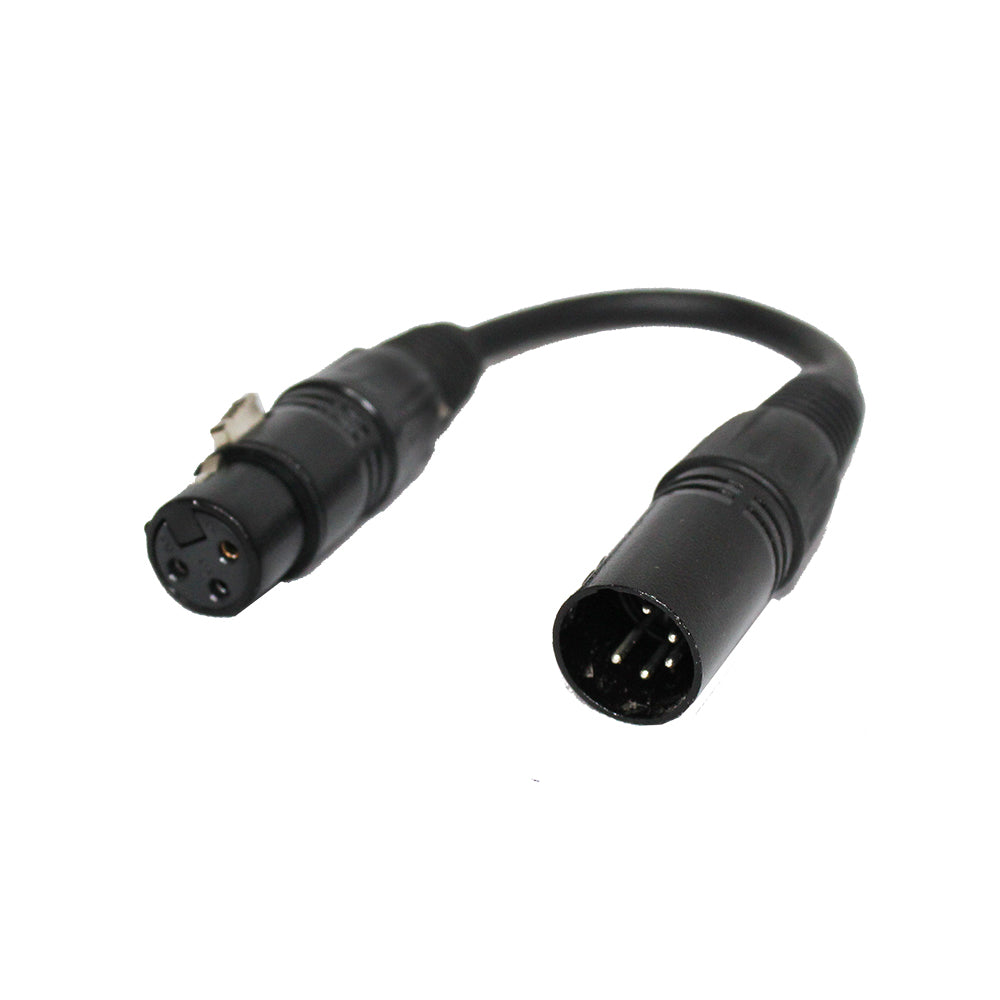

The ProX XC-DMX5M3F 6" Male XLR-5 to Female XLR-3 DMX Cable Adapter cable is ideal for DMX connection applications where a device with a male XLR-5 DMX output/input needs to be connected to a device with a female XLR3 DMX output/input. 22AWG Oxygen-Free Copper (OFC) conductors for maximum signal transfer.

We know cables are not just cables they are what protects your signal from being altered. Uncompromised signal power with precise data transmission is paramount for quality DMX control operations.  Our DuoFoil and braided OFC Copper Compact shield blocks noise and protects data transfer.

Bending &Twisting are no match for our high-performance tour-grade DMX cables. They're designed to provide years of dependable service and outlast every other cable on the market! Complete Coil technology demands consistent weave tolerances to create precise and accurate data transmission. This is the most important part of the design and greatly affects performance.

Technical Specifications

• Polyethylene insulation
• Twisted Pair Data Cable
• Polyethylene inner jacket
• Duofoil® (100% coverage)
• Cotton plus a tinned copper braid shield (85% coverage)
• PVC jacket for durability
• Nominal Characteristic Impedance: 110 Ohms
• Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/ft
• Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
• Nominal Velocity of Propagation: 66%
• Nominal Delay: 1.6 Nanoseconds per foot
• Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
• Nominal Outer Shield DC Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
• Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
• Maximum Recommended Current: 2.1 Amps per conductor @ 25 degrees C
• Operating Temperature Range: (-30 degrees C To + 75 degrees C)
