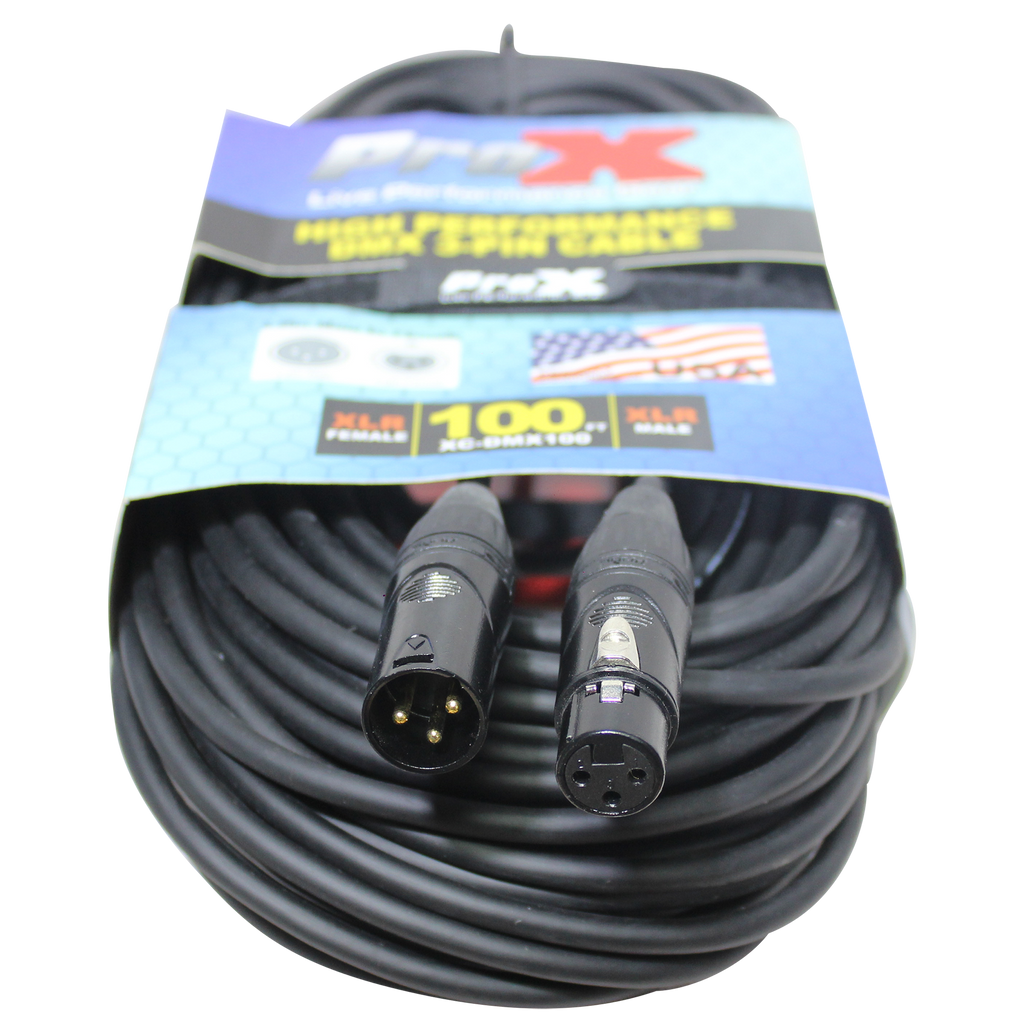

ProX 100FT 3PIN DMX High Performance Cable

$120.00 $60.00

ProX XC-DMX03 100FT 3PIN DMX High Performance pro lighting Cable Description ProX XC-DMX100 is ideal for professional touring and live sound applications where a device with a male DMX output/input needs to be connected to a device with a female DMX output/input. 22AWG Oxygen-Free Copper (OFC) conductors for maximum signal...

Qty:

ProX XC-DMX03 100FT 3PIN DMX High Performance pro lighting Cable

Description

ProX XC-DMX100 is ideal for professional touring and live sound applications where a device with a male DMX output/input needs to be connected to a device with a female DMX output/input. 22AWG Oxygen-Free Copper (OFC) conductors for maximum signal transfer.

ProX cables provide audiophiles with amazing signalÿcables. We know cables are not just cables, they are what protects your signalÿfrom being altered. Uncompromised signal power, frequency handling, and sound reproduction is what we are passionate about.

- ProXÿXC-DMX100 is ideal for professional touring and live sound applications where a device with a male DMX output/input needs to be connected to a device with a female DMX output/input.

- 93% braided OFC Copper Compact shield to reduce noise and protect pure sound transfer.

- Compact cable diameter to decrease eddy currents.

- Bending, Twisting, are no match for our high performance tour-grade audio cables. They're designed to provide years of dependable soundreproduction and outlast every other cable on the market! Complete Coil technology demands consistent weave tolerances to create precise accuracy and detailed clarity. This is the most important part of the design and greatly affects performance.

Specifications:
- Gold Plated all metal XLR connectors for excellent durability and superior signal transfer.
- 22 AWG x 2 Oxygen-Free Copper (OFC) conductors
- Extra Durable & Flexable long life construction
- ProX Limited Lifetime Warranty - Protect Your Sound!


Features

? Polyethylene insulation!
? Twisted pair
? Polyethylene inner jacket
? Duofoil? (100% coverage)
? Cotton plus a tinned copper braid shield (85% coverage)
? PVC jacket
? Nominal Characteristic Impedence: 110 Ohms
? Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t
? Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
? Nominal Velocity of Propagation: 66%
? Nominal Delay: 1.6 Nanoseconds per foot
? Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
? Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
? Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
? Maximum Recommended Current: 2.1 A mps per conductor @ 25 degree C
? Operating Temperature Range: (-30 degrees C To + 75 degrees C)


To Fit

DMX to DMX, 3PIN


UPC
22099559795
