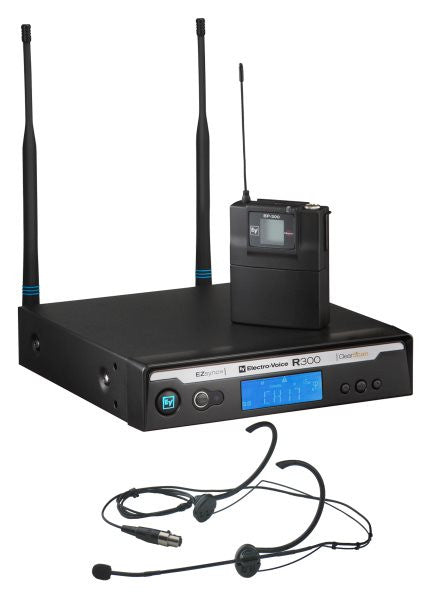

Electro Voice R300EC Headworn System in case

Previous Product Next Product

$340.00 $339.00

Features: The R300-E is a robust UHF wireless bodypack system, suitable for any application where the convenience of a wireless headworn microphone is required. The system's BP-300 rugged metal bodypack transmitter is simple to use, and is powered by two AA batteries. The system's light-weight, double-ear hook HM3 headworn microphone...

Product Description

Features:

The R300-E is a robust UHF wireless bodypack system, suitable for any application where the convenience of a wireless headworn microphone is required. The system's BP-300 rugged metal bodypack transmitter is simple to use, and is powered by two AA batteries. The system's light-weight, double-ear hook HM3 headworn microphone is comfortable for extended daily use, and provides the user the convenience of hands-free presentations or performances. The receiver's dual antenna diversity helps avoid signal dropouts, and its durable metal frame and chassis can either be used on a tabletop, or rack-mounted with optional rack mounting hardware.

Features:

ClearScan automatically finds the clearest channel

EZsync one-step channel setup

HM3 omni-directional microphone

14 hour battery life from two AA alkaline

Rugged metal transmitter

Metal receiver chassis with optional rack mount

Specifications:

Frequency Spread : 516.000 MHz - 532.000 MHz

NTSC TV Channel Orientation : 21(Lower ) to 24(Upper)

Antennas: Flexible TNC 1/2 Wave

Audio Frequency Response: 80 Hz - 18kHz +/-2dB

Balanced Line Level Output (RMS Adjustable): 10 - 100 mV

Battery Life: 14 hours with (2) AA alkaline typical

Case Material: metal

Connector Type: 1/4 inch unbalanced, 3-pin XLR balanced

Controls: on/off, Set, Up, Down, Sync

Distortion (@ 1 kHz, 40 kHz deviation): Less than 1.0, 0.4 typical %

Diversity: True Antenna

Dynamic Range: greater than 95 dB

Element: HM-3 Omni-directional headworn

Number of Channels: 32 per band, 8 Simultaneous

Operating Temperature Range: 5?ø - 45?ø C (41?ø - 113?ø F)

Power Requirement: 12-16 VDC, 500 mA max

Power Supply: 12 VDC, 500mA max

Receiver Type: Synthesized PLL

RF Frequency Range: 16 MHz

RF Output: 8 mW typical

RF Sensitivity (12 dB SINAD): less than 1.0 uV

Signal-to-Noise Ratio (A-weighted): greater than 100 dB

Squelch: Tone code plus Amplitude

Model:	R300EC
Manufacturer:	Electro Voice
